Производитель: APC

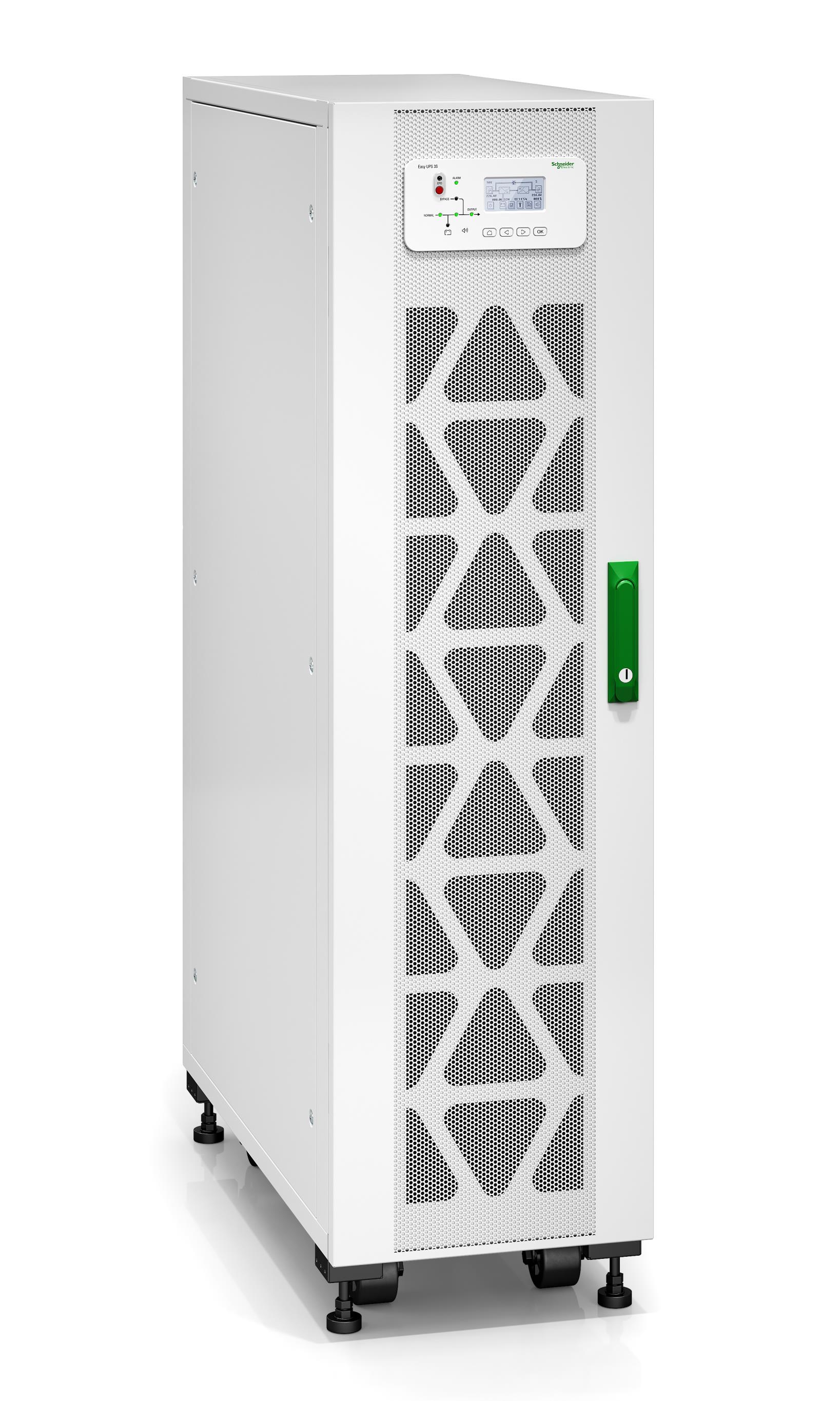

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W

€7410,32 с налогом

Артикул: ST06736979

Код производителя: E3SUPS20KHB

Сайт производителя

гарантия: 24 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	3	€7410,32 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3

UPS стабилизаторы напряжения	20000
Тип	Double Conversion Online

Description	APC EASY UPS 3S 20 KVA 400 V 3:3 UPS FOR INTERNAL BATTERIES
CountryofOrigin	CHINA
TariffHeading	85044030
PictureLocation	https://www2.f9baltic.com/productimages/big/E3SUPS20KHB.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/E3SUPS20KHB.jpg
AdditionalPictures	E3SUPS20KHB_2.jpg
Weight	157.670000
Height	1660.000000
Length	580.000000
Width	1030.000000
BoxSize	0
PalletSize	0
Form factor	Tower
UPS devices and accessories	Yes

UPS topology	Double-conversion (Online)
Output power capacity	20 kVA
Output power	20000 W
Waveform	Pure sine
Input operation voltage (min)	304 V
Input operation voltage (max)	477 V
Input frequency	45/65 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	37 A
Number of input phases	3
Number of output phases	3
Input power factor	0.99
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	3%
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	220 V
Number of batteries supported	3
Form factor	Tower
Product colour	White
Display type	LED
International Protection (IP) code	IP20
Certification	CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	RoHS
Width	380 mm
Depth	928 mm
Height	1400 mm
Weight	122 kg
Package width	563 mm
Package depth	1014 mm
Package height	1640 mm
Package weight	158 kg
Quick installation guide	Yes
Harmonized System (HS) code	85078000
Output voltage	400 V
Description
Description	APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Width: 380 mm, Depth: 928 mm, Height: 1400 mm. Output voltage: 400 V

Характеристики

1
Details 2
Details 3

UPS стабилизаторы напряжения	20000
Тип	Double Conversion Online

Description	APC EASY UPS 3S 20 KVA 400 V 3:3 UPS FOR INTERNAL BATTERIES
CountryofOrigin	CHINA
TariffHeading	85044030
PictureLocation	https://www2.f9baltic.com/productimages/big/E3SUPS20KHB.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/E3SUPS20KHB.jpg
AdditionalPictures	E3SUPS20KHB_2.jpg
Weight	157.670000
Height	1660.000000
Length	580.000000
Width	1030.000000
BoxSize	0
PalletSize	0
Form factor	Tower
UPS devices and accessories	Yes

UPS topology	Double-conversion (Online)
Output power capacity	20 kVA
Output power	20000 W
Waveform	Pure sine
Input operation voltage (min)	304 V
Input operation voltage (max)	477 V
Input frequency	45/65 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	37 A
Number of input phases	3
Number of output phases	3
Input power factor	0.99
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	3%
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	220 V
Number of batteries supported	3
Form factor	Tower
Product colour	White
Display type	LED
International Protection (IP) code	IP20
Certification	CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	RoHS
Width	380 mm
Depth	928 mm
Height	1400 mm
Weight	122 kg
Package width	563 mm
Package depth	1014 mm
Package height	1640 mm
Package weight	158 kg
Quick installation guide	Yes
Harmonized System (HS) code	85078000
Output voltage	400 V
Description
Description	APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Width: 380 mm, Depth: 928 mm, Height: 1400 mm. Output voltage: 400 V
