| manufacturer | ATEN |
| product group | KVM-Switches / PC-Shares |

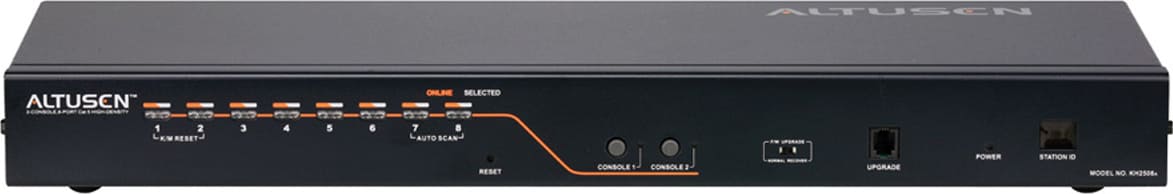

| product type | Cat 5 KVM Switch |
| colour | black |
| weight | 2.81 kg |
| height of packaging (single piece) | 250 mm |
| width of packaging (single piece) | 140 mm |
| depth of packaging (single piece) | 540 mm |
| package weight (single piece) | 3.638 kg |
| gross weight | 3.638 |
| current catalog edition | 24.1 |
| current catalog page | 3.13 |
| technical particularity | Anschluss der PCs über Module (14.01.6022 und14.01.6023) |
| scope of delivery | 1x KH2508A High-Density-KVM-Switch für Kat. 5-Netzwerkkab... |
| height | 44 mm |
| width | 437 mm |
| depth | 163 mm |
| dimensions (hxwxd) | 44x437x163mm |
| material (casing) | Metall |
| quantity of pcs | 8 |
| supported pc-systems | PS/2, USB, SUN |
| switching over hot keys | Tastatur |
| 19" compatible | ja, optional |
| hot plug compatible | ja |
| max. resolution (nominal) | 1600x1200 à 60Hz |
| colour (design profile) | anthrazit |
| analogue console: monitor connection | 1x HD 15pol. BU |
| analogue console: mouse/keyboard connection | 2x 6pol. MiniDIN BU ; 2 x USB BU |
| quantity of analogue consoles | 2 |
| switching over osd | ja |
| mains connection | Kaltgeräte-Anschluss |
| pc: connection over tp | 8x RJ45 |
| Description |
|
