Производитель: BE QUIET!

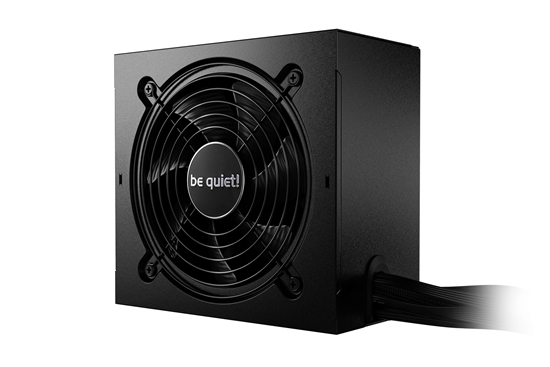

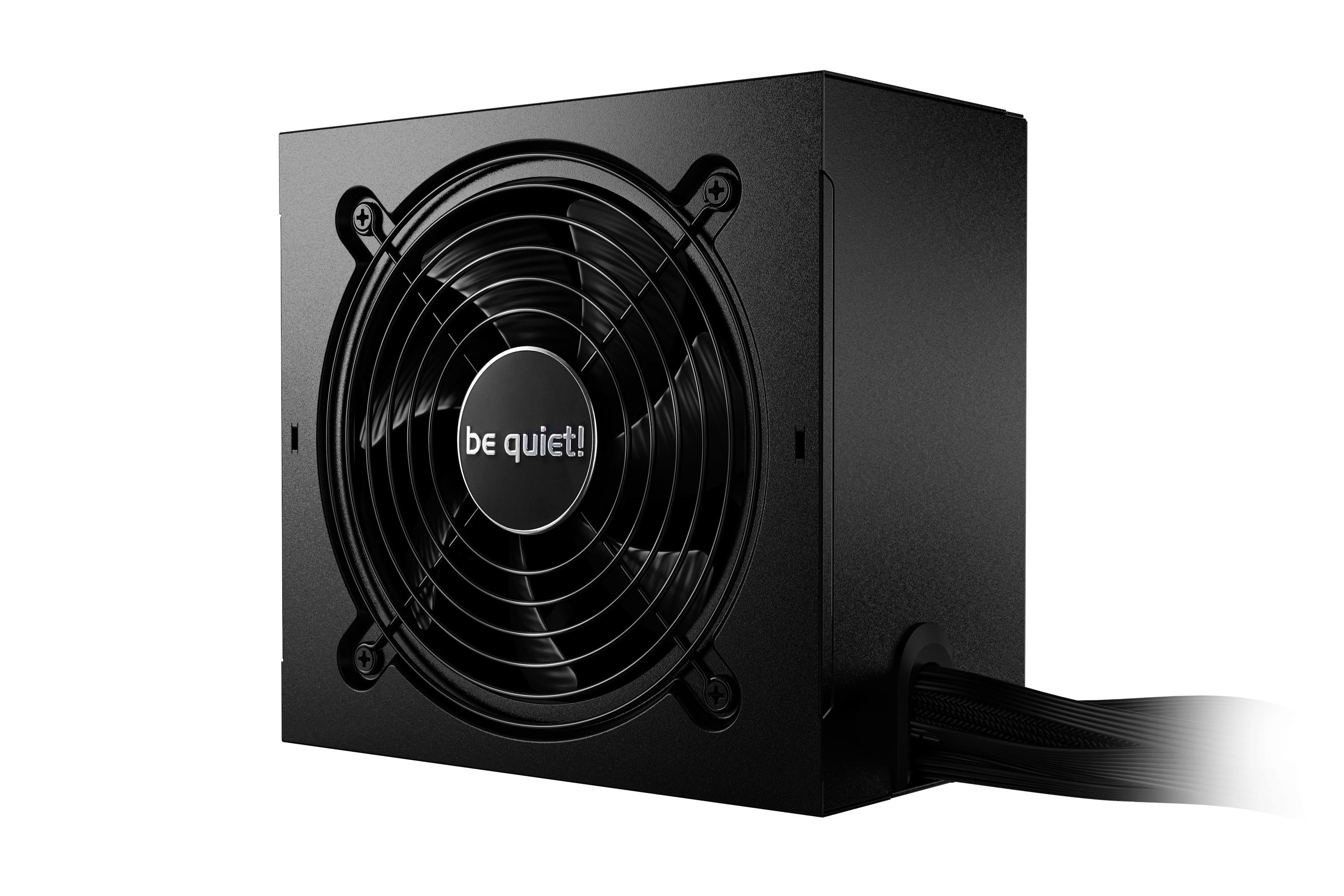

be quiet! System Power 10 power supply unit 850 W 20+4 pin ATX ATX Black

€127,23 с налогом

Артикул: ST06649718

Код производителя: BN330

Сайт производителя

гарантия: 24 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	2	€127,23 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Источник питания	800W - 850W
цвет	Золотой
Form Factor	ATX
цвет	Черный

Total power	850 W
AC input voltage	200 - 240 V
AC input frequency	50 Hz
Input current	5 A
Power factor	0.97
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	849.6 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	22 A
Max output current (+12V1)	40 A
Max output current (+12V2)	36 A
Max output current (+5V)	22 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Hold time	17 ms
Efficiency	93.4%
Power Good signal delay range	100 - 150 ms
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	1
Motherboard power cable length	55 cm
Number of SATA power connectors	6
Number of PATA power connectors	1
SATA power cable length	450,550,570,670,690,790 mm
Peripheral (Molex) power cable length	790 mm
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
PCI Express power cable length	65 cm
CPU power connector (4+4 pin)	Yes
CPU power cable length	60 cm
ATX power connector (20+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	2.52
EPS version	2.92
Noise level	30.7 dB
Bearing technology	Rifle
Mean time between failures (MTBF)	100000 h
Certification	CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia)
Country of origin	Germany
Product colour	Black
Cooling type	Active
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan speed	0 - 2000 RPM
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Width	160 mm
Depth	86 mm
Height	150 mm
Weight	2.14 kg
Manual	Yes
Manual languages	German, English, Spanish, French, Polish, Russian
Package width	220 mm
Package depth	300 mm
Package height	100 mm
Package weight	2.6 kg
Sustainability certificates	CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE
Warranty period	5 year(s)
Screws included	Yes
Noise level (silent mode, <30%)	10.3 dB
Noise level (quiet mode, 50%)	10.4 dB
Noise level (full-load mode, 100%)	30.7 dB
Description
Description	be quiet! System Power 10. Total power: 850 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 450,550,570,670,690,790 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 160 mm, Depth: 86 mm, Height: 150 mm
