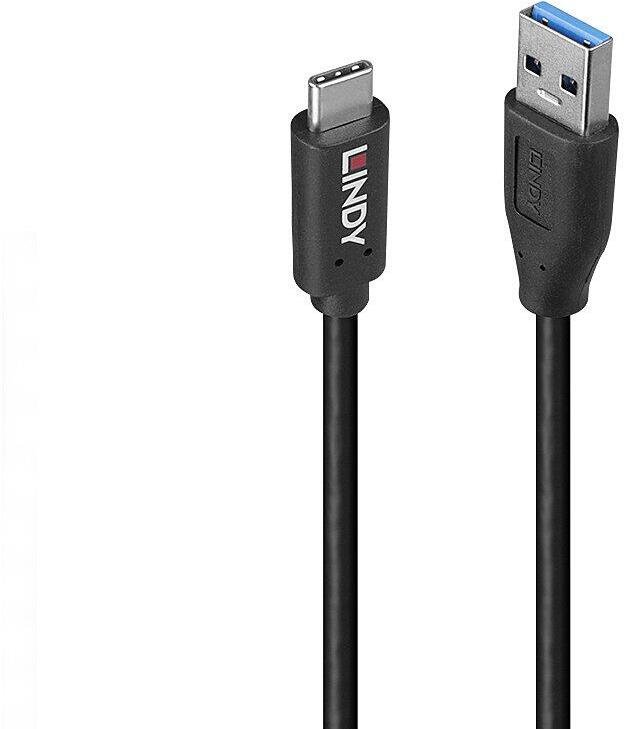

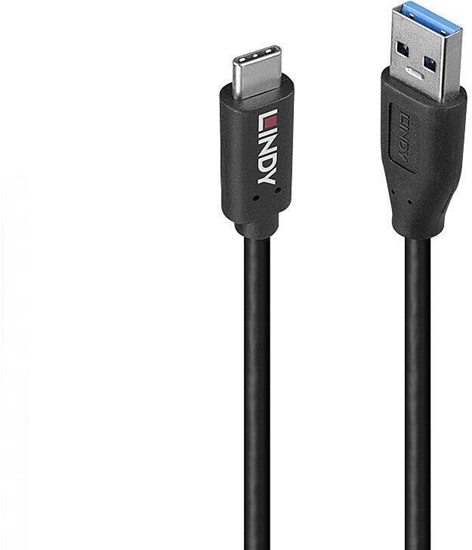

Изображение CABLE USB3.2 TYPE A TO C 0.5M/36970 LINDY

Изображение CABLE USB3.2 TYPE A TO C 0.5M/36970 LINDY

Изображение CABLE USB3.2 TYPE A TO C 0.5M/36970 LINDY

Производитель: LINDY

CABLE USB3.2 TYPE A TO C 0.5M/36970 LINDY

€8,34 с налогом

Артикул: ST10076638

Код производителя: 36970

Сайт производителя

гарантия: 24 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LV	2 - 4 дня	30	€8,34 с налогом
	PL	8 - 15 дня	30	€15,60 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3

цвет	Черный
Свойства	USB
Свойства	USB Type-C
Длина кабеля (м.)	4.0 m - 4.8 m
цвет	Золотой
Длина кабеля (м.)	1.1 - 1.7 m

Description
	36970 \| Cable length 0.5 m \| Ver. USB 3.2 Gen 2 (3.1 Gen 2) \| Connector 1 USB A \| Connector 2 USB C \| Connector 1 gender Male \| Connector 2 gender Male \| Cable jacket material Thermoplastic elastomer (TPE) \| Maximum data transfer rate 10 Gbit/s \| USB Power Delivery up to 15 W \| Colour Black \| Operating temperature (T-T) -10 - 60 °C

gross weight

0.03

country of origin

CN

net weight

0.03

packaging height

19.40

packaging lenght

17.40

packaging width

1.00

warranty

10

variations

36972,36971

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/8a/8f/7f/67/677f8f8a0cb2dc65f3d839bb/CE_36970, 36971, 36972, 36975, 36976, 36977.pdf

Description

Connectors

Connector A: USB 3.2 Type A Male
Connector B: USB 3.2 Type C Male
Housing Material: Recycled TPE
Shielding in head shell: -
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH:
- USB Type A: 9x28.1x16mm (0.35x1.11x0.63in)
- USB Type C: 7.25x24.8x12mm (0.29x0.98x0.47in)

Cable Construction

Jacket Diameter: 4.5mm (0.18in)
Jacket Material: Recycled TPE
Conductor Material: Copper
Conductor Gauge Power: 24AWG
Conductor Gauge Data: 32AWG
Shielding: Aluminium Foil

Specifications

Length: 0.5m (1.64ft)
Colour: Black
Type: Round
Standard: USB 3.2 Gen 2x1
Supported Bandwidth: 10Gbps
Maximum Power: 15W (5V 3A)
E-Mark: No
Maximum Resolution: -
Supported Protocols: USB 3.2, USB 2.0
Nominal Attenuation: -12. 2dB@5G, -18. 3dB@10G
Minimum Bend Radius: 45mm (1.77in)
Operating Temperature: -10°C - 60°C (14°F - 140°F)
Storage Temperature: -20°C - 80°C (-4°F - 176°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable)

Purchasing Information

No.: 36970
EAN: 4002888369701

This product is also available in other lengths

36970 - 0.5m (1.64ft)
36971 - 1m (3.28ft)
36972 - 1.5m (4.92ft)

CE Doc: CE_36970, 36971, 36972, 36975, 36976, 36977.pdf
