Производитель: INTELLINET

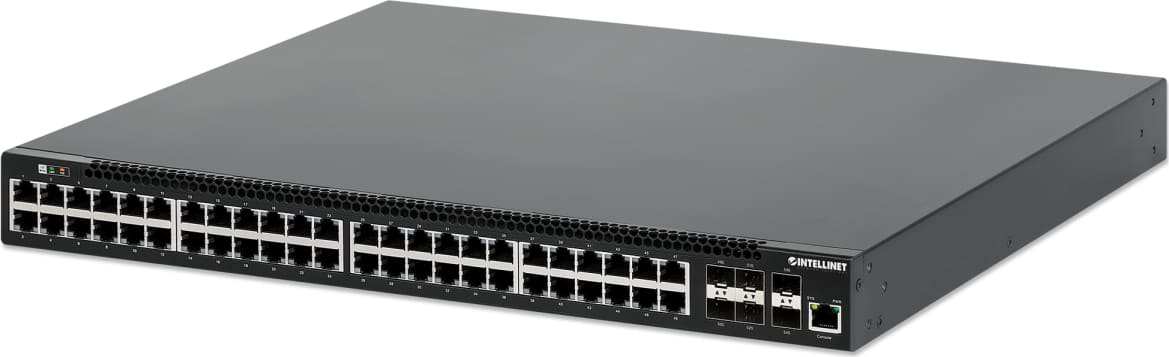

Intellinet 562041 tīkla pārslēgs Vadīts L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Melns

€1734,80 с налогом

Артикул: ST09624596

Код производителя: 562041

Сайт производителя

гарантия: 12 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	2	€1734,80 с налогом

Количество:

Specifications

Характеристики

auto mdi/mdi-x

Yes

power over ethernet (poe)

Yes

weight

5.5 kg

height

44 mm

width

440 mm

depth

350 mm

full duplex

Yes

auto-negotiation

Yes

switch type

Managed

switch layer

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

gigabit ethernet (copper) ports quantity

power connector

AC-in jack

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

Yes

copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

cable types supported

Cat5e

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

32000 entries

switching capacity

216 Gbit/s

forwarding rate

160.7 Mpps

store-and-forward

Yes

packet buffer memory

16 MB

access control list (acl)

Yes

multicast support

Yes

rack mounting

Yes

product colour

Black

led indicators

Activity, Link, PoE, Power

mean time between failures (mtbf)

90000 h

power consumption (max)

900 W

power over ethernet plus (poe+) ports quantity

total power over ethernet (poe) budget

850 W

operating temperature (t-t)

0 - 40 °C

storage temperature (t-t)

-10 - 70 °C

operating relative humidity (h-h)

5 - 95%

storage relative humidity (h-h)

10 - 95%

package width

505 mm

package depth

425 mm

package height

100 mm

package weight

6.44 kg

certification

FCC, CE, RoHS, UKCA, NDAA

package type

Box

power source

ac input voltage

100 - 240 V

ac input frequency

50/60 Hz

manual

Yes

ethernet lan data rates

10,100,1000 Mbit/s

housing material

Metal

cables included

master (outer) case gross weight

20.7 kg

master (outer) case width

355 mm

master (outer) case length

550 mm

master (outer) case height

465 mm

products per master (outer) case

3 pc(s)

jumbo frames support

Yes

number of fans

3 fan(s)

jumbo frames

12000

igmp snooping

Yes

rack mount kit

Yes

power protection features

Over voltage, Overload, Short circuit, Surge protection

mac address auto-learning supported

Yes

mac address auto-aging supported

Yes

warranty period

3 year(s)

vlan support

Yes

system event log

Yes

sfp+ module slots quantity

broadcast storm control

Yes

rate limiting

Yes

dhcp features

DHCP client, DHCP relay, DHCP server, DHCP snooping

virtual lan features

Port-based VLAN, Tagged VLAN

management protocols

SNMP

half duplex

Yes

power over ethernet (poe) power per port

30 W

arp inspection

Yes

power over ethernet (poe) voltage

52 V

ip routing

Yes

auto-sensing

Yes

routing protocols

OSPF, RIP, VRRP

ipv4 fib entries

24000

ipv6 fib entries

6000

Description

Intellinet 562041. Slēdža tips: Vadīts, Slēdža līmenis: L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 48. Pilns duplekss. Adrešu tabulas izmērs: 32000 ieraksti, Komutācijas ietilpība: 216 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Saspraudnis: AC barošanas spraudnis. Power over Ethernet (PoE). Statņa montāža
