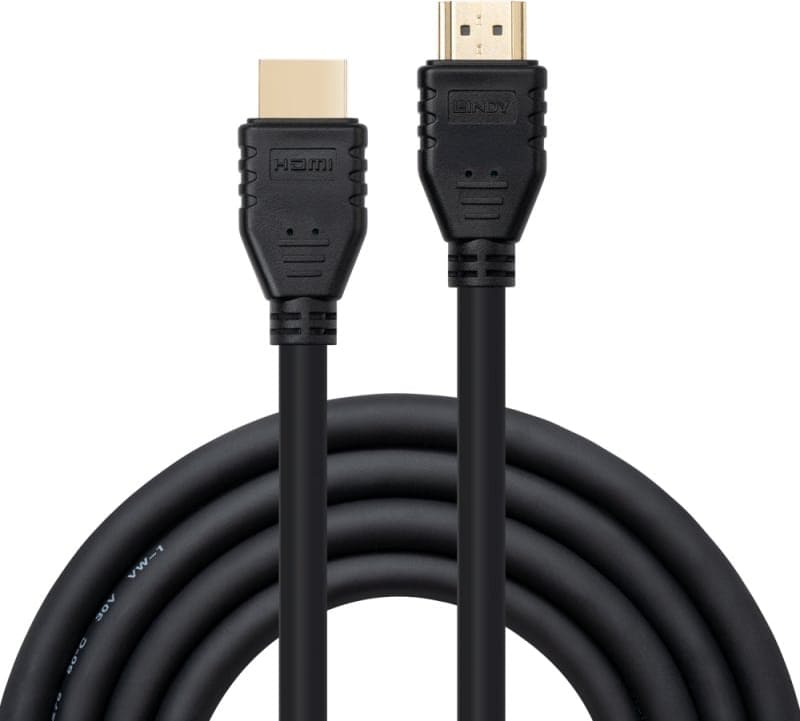

Lindy 2m 4K60Hz HDMI Cable, Flexible

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	5	€16,11 с налогом
	LV	7 - 12 дня	252	€18,30 с налогом

Свойства	HDMI
цвет	Золотой
цвет	Черный

gross weight

0.09

data transfer rate

18 Gbit/s

cable length

2 m

colour depth

8 bit

cable material

Copper-clad steel (CCS)

cable type

Round cable

country of origin

CN

product colour

Black

operating temperature (t-t)

-10 - 80 °C

storage temperature (t-t)

-20 - 85 °C

package width

20.3 mm

package depth

35.8 mm

package height

10.5 mm

certification

RoHS & REACH UL

connector 1

HDMI Type A (Standard)

connector 2

HDMI Type A (Standard)

connector 1 gender

Male

connector 2 gender

Male

quantity per pack

1 pc(s)

package type

Polybag

connector contacts plating

Gold

compliance certificates

REACH, RoHS

awg wire size

28

connector 1 form factor

Straight

connector 2 form factor

Straight

cable jacket material

Polyvinyl chloride (PVC)

maximum refresh rate

60 Hz

supported graphics resolutions

3840 x 2160

warranty period

10 year(s)

cable diameter

7.8 mm

hdmi version

2.1

dolby technologies

DTS:X, Dolby Atmos

connector housing material

Polyvinyl chloride (PVC)

connector material

Gold

nominal attenuation

35GHz＞-5.5dB(HBR1), 7GHz＞-8.5dB(HBR2)

shield material

Aluminium

bending radius (min)

7.8 cm

colour sampling

4:4:4

net weight

0.08

hdmi cable type

High Speed HDMI cable

packaging height

19.40

packaging lenght

17.40

packaging width

3.00

warranty

10

variation of

37315

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/4d/bd/87/67/6787bd4d7d62ad55995e236b/CE_37315-19.pdf

Description

Connectors

Connector A: HDMI® Type A Male
Connector B: HDMI® Type A Male
Housing material: Soft PVC
Connector plating: Gold Plating
Pin construction: Copper Alloy
Pin Plating: Gold Plated
Dimensions (WxDxH): 20.3 x 35.8 x 10.5mm (0.79 x x 0.41in)

Cable Construction

Length: 2m (6.56ft)
Standard: High Speed HDMI®
Colour: Black
Type: Round
Jacket diameter: 7.8mm (0.30in)
Jacket material: Soft PVC
Conductor material: Bare Copper
Conductor gauge: 28AWG
Shielding: Aluminum Foil
Braid Shielding: Aluminum-Magnesium

Technical Information

Supported bandwidth: 18Gbps
Maximum resolution: 3840x2160@60Hz 4:4:4,8bit
Nominal attenuation:
- 300kHz~825MHz<5dB
- 825MHz~2.475GHz<5dB
- 2.475GHz~4.125GHz<12dB
- 4.125GHz~5.1GHz<20dB
Minimum bend radius: 78mm
Operating Temperature: -10°C - 80°C (14°F - 176°F)
Storage Temperature: -20°C - 85°C (-4°F - 185°F)
ATC Approved: No

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS & REACH, UL, California Proposition 65

Purchasing Information

No.: 37317
EAN: 4002888373173

This product is also available in other lengths

37315 - 0.5m (1.64ft)
37316 - 1m (3.28ft)
37317 - 2m (6.56ft)
37318 - 3m (9.84ft)
37319 - 5m (16.44ft)

CE Doc: CE_37315-19.pdf
