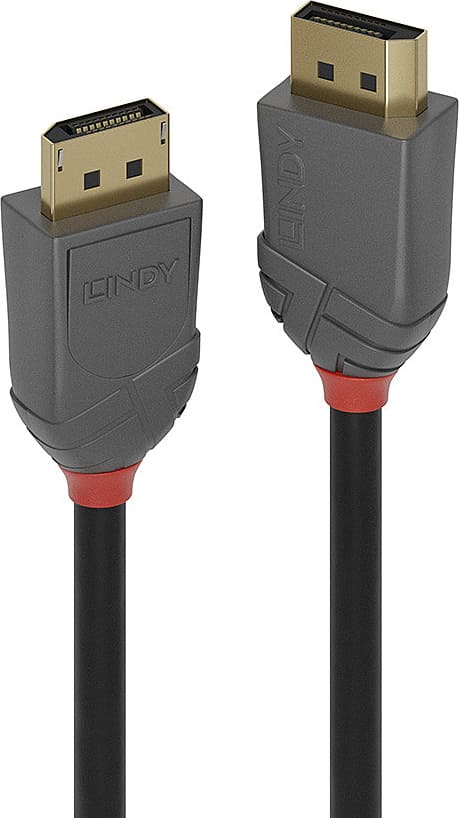

Lindy 7.5m DisplayPort 1.2 Cable, Anthra Line

Connectors

• Connector A: DP Male
• Connector B: DP Male
• Housing Material: ABS
• Connector Plating: Gold
• Pin Construction: Copper Alloy
• Pin Plating: Gold
• Dimensions (approx.) WxDxH: 20.4x36.0x12.7mm (0.8x1.42x0.5in)

Cable Construction

• Length: 7.5m (24.61ft)
• Standard: DP 1.2
• Colour: Black
• Type: Round
• Jacket Diameter: 8.5mm (0.34in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26AWG
• Shielding: Aluminium Magnesium Braid 50%

Specifications

• Supported Bandwidth: 21.6Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
• Nominal Attenuation: 100MHz - 450MHz > -2.44dB, 450MHz - 8100MHZ > -5.094dB
• Minimum Band Radius: 85mm (3.35in)
• Operating Temperature: -10°C - 80°C (14°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL

Purchasing Information

• No.: 36485
• EAN: 4002888364850

This product is also available in other lengths

• 36485 - 7.5m (24.61ft)
• 36486 - 10m (32.81ft)
