Производитель: LINDY

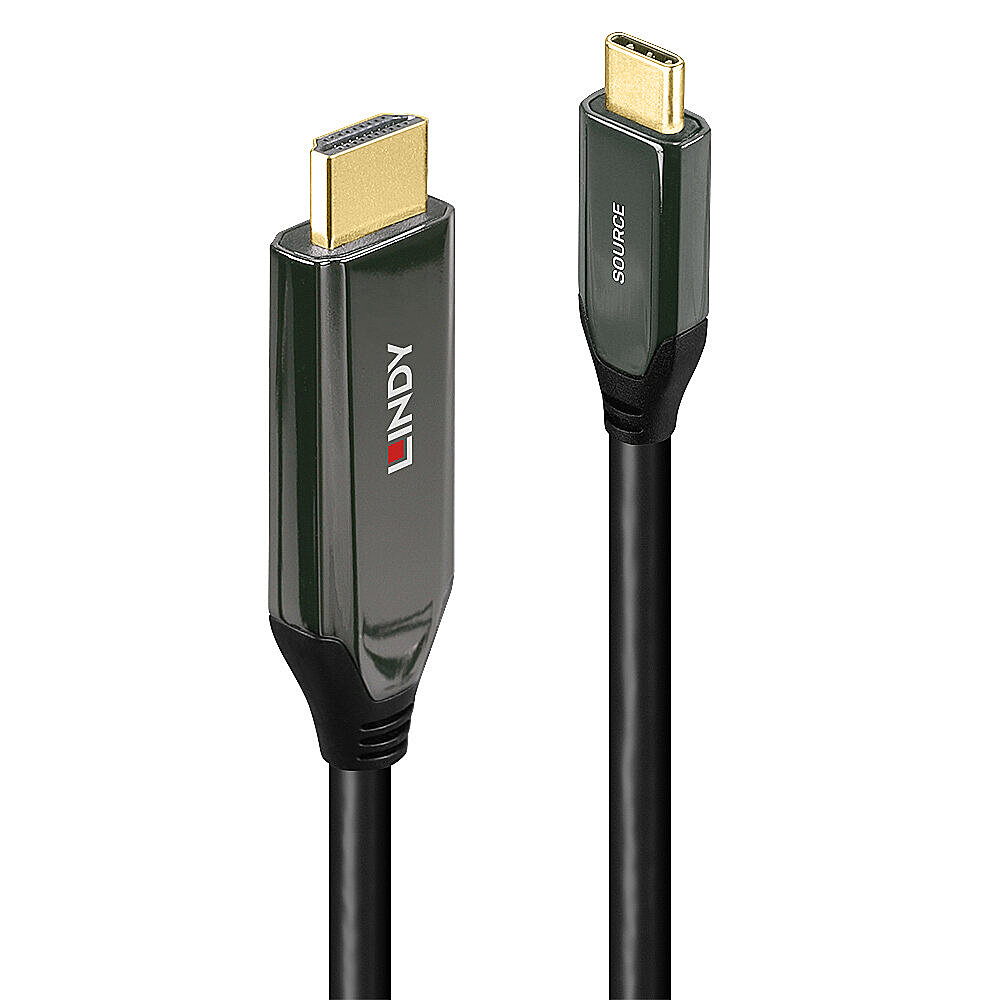

Lindy 3m USB Type C to HDMI 8K60 Adapter Cable

€78,19 с налогом

Артикул: ST07351059

Код производителя: 43369

Сайт производителя

гарантия: 24 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	24	€78,19 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3

Свойства	HDMI
Свойства	USB Type-C
Свойства	USB
цвет	Черный
цвет	Золотой

Cable length	3 m
Connector 1	USB Type-C
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Power source	USB
HDMI version	2.1
HDCP	Yes
HDCP version	2.2
USB Type-C DisplayPort Alternate Mode	Yes
High Dynamic Range (HDR) supported	Yes
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	3840 x 2160, 7860 x 4320
Data transfer rate	48 Gbit/s
Maximum refresh rate	144 Hz
Refresh rate at maximum resolution	60 Hz
Bend radius (min)	4.8 mm
Product colour	Black
Chipset	VMM7100
Jacket material	Polyvinyl chloride (PVC)
Cable type	Round cable
Connector housing material	Zinc alloy
Connector material	Gold
Contact material	Copper
AWG wire size	34
Plug and Play	Yes
Certification	CE, FCC, RoHS, REACH & UL, CP65
Operating temperature (T-T)	-20 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Connector 1 dimensions (WxDxH)	30 x 10 x 5 mm
Connector 2 dimensions (WxDxH)	60 x 20 x 8 mm
Quantity per pack	1 pc(s)
Package type	Polybag
Warranty period	2 year(s)
Description
Description	Lindy 3m USB Type C to HDMI 8K60 Adapter Cable. Cable length: 3 m, Connector 1: USB Type-C, Connector 2: HDMI Type A (Standard). Connector 1 dimensions (WxDxH): 30 x 10 x 5 mm, Connector 2 dimensions (WxDxH): 60 x 20 x 8 mm. Quantity per pack: 1 pc(s), Package type: Polybag

plug and play

Yes

chipset

VMM7100

hdcp

Yes

gross weight

1.13

data transfer rate

48 Gbit/s

cable length

3 m

cable type

Round cable

country of origin

product colour

Black

operating temperature (t-t)

-20 - 40 °C

storage temperature (t-t)

-40 - 80 °C

certification

CE, FCC, RoHS, REACH & UL, CP65

connector 1

USB Type-C

connector 2

HDMI Type A (Standard)

connector 1 gender

Male

connector 2 gender

Male

quantity per pack

1 pc(s)

package type

Polybag

power source

USB

jacket material

Polyvinyl chloride (PVC)

awg wire size

connector 1 form factor

Straight

connector 2 form factor

Straight

maximum resolution

7680 x 4320 pixels

maximum refresh rate

144 Hz

supported graphics resolutions

3840 x 2160, 7860 x 4320

warranty period

2 year(s)

hdmi version

2.1

refresh rate at maximum resolution

60 Hz

hdcp version

2.2

bend radius (min)

4.8 mm

connector housing material

Zinc alloy

connector 1 dimensions (wxdxh)

30 x 10 x 5 mm

connector 2 dimensions (wxdxh)

60 x 20 x 8 mm

connector material

Gold

contact material

Copper

net weight

0.10

usb type-c displayport alternate mode

Yes

high dynamic range (hdr) supported

Yes

packaging height

25.90

packaging lenght

23.60

packaging width

2.00

warranty

tech data sheets

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/68/03/bc/63/63bc0368741321f8787818d6/43369_TDS_v1.pdf

ce doc

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/83/69/2c/63/632c6983078020f6d7b84dd9/CE_DoC_DE_43367_43369.pdf

variation of

43367

replacement

43435

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/83/69/2c/63/632c6983078020f6d7b84dd9/CE_DoC_DE_43367_43369.pdf

manuals

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/cf/29/68/66/666829cf607d9b94ba45b4dc/Lindy_43367_9_MAN_0624.pdf

Description

Connectors

Connector A: USB Type C male
Connector B: HDMI® Type A male
Housing Material: Zinc Alloy
Connector Plating: Gold plating
Pin Construction: Copper alloy
Pin Plating: Gold plating
Dimensions (approx.) WxDxH: mm (in)
- USB C: 30x10x5mm (1.80x0.39x0.2in)
- HDMI®: 60x20x8mm (2.36x0.79x0.31in)

Cable Construction

Length: 3m (9.84ft)
Standard: HDMI® 2.1 with 48Gbps
Colour: Black
Type: Round
Jacket Diameter: 4.8mm (0.19in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 34AWG
Shielding: Tinplate

Specifications

Chipset: VMM7100
Supported Bandwidth: 48Gbps
Maximum Resolution: 7680x4320 60Hz, 3840x2160 144Hz
Nominal Attenuation: 100MHz-10GHz = 24dB
Minimum Bend Radius: 28.8mm (1.13in)
Operating Temperature: -20°C - 40°C (-4°F - 104°F)
Storage Temperature: -40°C - 80°C (-40°F - 176°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS, REACH, UL & California Proposition 65

Purchasing Information

No.: 43369
EAN: 4002888433693

This product is also available in other lenghts

43367 - 1m (3.28ft)
43368 - 2m (6.56ft)

CE Doc: CE_DoC_DE_43367_43369.pdf
Tech Data Sheets: 43369_TDS_v1.pdf
Manuals: Lindy_43367_9_MAN_0624.pdf
