Производитель: LEVELONE

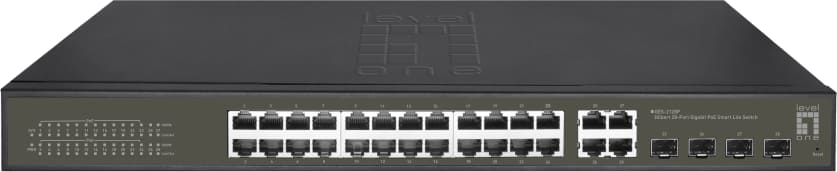

LevelOne GES-2128P Hilbert 28-Port Gigabit PoE Smart Switch

€340,65 с налогом

Артикул: ST07366361

Код производителя: GES-2128P

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	8 - 15 дня	57	€340,65 с налогом
LV	7 - 12 дня	59	€374,89 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Количество портов RJ-45	28
Количество портов RJ-45	8
Свойства	RJ-45
WRL stadarti	802.11b

power over ethernet (poe)

Yes

weight

3.4 kg

height

44.5 mm

width

440 mm

depth

290 mm

full duplex

Yes

switch type

Managed

country of origin

China

switch layer

L2

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

24

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

gigabit ethernet (copper) ports quantity

24

networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

No

copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

8000 entries

switching capacity

56 Gbit/s

packet buffer memory

4.1 MB

multicast support

Yes

rack mounting

Yes

product colour

Black

led indicators

Activity, Link, PoE, Power, System

noise level

30 dB

mean time between failures (mtbf)

43800 h

power consumption (max)

400 W

power over ethernet plus (poe+) ports quantity

24

total power over ethernet (poe) budget

380 W

operating temperature (t-t)

0 - 45 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 95%

heat dissipation

88.71 BTU/h

package width

515 mm

package depth

380 mm

package height

93 mm

package weight

4.1 kg

certification

UKCA, FCC Class A

package type

Box

compliance certificates

CE, RoHS

power source

AC/PoE

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

cables included

AC

master (outer) case gross weight

13.1 kg

master (outer) case width

540 mm

master (outer) case length

320 mm

master (outer) case height

400 mm

products per master (outer) case

3 pc(s)

pallet gross width

120 cm

pallet gross length

80 cm

jumbo frames support

Yes

master (outer) cases per pallet (air)

16 pc(s)

pallet height (air)

174.4 cm

quick start guide

Yes

jumbo frames

9000

igmp snooping

Yes

rack mount kit

Yes

surge protection

Yes

fanless

No

mac address auto-learning supported

Yes

mac address auto-aging supported

Yes

vlan support

Yes

flash memory

2 MB

broadcast storm control

Yes

rate limiting

Yes

number of vlans

32

virtual lan features

Tagged VLAN

number of queues

4

combo sfp ports quantity

4

power over ethernet (poe) power per port

30 W

surge protection voltage

8 kV

master (outer) case net weight

750 g

Description

LevelOne GES-2128P. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24. Pilns duplekss. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 56 Gbit/s. Tīkla standarts: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Statņa montāža
