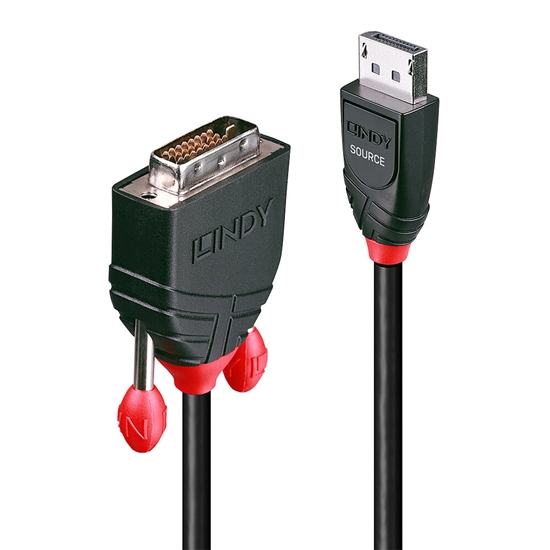

Connectors - Connector A: DisplayPort Male
- Connector B: DVI-D Male
- Housing Material:
- DisplayPort: ABS+PC
- DVI: PVC
- Connector Plating: Nickel plated
- Pin Construction: Copper
- Pin Plating: Gold plated
- Dimensions (approx.) WxDxH:
- DisplayPort: 38.8x19.8x11.9mm (1.53x0.78x0.47in)
- DVI: 48.5x39.5x16.5mm (1.91x0.77x0.65in)
Cable Construction - Length: 1m (3.28ft)
- Standard: DVI-D (Single Link), DisplayPort 1.2
- Colour: Black
- Type: Round
- Jacket Diameter: 6mm (0.24in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 30AWG
- Shielding: Tinned Copper Braid 85%
Specifications - Supported Bandwidth: 1.65Gbps
- Maximum Resolution: 1920x1200@60Hz
- Nominal Attenuation:
- 300KHz-825MHz <5dB
- 825MHz-2.475GHz <5dB - <12dB
- Minimum Bend Radius: 36mm (1.42in)
- Operating Temperature: 0°C - 45°C (32°F - 113°F)
- Storage Temperature: -10°C - 80°C (14°F - 176°F)
Miscellaneous - Packaging Type: Polybag
- Warranty (Years): 2
- Product Compliance: CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Purchasing Information - No.: 41490
- EAN: 4002888414906
This product is also available in other lengths - 41489 - 0.5m (1.64ft)
- 41490 - 1m (3.28ft)
- 41491 - 2m (6.56ft)
- 41492 - 3m (9.84ft)
- 41493 - 5m (16.44ft)
Manuals: LINDY_41489-93_MAN_1121.pdf
|
