Производитель: NETGEAR

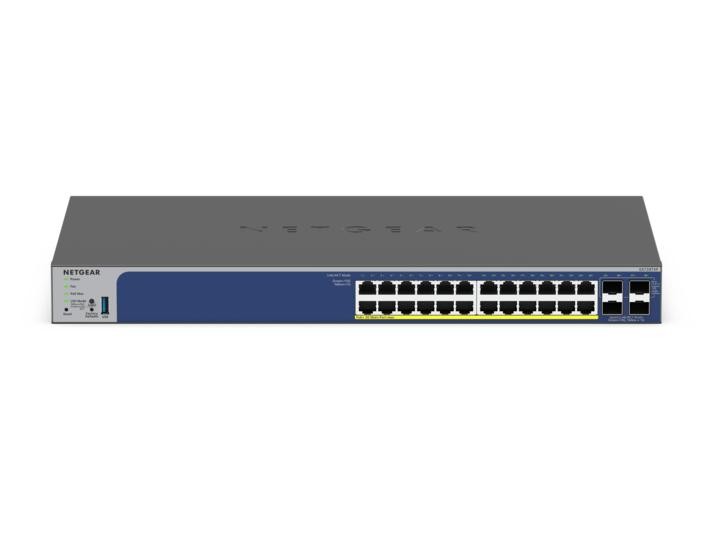

Netgear GS728TXP L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Melns

€475,76 с налогом

Артикул: ST08176114

Код производителя: GS728TXP-300EUS

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	9 - 12 дня	1	€475,76 с налогом
PL	8 - 15 дня	1	€488,65 с налогом
LV	7 - 12 дня	5	€607,96 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3

Количество портов RJ-45	24
Свойства	RJ-45

Switch class	SMART
Application	Medium and large companies
Switch layer	L3
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	24
Number of 10Gb ports	4
Number of PoE+ ports	24
Number of SFP+ ports	4
Console port	No
Forwarding mode	Store-and-forward
Throughput	128 (Gigabity na sek.)
Forwarding rate	95.24 (Mpps)
Packet buffer	1.5 (MegaBajt)
MAC address table size	16000
Support for Jumbo frames	Yes
Jumbo frame size	10 (Kilobajt)
Stackability	No
Number of VLAN groups	256
VLAN	IEEE 802.1Q VLAN tagging IP-based VLANs MAC-based VLANs Auto-VoIP VLAN / Auto-Voice VLAN Auto-VoIP Voice VLAN Auto-Video VLAN GARP with GVRP Private VLAN
Supported protocols and standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3ad Trunking (LACP) IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) IEEE 802.1p Class of Service IEEE 802.1D Spanning Tree (STP) IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree (RSTP) IEEE 802.1x RADIUS Network Access Control
QoS	Port-based rate limiting Port-based QoS Support for IPv6 fields DiffServ QoS IEEE 802.1p COS Destination MAC and IP IPv4 and v6 DSC IPv4 and IPv6 ToS TCP/UDP-based Weighted Round Robin (WRR) Strict priority queue technology Auto-VoIP VLAN / Auto-Voice VLAN Auto-VoIP Voice VLAN Auto-Video VLAN
Security	IEEE 802.1x Guest VLAN RADIUS-based VLAN assignment via .1x MAC-based .1x RADIUS accounting Access Control Lists (ACLs) L2 / L3 / L4 IP-based ACLs (IPv4 and IPv6) MAC-based ACLs TCP/UDP-based ACLs MAC lockdown MAC lockdown by the number of MACs Control MAC # Dynamic learned entries: 16384 Control MAC # static entries: 256 IEEE 802.1x RADIUS port access authentication Port-based security by locked MAC addresses Dynamic ARP inspection Broadcast, unicast, multicast DoS protection DoS attacks prevention Network storm protection, DoS Broadcast, unicast, multicast DoS protection DoS attacks prevention
Management, monitoring, configuration	Cloud/Remote management Insight mobile app & Insight Cloud Portal management uPnP Discovery Lite Command-line Interface (CLI) Networking monitoring Data/performance logs Centralized network configuration/policies (network-centric management) Device auto-join and configure (zero-touch provisioning) Multi-site, multi-network single pane-of-glass view Multi-switch, multi-port concurrent configuration Network/global password (for all Insight Managed devices on a network) Password management Configurable management VLAN Admin access control via RADIUS and TACACS+ IPv6 management SNTP client over UDP port 123 Port mirroring Many-to-one port mirroring: 28 Web browser-based graphical user interface (GUI) Dual software (firmware) image Cable test utility TLS/HTTPS Web-based access (version) File transfers (uploads, downloads) HTTP upload/download (firmware) Syslog (RFC 3164) USB port for firmware and config upload/download
L2 features	Broadcast, multicast, unknown unicast storm control IEEE 802.3ad - LAGs (LACP) IEEE 802.3x (full duplex and flow control) IEEE 802.1D Spanning Tree Protovcol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol Layer 2 DHCP Relay Layer 2 DHCP Relay IGMP snooping (v1, v2 and v3) MLD snooping support (v1 and v2) IGMP snooping querier (v2) MLD snooping querier (v1) Multicast VLAN Registration (MVR)
L3 features	DHCP client DHCP snooping IPv4 static routing: 32 IPv6 static routing: 32 VLAN routing Host ARP table (number of entries) 512 ARP ICMP Router Discovery Protocol (IRDP) Number of IP VLAN interfaces (routed VLANs)
Chassis type	Rack
Fan	Yes
Power supply	Internal
Power consumption	231 (Watt)
Mean time between failures (MTBF)	1252990 (Hour)
Environment requirements	Temperatura pracy: 0° do 50°C (32° do 122°F) Wilgotność robocza: 90% maksymalnej wilgotności względnej (RH), bez kondensacji Temperatura przechowywania: 20° do 70°C ( 4° do 158°F) Wilgotność przechowywania: (względna) maksymalna wilgotność względna 95%, bez kondensacji
Certificates	Emisje elektromagnetyczne i odporność: CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA Bezpieczeństwo: CB, CE, CSA, RCM, KC, BSMI
Accessories included	NETGEAR GS728TXP z zarządzaniem w chmurze Przewód zasilający (zależnie od regionu) Zestaw do montażu w stelażu Podręcznik instalacji
Dimensions	440 x 257 x 43.2 mm
Weight	3.78 (kilogram)
Other features	Łączna moc portów PoE: 190 W Maksymalne zużycie bez PoE: 29 W
Designation	CE+WEEE
Width	520
Height	105
Depth	350
Weight	4800
Description
Description	24-portowy inteligentny przełącznik PoE+ Gigabit Ethernet z opcjonalnym zarządzaniem zdalnym/chmurowym i 4 portami SFP (190 W) Autonomiczny przełącznik Smart Switch przeznaczony do sieci konwergentnych, dużych lub małych. Roczna subskrypcja Insight. Rozwiązanie Total Network Solution pomaga w pełni wykorzystać możliwości sieci Łatwe wdrażanie, zarządzanie i monitorowanie zarządzanych przez Netgear insight routerów, przełączników i punktów dostępu z jednego okienka. Zdalne zarządzanie aplikacją NETGEAR Insight Zarządzaj lokalnie lub zdalnie przez chmurę dla uproszczenia a jednocześnie potężnej kontroli sieci w dowolnym miejscu i czasie. Obejmuje roczną subskrypcję.

power over ethernet (poe)

Yes

manufacturer

NETGEAR

product type

Network Switches

weight

3.8 kg

gross weight

4.853

height

43.2 mm

width

440 mm

depth

257 mm

full duplex

Yes

stackable

Yes

switch layer

L2/L3

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

10G Ethernet (100/1000/10000)

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

Yes

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

16000 entries

packet buffer memory

16 MB

access control list (acl)

Yes

mac address filtering

Yes

rack mounting

Yes

product colour

Black

noise level

26.8 dB

mean time between failures (mtbf)

1252990 h

operating temperature (t-t)

0 - 50 °C

storage temperature (t-t)

-20 - 70 °C

operating relative humidity (h-h)

0 - 95%

storage relative humidity (h-h)

0 - 95%

manual

Yes

cables included

power consumption (typical)

748.18 W

operating altitude

0 - 3000 m

non-operating altitude

0 - 3000 m

igmp snooping

Yes

built-in processor

Yes

processor frequency

800 MHz

spanning tree protocol

Yes

static route

Yes

vlan support

Yes

flash memory

64 MB

sfp+ module slots quantity

broadcast storm control

Yes

rate limiting

Yes

dhcp features

DHCP client

ssh/ssl support

Yes

number of vlans

256

virtual lan features

Voice VLAN

number of static routes

installed sfp+ modules quantity

access control list (acl) ingress

100

Description

NETGEAR GS728TXP. Slēdža līmenis: L2/L3. Basic switching RJ-45 Ethernet portu veids: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet portu daudzums: 24, Instalēto SFP+ moduļu skaits: 4. Pilns duplekss. Adrešu tabulas izmērs: 16000 ieraksti. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Statņa montāža
