Производитель: TIGO

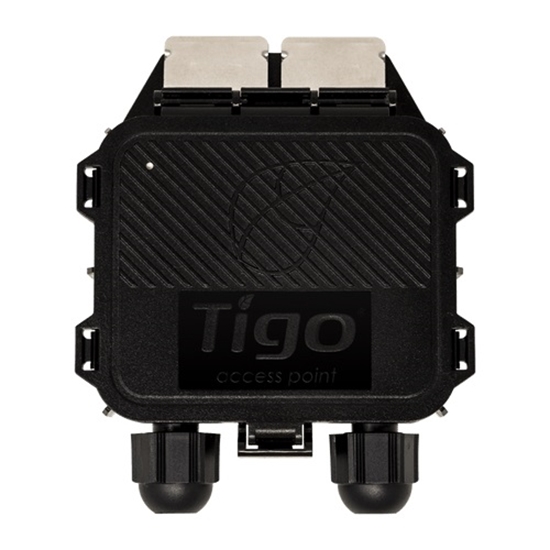

Tigo | Access Point (TAP) | Wirelessly communicates directly with TS4 units; Easy installation on the module frame without tools

€68,44 с налогом

Артикул: ST10363009

Код производителя: 158-00000-02

Сайт производителя

гарантия: 300 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LT	3 - 5 дня	50	€68,44 с налогом

Количество:

Specifications

Характеристики

Details 1
Details 2

Gross depth (mm)	126.00
Gross depth (mm)	126.00
Gross height (mm)	27.00
Gross height (mm)	27.00
Gross weight	1.03
Gross weight	1.03
Gross width (mm)	130.00
Gross width (mm)	130.00
Net weight	0.23
Net weight	0.23
Tare weight (kg)	0.80
Tare weight (kg)	0.80
Volume (m3)	0.00
Volume (m3)	0.00

Description

The Tigo Access Point (TAP) improves the data management of your solar system through seamless communication with Tigo Smart modules and retrofit devices. TAP significantly improves the level of security at module level deactivation. Comined with a Cloud Connect Advanced (CCA), the TAP offers unsurpassed insights into your PV system.Note: Required components: Cloud Connect Advanced (CCA) and Tigo TS devices (TS-A-O, TS-A-S or TS-A-M).Features: Wirelessly communicates directly with TS units TS-A-O, TS-A-S or TS-A-M (optimization, safety and monitoring devices).Easy installation on the module frame without tools.Use the Tigo SMART app on your moile device for quick startup.When paired with the Cloud Connect Advanced (CCA), enales wireless module level monitoring.Collects data from up to 300 TS units.rSpecifications:Input voltage range: 5V-25V DC.Power consumption: 0.5W, ma. 1W.Connection: wireless with TS devices, RS85 cale with CCA.Recommended cale type: RS85, 18-22AWG.Ma distance from TAP to TS unit: 10m to the closest, 35m to the farthest.Ma TS units supported: 300.Application: Tigo SMART, Android, iOS.Working temperature: -30°C ~ +70°C. Safety class: IP68, NEMA R.Weight: 227 g.Dimensions: 126.213026.8mm.rWarranty: 2 months.img src=https:www.eurodigital.ltusistemaVartotojaiNaujienos62-00280-00_1.jpgimg src=https:www.eurodigital.ltusistemaVartotojaiNaujienos3-00000-52_1.jpgimg src=https:www.eurodigital.ltusistemaVartotojaiNaujienos158-00000-02_1.jpg

Характеристики

Details 1
Details 2

Gross depth (mm)	126.00
Gross depth (mm)	126.00
Gross height (mm)	27.00
Gross height (mm)	27.00
Gross weight	1.03
Gross weight	1.03
Gross width (mm)	130.00
Gross width (mm)	130.00
Net weight	0.23
Net weight	0.23
Tare weight (kg)	0.80
Tare weight (kg)	0.80
Volume (m3)	0.00
Volume (m3)	0.00

Description

The Tigo Access Point (TAP) improves the data management of your solar system through seamless communication with Tigo Smart modules and retrofit devices. TAP significantly improves the level of security at module level deactivation. Comined with a Cloud Connect Advanced (CCA), the TAP offers unsurpassed insights into your PV system.Note: Required components: Cloud Connect Advanced (CCA) and Tigo TS devices (TS-A-O, TS-A-S or TS-A-M).Features: Wirelessly communicates directly with TS units TS-A-O, TS-A-S or TS-A-M (optimization, safety and monitoring devices).Easy installation on the module frame without tools.Use the Tigo SMART app on your moile device for quick startup.When paired with the Cloud Connect Advanced (CCA), enales wireless module level monitoring.Collects data from up to 300 TS units.rSpecifications:Input voltage range: 5V-25V DC.Power consumption: 0.5W, ma. 1W.Connection: wireless with TS devices, RS85 cale with CCA.Recommended cale type: RS85, 18-22AWG.Ma distance from TAP to TS unit: 10m to the closest, 35m to the farthest.Ma TS units supported: 300.Application: Tigo SMART, Android, iOS.Working temperature: -30°C ~ +70°C. Safety class: IP68, NEMA R.Weight: 227 g.Dimensions: 126.213026.8mm.rWarranty: 2 months.img src=https:www.eurodigital.ltusistemaVartotojaiNaujienos62-00280-00_1.jpgimg src=https:www.eurodigital.ltusistemaVartotojaiNaujienos3-00000-52_1.jpgimg src=https:www.eurodigital.ltusistemaVartotojaiNaujienos158-00000-02_1.jpg
