    Производитель: TP-LINK

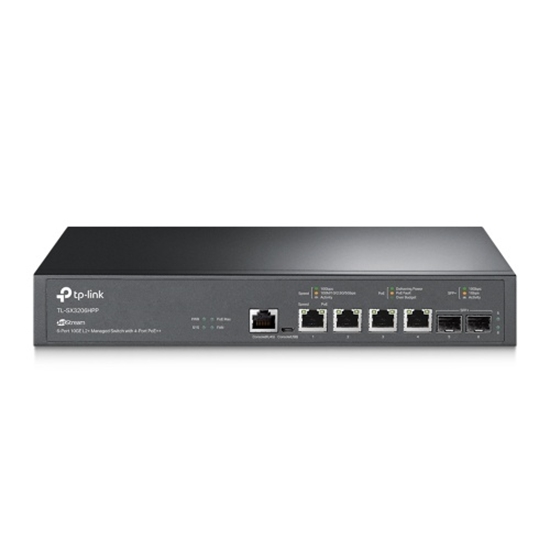

    TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++


    €606,38 с налогом

    Артикул: ST06714413
    Код производителя: TL-SX3206HPP
    Сайт производителя
    гарантия: 24 месяцы
    *
    Склад Доставка Наличие Цена
    PL

    Характеристики
    Количество портов RJ-45 6
    Количество портов RJ-45 4
    Свойства RJ-45
    Свойства USB
    Switch typeManaged
    Switch layerL2+
    Quality of Service (QoS) supportYes
    Web-based managementYes
    Cloud-managedYes
    ARP inspectionYes
    Configuring Location Settings (CLI)Yes
    System event logYes
    MIB supportYes
    Basic switching RJ-45 Ethernet ports quantity4
    Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
    SFP+ module slots quantity2
    Console portRJ-45/Micro-USB
    Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
    10G supportYes
    Port mirroringYes
    IP routingYes
    Routing entries512
    Flow control supportYes
    Link aggregationYes
    Broadcast storm controlYes
    Rate limitingYes
    Spanning tree protocolYes
    Head-of-line (HOL) blockingYes
    VLAN supportYes
    Virtual LAN featuresPrivate VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
    Number of VLANs4000
    MAC address table32000 entries
    Switching capacity120 Gbit/s
    Forwarding rate89.28 Mpps
    Static routeYes
    Number of static routes48
    Jumbo frames supportYes
    Jumbo frames9216
    DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
    Access Control List (ACL)Yes
    IGMP snoopingYes
    Security algorithmsHTTPS, SSL/TLS
    SSH/SSL supportYes
    Loop protectionYes
    BPDU filtering/protectionYes
    AuthenticationGuest VLAN
    Authentication typeAAA, RADIUS, TACACS+
    Multicast supportYes
    Multicast Listener Discovery (MLD) snoopingMLD v1/v2
    Management protocolsSNMP v1/v2c/v3
    Rack mountingYes
    Product colourBlack
    LED indicatorsYes
    Number of fans2 fan(s)
    CertificationCE, FCC, RoHS
    Minimum system requirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
    Power sourceAC
    Power supply includedYes
    AC input voltage100 - 240 V
    AC input frequency50 - 60 Hz
    Power consumption (max)244.9 W
    Power over Ethernet (PoE)Yes
    Power over Ethernet plus (PoE+) ports quantity4
    Power over Ethernet (PoE) power per port60 W
    Total Power over Ethernet (PoE) budget200 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-40 - 70 °C
    Operating relative humidity (H-H)10 - 90%
    Storage relative humidity (H-H)5 - 95%
    Heat dissipation835.67 BTU/h
    Width294 mm
    Depth180 mm
    Height44 mm
    Cables includedAC
    Quick start guideYes
    Rack mount kitYes
    Package width400 mm
    Package depth250 mm
    Package height80 mm
    Package weight2.62 kg
    Harmonized System (HS) code85176990
    Description
    TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 120 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE.... Power over Ethernet (PoE). Rack mounting
    Description

    Lightning-Fast Connection with Full 10GE Ports
    Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.

    Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports
    Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.

    Seamless Integration to Omada Cloud SDN
    Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

    Advanced L3 Features
    An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.
