Manufacturer: ZYXEL

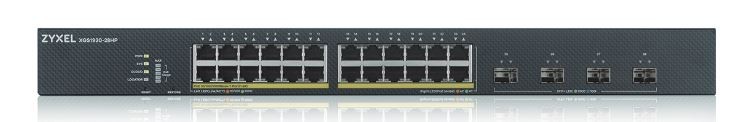

Zyxel XGS1930-28HP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

€807.97 incl tax

SKU: ST03307262

Manufacturer part number: XGS1930-28HP-EU0101F

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	3	€807.97 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3
Details 4

WRL stadarti	802.11b
Properties	RJ-45
RJ-45 port	24

Switch class	Managed
Switch class	SMART
Application	Medium and large companies
Switch layer	L2
Network architecture	GigabitEthernet
Number of 10/100/1000 Mbps ports	24
Number of PoE ports (PoE & PoE+)	24
Number of SFP+ ports	4
Throughput	128 (Gigabajty na sek.)
Forwarding rate	95.2 (Mpps)
Packet buffer	1.5 (MegaBajt)
MAC address table size	16000
Stackability	Yes
Supported protocols and standards	IEEE 802.3 10BASE-T Ethernet* IEEE 802.3u 100BASE-TX Ethernet* IEEE 802.3ab 1000BASE-T Ethernet* IEEE 802.3z 1000BASE-X* IEEE 802.3ae 10-Gigabit Ethernet Over Fiber* IEEE 802.3af PoE* IEEE 802.3at PoE Plus* IEEE 802.3az EEE* IEEE 802.3x flow control IEEE 802.3ad LACP aggregation* IEEE 802.1D Spanning Tree Protocol (STP)* IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)* IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1p Class of Service (CoS) prioritization* IEEE 802.1X port authenticatio
QoS	No. of hardware queues per port: 8* 802.1p queuing methods: SPQ, WRR, WFQ* Storm control: broadcast, unknown L2MC, unknown unicast (DLF)* Rate limiting per port Policy-based rate limiting Policy-based prioritizatio
Security	802.1X* Port security* MAC authentication* Static MAC forwarding SSL Static ARP Policy-based security filtering Port isolation MAC search Guest VLAN* PPPoE relay agent PPPoE option 82 PPPoE IA Interface related trap enable/ disable (by port) CPU protection SHA2 HTTPS certification* Login authentication by RADIUS* RADIUS accounting Authorization on RADIUS* Multiple RADIUS servers* 802.1x VLAN and bandwidth assignment by RADIUS* ACL packet filtering (IPv4/IPv
Management, monitoring, configuration	SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) Syslog (IPv4/v6)* IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED Custom default Display port utilization* Support NebulaFlex for hybrid mode
L2 features	L2 multicast group: 1K IGMP snooping (v1, v2, v3)* Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling IGMP filtering Static multicas
Chassis type	Rack
Fan	No
Power supply	Internal
Power consumption	471 (Watt)
Mean time between failures (MTBF)	1.369 (Hour)
Accessories included	Kabel zasilający Dokumentacja techniczna
Power supply	100 to 240 V AC, 50/60 Hz
Dimensions	441 x 330 x 44 mm
Weight	4.6 (kilogram)
Designation	CE+WEEE
Width	500
Height	580
Depth	100
Weight	5800
Description
Description	Przełącznik XGS1930-28HP Przełączniki Smart Managed serii Zyxel GS1930 przedstawia Zyxel NebulaFlex który pozwala łatwo przełączać się między naszą wolną od licencji platformą do zarządzania chmurą Nebula w dowolnym czasie za pomocą zaledwie kilku prostych kliknięć.

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Fiber optic connector	SFP+
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
IP routing	Yes
Routing entries	32
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN, Port-based VLAN
Number of VLANs	4000
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.2 Mpps
Static route	Yes
Path MTU discovery	Yes
Packet buffer memory	1.5 MB
DHCP features	DHCP relay, DHCPv6 relay, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, HTTPS, SHA-2, SNMPv3, SSL/TLS
SSH/SSL support	Yes
Loop protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Password protection	Yes
CPU defense	Yes
Multicast support	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Rack mounting	Yes
Product colour	Black
Safety	LVD, BSMI
Electromagnetic compatibility	FCC 15 A, CE A, BSMI EMC
Certification	RoHS
Internal memory	512 MB
Flash memory	32 MB
Noise level	28.5 dB
Mean time between failures (MTBF)	1369432 h
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	471 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	375 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	1606.11 BTU/h
Width	441 mm
Depth	330 mm
Height	44 mm
Weight	4.6 kg
Cables included	AC
Rack mount kit	Yes
Package width	585 mm
Package depth	503 mm
Package height	95 mm
Package weight	5.82 kg
Harmonized System (HS) code	85176990
Description
Description	Zyxel XGS1930-28HP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting

power over ethernet (poe)

Yes

weight

4.6 kg

height

44 mm

width

441 mm

depth

330 mm

switch type

Managed

switch layer

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

Yes

copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

16000 entries

switching capacity

128 Gbit/s

forwarding rate

95.2 Mpps

packet buffer memory

1.5 MB

access control list (acl)

Yes

multicast support

Yes

rack mounting

Yes

product colour

Black

noise level

28.5 dB

mean time between failures (mtbf)

1369432 h

power consumption (max)

471 W

power over ethernet (poe) ports quantity

total power over ethernet (poe) budget

375 W

operating temperature (t-t)

0 - 50 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 95%

storage relative humidity (h-h)

10 - 95%

heat dissipation

1606.11 BTU/h

package width

585 mm

package depth

503 mm

package height

95 mm

package weight

5.82 kg

certification

RoHS

harmonized system (hs) code

85176990

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

fiber optic connector

SFP+

cables included

security algorithms

802.1x RADIUS, HTTPS, SHA-2, SNMPv3, SSL/TLS

safety

LVD, BSMI

igmp snooping

Yes

rack mount kit

Yes

internal memory

512 MB

spanning tree protocol

Yes

static route

Yes

vlan support

Yes

flash memory

32 MB

sfp+ module slots quantity

broadcast storm control

Yes

dhcp features

DHCP relay, DHCPv6 relay, DHCP client

ssh/ssl support

Yes

electromagnetic compatibility

FCC 15 A, CE A, BSMI EMC

number of vlans

4000

virtual lan features

Voice VLAN, Port-based VLAN

loop protection

Yes

authentication

Guest VLAN, MAC-based authentication, Port-based authentication

ip routing

Yes

password protection

Yes

garp vlan registration protocol (gvrp)

Yes

cpu defense

Yes

routing entries

path mtu discovery

Yes

Description

Zyxel XGS1930-28HP. Slēdža tips: Vadīts, Slēdža līmenis: L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 128 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Statņa montāža
