    PrevLevel One LevelOne WAP-8121...
    NextLevel One LevelOne WAP-8131...
    Manufacturer: LEVELONE

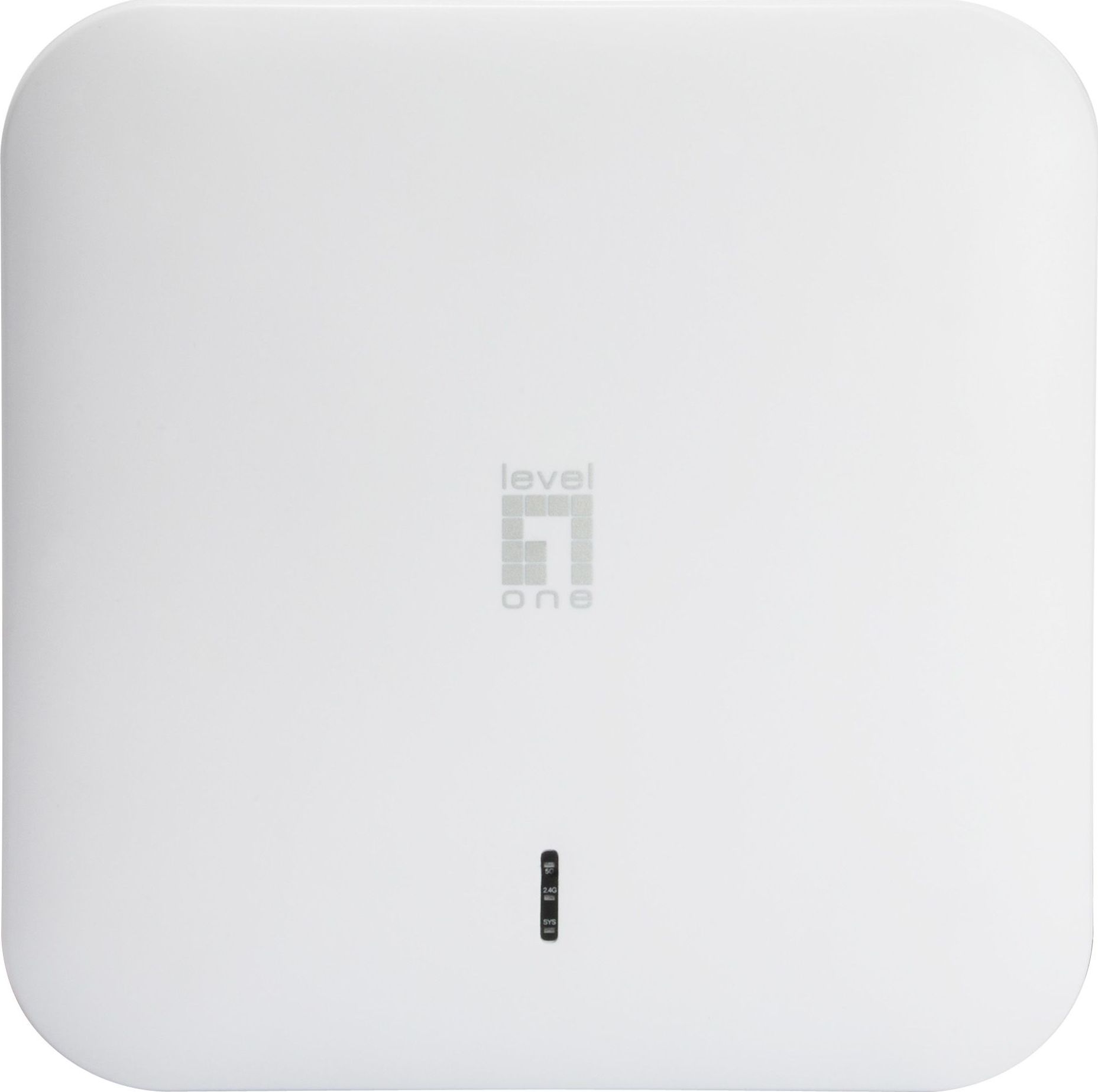

    Level One LevelOne WAP-8123 WLAN piekļuves punkts 1200 Mbit/s Balts Power over Ethernet (PoE)


    €165.15 incl tax

    SKU: ST06437373
    Manufacturer part number: WAP-8123
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    power over ethernet (poe)Yes
    2.4 ghzYes
    5 ghzYes
    mimoYes
    weight520 g
    maximum data transfer rate1200 Mbit/s
    height198 mm
    width198 mm
    depth28 mm
    switch typeManaged
    country of originChina
    quality of service (qos) supportYes
    web-based managementYes
    networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    product colourWhite
    led indicatorsPower, Status
    operating temperature (t-t)-30 - 55 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 95%
    package width235 mm
    package depth81 mm
    package height243 mm
    package weight830 g
    certificationCE, FCC
    harmonized system (hs) code85176990
    internalNo
    package typeBox
    ethernet lan data rates10,100,1000 Mbit/s
    ethernet lan (rj-45) ports1
    dc-in jackYes
    cables includedLAN (RJ-45)
    master (outer) case gross weight18 kg
    master (outer) case width435 mm
    master (outer) case length491 mm
    master (outer) case height515 mm
    products per master (outer) case20 pc(s)
    frequency band2.4 ~ 2.4835, 5.15 ~ 5.35, 5.46 ~ 5.72, 5.725~ 5.825 GHz
    power consumption (typical)30 W
    modulation16-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
    security algorithms64-bit WEP, 128-bit AES, 128-bit WEP, TKIP, WPA, WPA2, WPA2-PSK
    operating modesAccess Point (AP),Gateway,Repeater,WISP
    antenna gain level (max)5 dBi
    mounting kitYes
    antennas quantity4
    reset buttonYes
    quick start guideYes
    firmware upgradeableYes
    virtual lan featuresTagged VLAN
    maximum data transfer rate (5 ghz)867 Mbit/s
    automatic channel selectionYes
    service set identifier (ssid) featuresSSID broadcast on/off
    wan connectionEthernet (RJ-45)
    placementCeiling
    antenna featuresIntegrated antenna
    number of users128 user(s)
    cd manualYes
    maximum data transfer rate (2.4 ghz)300 Mbit/s
    wi-fi multimedia (wmm)/(wme)Yes
    number of ssid supported8
    mimo typeMulti User MIMO
    cd quick installation guideYes
    Description
    LevelOne WAP-8123. 2.4 GHz, 5 GHz, Maksimālais datu pārraides ātrums: 1200 Mbit/s. Drošības algoritma atbalstīts: 64-bit WEP, 128-bit AES, 128-bit WEP, TKIP, WPA, WPA2, WPA2-PSK. Ethernet LAN datu pārsūtīšanas ātrums: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Produkta krāsa: Balts

    Products specifications
    power over ethernet (poe)Yes
    2.4 ghzYes
    5 ghzYes
    mimoYes
    weight520 g
    maximum data transfer rate1200 Mbit/s
    height198 mm
    width198 mm
    depth28 mm
    switch typeManaged
    country of originChina
    quality of service (qos) supportYes
    web-based managementYes
    networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    product colourWhite
    led indicatorsPower, Status
    operating temperature (t-t)-30 - 55 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)5 - 95%
    package width235 mm
    package depth81 mm
    package height243 mm
    package weight830 g
    certificationCE, FCC
    harmonized system (hs) code85176990
    internalNo
    package typeBox
    ethernet lan data rates10,100,1000 Mbit/s
    ethernet lan (rj-45) ports1
    dc-in jackYes
    cables includedLAN (RJ-45)
    master (outer) case gross weight18 kg
    master (outer) case width435 mm
    master (outer) case length491 mm
    master (outer) case height515 mm
    products per master (outer) case20 pc(s)
    frequency band2.4 ~ 2.4835, 5.15 ~ 5.35, 5.46 ~ 5.72, 5.725~ 5.825 GHz
    power consumption (typical)30 W
    modulation16-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
    security algorithms64-bit WEP, 128-bit AES, 128-bit WEP, TKIP, WPA, WPA2, WPA2-PSK
    operating modesAccess Point (AP),Gateway,Repeater,WISP
    antenna gain level (max)5 dBi
    mounting kitYes
    antennas quantity4
    reset buttonYes
    quick start guideYes
    firmware upgradeableYes
    virtual lan featuresTagged VLAN
    maximum data transfer rate (5 ghz)867 Mbit/s
    automatic channel selectionYes
    service set identifier (ssid) featuresSSID broadcast on/off
    wan connectionEthernet (RJ-45)
    placementCeiling
    antenna featuresIntegrated antenna
    number of users128 user(s)
    cd manualYes
    maximum data transfer rate (2.4 ghz)300 Mbit/s
    wi-fi multimedia (wmm)/(wme)Yes
    number of ssid supported8
    mimo typeMulti User MIMO
    cd quick installation guideYes
    Description
    LevelOne WAP-8123. 2.4 GHz, 5 GHz, Maksimālais datu pārraides ātrums: 1200 Mbit/s. Drošības algoritma atbalstīts: 64-bit WEP, 128-bit AES, 128-bit WEP, TKIP, WPA, WPA2, WPA2-PSK. Ethernet LAN datu pārsūtīšanas ātrums: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Produkta krāsa: Balts
