Manufacturer: ARCTIC

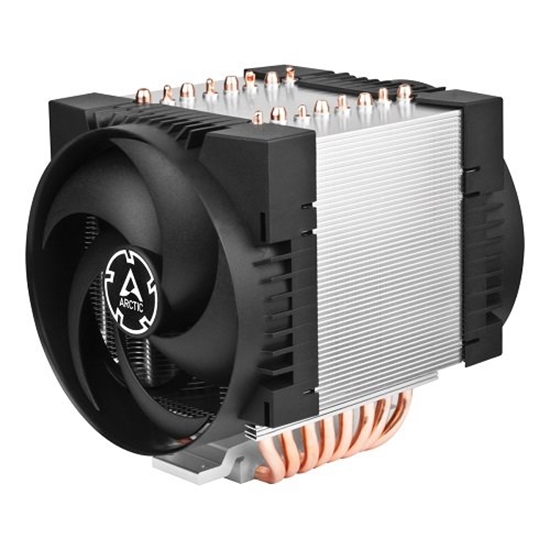

Arctic Freezer 4U-M CPU Cooler

€65.10 incl tax

SKU: ST08828176

Manufacturer part number: ACFRE00171A

Manufacturer Homepage

Stock *

Stock	Delivery	Quantity	Price
LT	2 - 4 days	4	€65.10 incl tax
LV	2 - 5 days	4	€71.80 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

Producer	CPU cooler
Producer	Case cooler 120 mm.
Producer	Case cooler 200 mm.
Producer	Case cooler 30 mm.
Producer	Thermo paste
CPU Socket	-Socket TR4

Weight	1.548
Gross weight	1.6
Description
	General Specifications Compatibility: Intel®: LGA4189, LGA4677 AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8 Thermal Compound: MX-6 (0.8 g) Weight: 1275 g Dimensions: 124 (L) x 156 (W) x 145 (H) mm Server Rack Unit: 4U & up Operating Ambient Temperature: 0–40 °C Heatsink Specifications Heat Pipes: Direct Touch, Ø 6 mm x 8 Number of Fins: 57 Fin Material: Aluminium Fan Specifications Fans: 2 x 120 mm PWM Fans Fan Speed: 400–2300 rpm, PWM Controlled Connector: 4-Pin Plug Cable Length: 200 mm Bearing: Double Ball Bearing Noise Level: 40 dBA Current \| Voltage: 0.12 A \| 12 V DC Startup Voltage: 8 V DC
	Vispārējās specifikācijas Saderība: Intel®: LGA4189, LGA4677 AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8 Termiskā pasta: MX-6 (0,8 g) Svars: 1275 g Izmēri: 124 (G) x 156 (P) x 145 (A) mm Serveru plaukta vienība: 4U un augstāka Darbības temperatūras diapazons: 0–40 °C Radiatora specifikācijas Siltuma caurules: Direct Touch, Ø 6 mm x 8 Finu skaits: 57 Fina materiāls: alumīnijs Ventilatora specifikācijas Ventilatori: 2 x 120 mm PWM ventilatori Ventilatora ātrums: 400–2300 apgr./min, PWM vadība Savienotājs: 4-pinu kontaktligzda Kabeļa garums: 200 mm Gultnis: dubults lodīšu gultnis Troksnis: 40 dBA Strāva \| Spriegums: 0,12 A \| 12 V DC Palaidšanas spriegums: 8 V DC
	Общие характеристики Совместимость: Intel®: LGA4189, LGA4677 AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8 Термопаста: MX-6 (0.8 г) Вес: 1275 г Размеры: 124 (Д) x 156 (Ш) x 145 (В) мм Серверная стойка: 4U и выше Рабочая температура окружающей среды: 0–40 °C Характеристики радиатора Тепловые трубки: Direct Touch, Ø 6 мм x 8 Количество ребер: 57 Материал ребер: алюминий Характеристики вентилятора Вентиляторы: 2 x 120 мм PWM вентиляторов Скорость вентилятора: 400–2300 об/мин, управление PWM Разъем: 4-контактный штекер Длина кабеля: 200 мм Подшипник: двойной шариковый подшипник Уровень шума: 40 дБА Ток \| Напряжение: 0.12 A \| 12 V DC Напряжение запуска: 8 V DC

Description

Arctic Freezer Freezer U-M Ampere is a compact, multicompatile server CPU cooler. Compatile with Intel Xeon, AMD Ryzen, AMD Epyc processors. Freezer U-M Ampere now is compatile with the latest Altra ARM CPUs from Ampere, LGA926rFeatures: uVersatile multi-compatile server cooler.u The Freezer U-M Ampere stands as a multi-compatile server cooler, oasting an epansive contact surface and an enhanced mounting mechanism. It now offers compatiility with a wide range of Intel and AMD server processors, including Intel's LGA 189 and LGA 677, as well as AMD's SP6, sTR5, SP3, TR, sTRX, and sWRX8 sockets. It also supports the Ampere Altra LGA926. Remarkaly, despite its impressive cooling capailities, the Freezer U-M Ampere consumes a mere 2.88 watts, ensuring eceptional efficiency in cooling even the most powerful processors with up to 6 cores and a TDP of up to 350 watts.uDesigned for continuous operation.u Both fans of the Freezer U-M Ampere are equipped with dual all earings, which allows for 27 continuous operation without the slightest compromise in performance. This type of earing is much more resistant to contamination and wear caused y high temperatures than conventional sleeve earings or Fluid-Dynamic earings and is therefore the perfect choice if you want to ensure fault-free continuous operation.uCompact design and dual socket compatiility.u With an optimised installation height of only 15 mm, it fits into oth classic U server racks and most consumer U cases availale on the market. The Freezer U-M Ampere features a compact design with dimensions of just 156 12 mm. This also makes it suitale for dual-socket motheroards. To adjust the airflow direction if required, the fans can e easily swapped over.uRAM compatiility and clearance.u The Freezer U-M Ampere offers a spacious 53 mm of RAM clearance, allowing for the use of memory sticks with moderate heatsinks. This clearance allows efficient airflow and enales compatiility with different RAM variants.uPowerful fans in Push-Pull configurationu. The installed PWM fans enefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer U-M Ampere's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations enefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused y heat.uPremium thermal paste included.u The Freezer U-M Ampere comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat uild-up etween the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore asolutely safe to use.rSpecifications: Heat pipe: Direct Touch, 8 6 mm.Radiator material: aluminum.Numer of fins: 57.Thermal paste: MX-6 (0.8g).Fans: 2 120 mm PWM.Fan speed: 00-2300 RPM.Static pressure: 3.30 mm H2O.Air flow: 71.90 cfm 122.16 m³h.Connector: -Pin.Cale length: 200 mm.Bearing: dual all earing.Noise level: 0dBA.Voltagecurrent: 12V DC 0.12A.Startup voltage: 8V DC.Dimensions: 12mm 156mm 15mm.Weight: 1275g.Color: lack light gray.rCompatiility: Ampere LGA926.Intel LGA189.Intel LGA677.AMD SP6.AMD SP3.AMD sTR5.AMD TR.AMD sTRX.AMD sWRX8.Warranty: 6 years.

Products specifications

1
Details 2
Details 3

Producer	CPU cooler
Producer	Case cooler 120 mm.
Producer	Case cooler 200 mm.
Producer	Case cooler 30 mm.
Producer	Thermo paste
CPU Socket	-Socket TR4

Weight	1.548
Gross weight	1.6
Description
	General Specifications Compatibility: Intel®: LGA4189, LGA4677 AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8 Thermal Compound: MX-6 (0.8 g) Weight: 1275 g Dimensions: 124 (L) x 156 (W) x 145 (H) mm Server Rack Unit: 4U & up Operating Ambient Temperature: 0–40 °C Heatsink Specifications Heat Pipes: Direct Touch, Ø 6 mm x 8 Number of Fins: 57 Fin Material: Aluminium Fan Specifications Fans: 2 x 120 mm PWM Fans Fan Speed: 400–2300 rpm, PWM Controlled Connector: 4-Pin Plug Cable Length: 200 mm Bearing: Double Ball Bearing Noise Level: 40 dBA Current \| Voltage: 0.12 A \| 12 V DC Startup Voltage: 8 V DC
	Vispārējās specifikācijas Saderība: Intel®: LGA4189, LGA4677 AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8 Termiskā pasta: MX-6 (0,8 g) Svars: 1275 g Izmēri: 124 (G) x 156 (P) x 145 (A) mm Serveru plaukta vienība: 4U un augstāka Darbības temperatūras diapazons: 0–40 °C Radiatora specifikācijas Siltuma caurules: Direct Touch, Ø 6 mm x 8 Finu skaits: 57 Fina materiāls: alumīnijs Ventilatora specifikācijas Ventilatori: 2 x 120 mm PWM ventilatori Ventilatora ātrums: 400–2300 apgr./min, PWM vadība Savienotājs: 4-pinu kontaktligzda Kabeļa garums: 200 mm Gultnis: dubults lodīšu gultnis Troksnis: 40 dBA Strāva \| Spriegums: 0,12 A \| 12 V DC Palaidšanas spriegums: 8 V DC
	Общие характеристики Совместимость: Intel®: LGA4189, LGA4677 AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8 Термопаста: MX-6 (0.8 г) Вес: 1275 г Размеры: 124 (Д) x 156 (Ш) x 145 (В) мм Серверная стойка: 4U и выше Рабочая температура окружающей среды: 0–40 °C Характеристики радиатора Тепловые трубки: Direct Touch, Ø 6 мм x 8 Количество ребер: 57 Материал ребер: алюминий Характеристики вентилятора Вентиляторы: 2 x 120 мм PWM вентиляторов Скорость вентилятора: 400–2300 об/мин, управление PWM Разъем: 4-контактный штекер Длина кабеля: 200 мм Подшипник: двойной шариковый подшипник Уровень шума: 40 дБА Ток \| Напряжение: 0.12 A \| 12 V DC Напряжение запуска: 8 V DC
