Manufacturer: CISCO

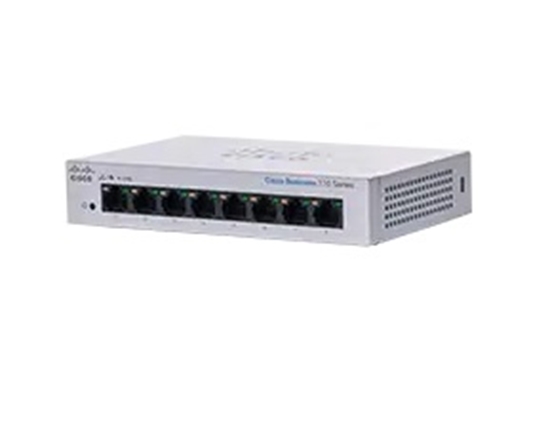

Cisco CBS110 Unmanaged L2 Gigabit Ethernet (10/100/1000) Grey

€53.81 incl tax

SKU: ST04580052

Manufacturer part number: CBS110-8T-D-EU

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	80	€53.81 incl tax

Qty:

Specifications

Products specifications

1
Details 2
Details 3

RJ-45 port	8
WRL stadarti	802.11b
Properties	RJ-45

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Full duplex	Y
Half duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Head-of-line (HOL) blocking	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
MAC address table	8192 entries
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
Number of queues	4
Jumbo frames support	Y
Jumbo frames	9216
Queue scheduling algorithms	Weighted Round Robin (WRR)
Rack mounting	N
Product colour	Grey
LED indicators	Y
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Mean time between failures (MTBF)	2066844 h
Power supply included	Y
Redundant power supply (RPS) support	N
Number of power supply units	1
DC input voltage	12 V
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	14.09 BTU/h
Width	160 mm
Depth	104 mm
Height	30 mm
Weight	430 g
Quick start guide	Y
Description
Description	Cisco CBS110. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x. DC input voltage: 12 V

Description	CISCO CBS110 Unmanaged 8-port GE Switch
VatType	VAT
Weight	0.707000000
Height	57.000000000
Width	160.000000000
Length	287.000000000
Description
Description	CISCO CBS110 Unmanaged 8-port GE Switch

Products specifications

1
Details 2
Details 3

RJ-45 port	8
WRL stadarti	802.11b
Properties	RJ-45

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Full duplex	Y
Half duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Head-of-line (HOL) blocking	Y
Ethernet LAN data rates	10,100,1000 Mbit/s
MAC address table	8192 entries
Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
Number of queues	4
Jumbo frames support	Y
Jumbo frames	9216
Queue scheduling algorithms	Weighted Round Robin (WRR)
Rack mounting	N
Product colour	Grey
LED indicators	Y
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Mean time between failures (MTBF)	2066844 h
Power supply included	Y
Redundant power supply (RPS) support	N
Number of power supply units	1
DC input voltage	12 V
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	14.09 BTU/h
Width	160 mm
Depth	104 mm
Height	30 mm
Weight	430 g
Quick start guide	Y
Description
Description	Cisco CBS110. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x. DC input voltage: 12 V

Description	CISCO CBS110 Unmanaged 8-port GE Switch
VatType	VAT
Weight	0.707000000
Height	57.000000000
Width	160.000000000
Length	287.000000000
Description
Description	CISCO CBS110 Unmanaged 8-port GE Switch
