    • Level One LevelOne SFP-3411 tīkla raiduztvērēja modulis Optiskā škiedra 1250 Mbit/s 1310 nm
    Manufacturer: LEVELONE

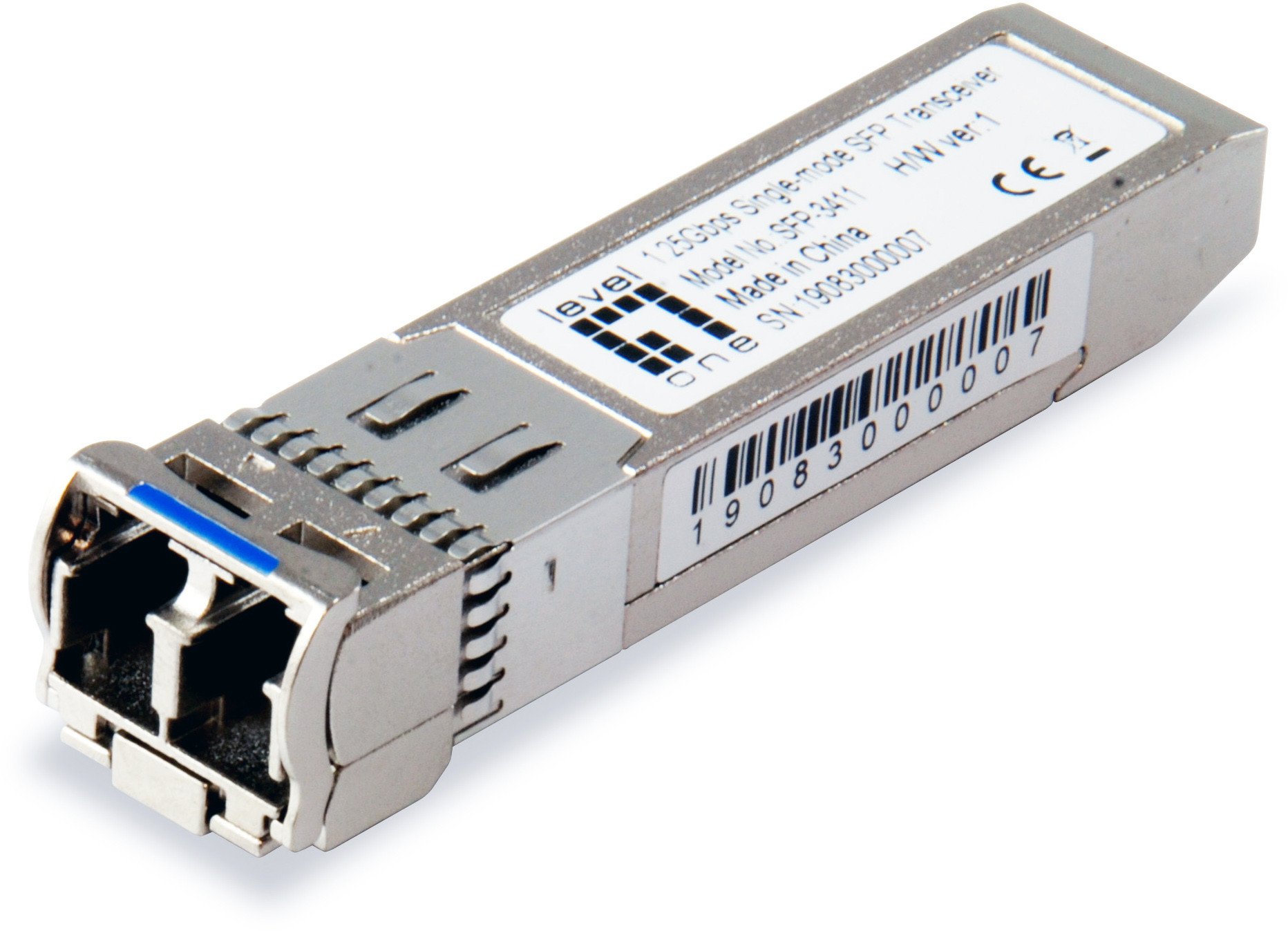

    Level One LevelOne SFP-3411 tīkla raiduztvērēja modulis Optiskā škiedra 1250 Mbit/s 1310 nm


    €46.05 incl tax

    SKU: ST09628966
    Manufacturer part number: SFP-3411
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    weight22 g
    maximum data transfer rate1250 Mbit/s
    height14 mm
    width57 mm
    depth12 mm
    input voltage3.3 V
    country of originChina
    networking standardsIEEE 802.3z
    copper ethernet cabling technology1000BASE
    product colourSilver
    operating temperature (t-t)0 - 70 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)0 - 85%
    storage relative humidity (h-h)0 - 85%
    package width106 mm
    package depth20 mm
    package height65 mm
    package weight40 g
    certificationEMC Directive 2014/53/EU IEC 61000-4-3 / IEC 61000-4-2
    harmonized system (hs) code85369010
    quantity per pack1 pc(s)
    package typeBox
    compliance certificatesRoHS
    maximum transfer distance40000 m
    wavelength1310 nm
    fiber cable diameters supported (core/cladding)9/125 µm
    tx power (min)-5 dBmW
    tx power (max)0 dBmW
    fiber optic connectorLC
    hot-swapYes
    user guideYes
    sfp transceiver typeFiber optic
    interface typeSFP
    multi-mode fiber (mmf) supportedNo
    single-mode fiber (smf) supportedYes
    maximum current0.25 A
    safetyEMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B) VCCI Class B, Class 1 Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1/2
    link budget20 dB
    sfp transceiver standardLX
    rx power (min)-25 dBmW
    rx power (max)-2 dBmW
    receive power-25 - - 2 dBmW
    digital diagnostics monitoring (ddm)Yes
    Description
    LevelOne SFP-3411. SFP veids raiduztvērēja veids: Optiskā škiedra, Maksimālais datu pārraides ātrums: 1250 Mbit/s, Interfeisa tips: SFP. Produkta krāsa: Sudrabs. Ieejas spriegums: 3.3 V, Maksimālā strāva: 0,25 A. Atbilstības sertifikāti: RoHS, Drošība: EMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B) VCCI Class B, Class 1 Laser..., Sertifikācija: EMC Directive 2014/53/EU IEC 61000-4-3 / IEC 61000-4-2. Platums: 57 mm, Dziļums: 12 mm, Augstums: 14 mm

    Products specifications
    weight22 g
    maximum data transfer rate1250 Mbit/s
    height14 mm
    width57 mm
    depth12 mm
    input voltage3.3 V
    country of originChina
    networking standardsIEEE 802.3z
    copper ethernet cabling technology1000BASE
    product colourSilver
    operating temperature (t-t)0 - 70 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)0 - 85%
    storage relative humidity (h-h)0 - 85%
    package width106 mm
    package depth20 mm
    package height65 mm
    package weight40 g
    certificationEMC Directive 2014/53/EU IEC 61000-4-3 / IEC 61000-4-2
    harmonized system (hs) code85369010
    quantity per pack1 pc(s)
    package typeBox
    compliance certificatesRoHS
    maximum transfer distance40000 m
    wavelength1310 nm
    fiber cable diameters supported (core/cladding)9/125 µm
    tx power (min)-5 dBmW
    tx power (max)0 dBmW
    fiber optic connectorLC
    hot-swapYes
    user guideYes
    sfp transceiver typeFiber optic
    interface typeSFP
    multi-mode fiber (mmf) supportedNo
    single-mode fiber (smf) supportedYes
    maximum current0.25 A
    safetyEMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B) VCCI Class B, Class 1 Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1/2
    link budget20 dB
    sfp transceiver standardLX
    rx power (min)-25 dBmW
    rx power (max)-2 dBmW
    receive power-25 - - 2 dBmW
    digital diagnostics monitoring (ddm)Yes
    Description
    LevelOne SFP-3411. SFP veids raiduztvērēja veids: Optiskā škiedra, Maksimālais datu pārraides ātrums: 1250 Mbit/s, Interfeisa tips: SFP. Produkta krāsa: Sudrabs. Ieejas spriegums: 3.3 V, Maksimālā strāva: 0,25 A. Atbilstības sertifikāti: RoHS, Drošība: EMI compatible with FCC Part 15 Class B, EN55022 Class B (CISPR 22B) VCCI Class B, Class 1 Laser..., Sertifikācija: EMC Directive 2014/53/EU IEC 61000-4-3 / IEC 61000-4-2. Platums: 57 mm, Dziļums: 12 mm, Augstums: 14 mm
