    Manufacturer: LEVELONE

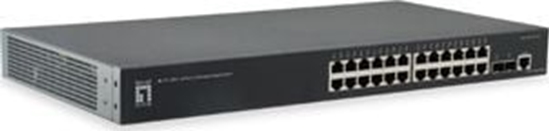

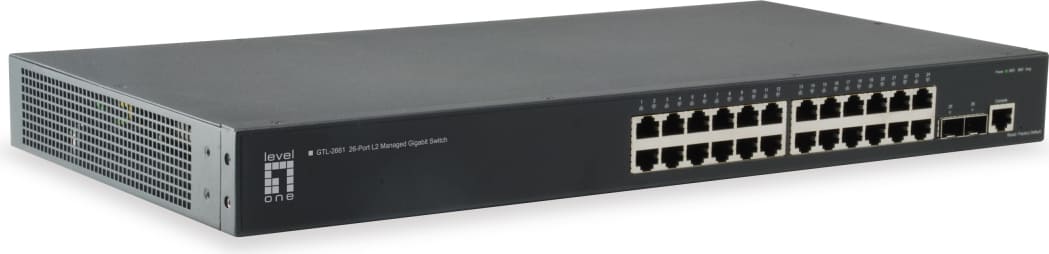

    LevelOne GTL-2661 KILBY 26-Port L2-Gigabit Switch


    €474.47 incl tax

    SKU: ST07367364
    Manufacturer part number: GTL-2661
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV
    PL

    Products specifications
    RJ-45 port 26
    WRL stadarti 802.11b
    Properties RJ-45
    power over ethernet (poe)No
    telnetYes
    weight2.29 kg
    height44 mm
    width220 mm
    depth440 mm
    switch typeManaged
    country of originChina
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity24
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportYes
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    port mirroringYes
    flow control supportYes
    link aggregationYes
    mac address table16000 entries
    switching capacity88 Gbit/s
    forwarding rate65.5 Mpps
    store-and-forwardYes
    packet buffer memory12 MB
    access control list (acl)Yes
    rack mountingYes
    product colourBlack
    led indicatorsActivity, Link, Power
    mean time between failures (mtbf)636219 h
    operating temperature (t-t)0 - 50 °C
    operating relative humidity (h-h)10 - 90%
    heat dissipation68.242 BTU/h
    package width405 mm
    package depth580 mm
    package height80 mm
    package weight3.02 kg
    certificationCE class A, FCC, VCCI, BSMI
    harmonized system (hs) code85176990
    package typeBox
    power sourceAC
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    cables includedAC, LAN (RJ-45)
    master (outer) case gross weight11 kg
    master (outer) case width340 mm
    master (outer) case length600 mm
    master (outer) case height435 mm
    products per master (outer) case4 pc(s)
    jumbo frames supportYes
    power consumption (typical)20 W
    resource cdYes
    safetyUL
    reset buttonYes
    quick start guideYes
    jumbo frames10000
    rack mount kitYes
    internal memory32 MB
    spanning tree protocolYes
    supported network protocolsIPv4/IPv6
    fanlessYes
    static routeYes
    vlan supportYes
    firmware upgradeableYes
    dos attack preventionYes
    system event logYes
    sfp+ module slots quantity2
    broadcast storm controlYes
    rate limitingYes
    dhcp featuresDHCP snooping, DHCP relay, DHCPv6 snooping, DHCP client
    static port securityYes
    ssh/ssl supportYes
    virtual lan featuresTagged VLAN, MAC address-based VLAN, Port-based VLAN
    number of queues8
    console portRJ-45
    traffic classificationYes
    bpdu filtering/protectionYes
    cable length detectionYes
    password protectionYes
    Description
    LevelOne GTL-2661. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 88 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Statņa montāža

    Products specifications
    RJ-45 port 26
    WRL stadarti 802.11b
    Properties RJ-45
    power over ethernet (poe)No
    telnetYes
    weight2.29 kg
    height44 mm
    width220 mm
    depth440 mm
    switch typeManaged
    country of originChina
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity24
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportYes
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    port mirroringYes
    flow control supportYes
    link aggregationYes
    mac address table16000 entries
    switching capacity88 Gbit/s
    forwarding rate65.5 Mpps
    store-and-forwardYes
    packet buffer memory12 MB
    access control list (acl)Yes
    rack mountingYes
    product colourBlack
    led indicatorsActivity, Link, Power
    mean time between failures (mtbf)636219 h
    operating temperature (t-t)0 - 50 °C
    operating relative humidity (h-h)10 - 90%
    heat dissipation68.242 BTU/h
    package width405 mm
    package depth580 mm
    package height80 mm
    package weight3.02 kg
    certificationCE class A, FCC, VCCI, BSMI
    harmonized system (hs) code85176990
    package typeBox
    power sourceAC
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    cables includedAC, LAN (RJ-45)
    master (outer) case gross weight11 kg
    master (outer) case width340 mm
    master (outer) case length600 mm
    master (outer) case height435 mm
    products per master (outer) case4 pc(s)
    jumbo frames supportYes
    power consumption (typical)20 W
    resource cdYes
    safetyUL
    reset buttonYes
    quick start guideYes
    jumbo frames10000
    rack mount kitYes
    internal memory32 MB
    spanning tree protocolYes
    supported network protocolsIPv4/IPv6
    fanlessYes
    static routeYes
    vlan supportYes
    firmware upgradeableYes
    dos attack preventionYes
    system event logYes
    sfp+ module slots quantity2
    broadcast storm controlYes
    rate limitingYes
    dhcp featuresDHCP snooping, DHCP relay, DHCPv6 snooping, DHCP client
    static port securityYes
    ssh/ssl supportYes
    virtual lan featuresTagged VLAN, MAC address-based VLAN, Port-based VLAN
    number of queues8
    console portRJ-45
    traffic classificationYes
    bpdu filtering/protectionYes
    cable length detectionYes
    password protectionYes
    Description
    LevelOne GTL-2661. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 88 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Statņa montāža
