    Manufacturer: LEVELONE

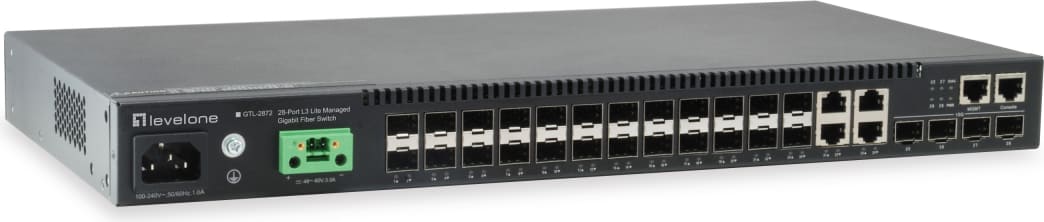

    LevelOne GTL-2872 KILBY 28-Port L3 Lite Gigabit Switch


    €936.66 incl tax

    SKU: ST07367560
    Manufacturer part number: GTL-2872
    Manufacturer Homepage
    Warranty: 12 months
    *
    Stock Delivery Quantity Price
    LV

    Products specifications
    RJ-45 port 28
    RJ-45 port 8
    Properties RJ-45
    auto mdi/mdi-xYes
    power over ethernet (poe)No
    telnetYes
    weight2.82 kg
    height44 mm
    width440 mm
    depth220 mm
    full duplexYes
    auto-negotiationYes
    switch typeManaged
    input voltage48 - 60 V
    country of originChina
    switch layerL3
    quality of service (qos) supportYes
    basic switching rj-45 ethernet ports typeNo
    sfp module slots quantity20
    networking standardsIEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z
    10g supportYes
    link aggregationYes
    mac address table16000 entries
    switching capacity128 Gbit/s
    forwarding rate95 Mpps
    access control list (acl)Yes
    rack mountingYes
    product colourBlack
    led indicatorsDiagnostic, Link, Power
    mean time between failures (mtbf)298951 h
    operating temperature (t-t)0 - 50 °C
    operating relative humidity (h-h)10 - 90%
    package width580 mm
    package depth405 mm
    package height80 mm
    package weight3.77 kg
    certificationCE, FCC, CISPR, BSMI
    harmonized system (hs) code85176990
    package typeBox
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    fiber optic connectorSFP
    cables includedAC
    master (outer) case gross weight16.6 kg
    master (outer) case width600 mm
    master (outer) case length435 mm
    master (outer) case height340 mm
    products per master (outer) case4 pc(s)
    jumbo frames supportYes
    power consumption (typical)21.48 W
    resource cdYes
    safetyUL (UL60950-1)
    quick start guideYes
    jumbo frames9000
    igmp snoopingYes
    rack mount kitYes
    internal memory512 MB
    static routeYes
    vlan supportYes
    flash memory256 MB
    sfp+ module slots quantity4
    static port securityYes
    redundant power supply (rps) supportYes
    fiber ethernet cabling technology10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 1000BASE-LHX, 1000BASE-SX, 1000BASE‑LX, 1000BASE‑ZX
    virtual lan featuresProtocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
    loop protectionYes
    management protocolsCLI, WEB, TELNET
    combo sfp ports quantity4
    console portRJ-45
    arp inspectionYes
    authenticationMAC-based authentication, Port-based authentication, Web-based authentication
    ipv4 & ipv6 featuresDual stack IPv4/IPv6
    garp vlan registration protocol (gvrp)Yes
    memory typeDRAM
    packet filteringCDP/PVST+
    Description
    LevelOne GTL-2872. Slēdža tips: Vadīts, Slēdža līmenis: L3. Konsoles pieslēgvieta: RJ-45. Pilns duplekss. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 128 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah,.... Statņa montāža

    Products specifications
    RJ-45 port 28
    RJ-45 port 8
    Properties RJ-45
    auto mdi/mdi-xYes
    power over ethernet (poe)No
    telnetYes
    weight2.82 kg
    height44 mm
    width440 mm
    depth220 mm
    full duplexYes
    auto-negotiationYes
    switch typeManaged
    input voltage48 - 60 V
    country of originChina
    switch layerL3
    quality of service (qos) supportYes
    basic switching rj-45 ethernet ports typeNo
    sfp module slots quantity20
    networking standardsIEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z
    10g supportYes
    link aggregationYes
    mac address table16000 entries
    switching capacity128 Gbit/s
    forwarding rate95 Mpps
    access control list (acl)Yes
    rack mountingYes
    product colourBlack
    led indicatorsDiagnostic, Link, Power
    mean time between failures (mtbf)298951 h
    operating temperature (t-t)0 - 50 °C
    operating relative humidity (h-h)10 - 90%
    package width580 mm
    package depth405 mm
    package height80 mm
    package weight3.77 kg
    certificationCE, FCC, CISPR, BSMI
    harmonized system (hs) code85176990
    package typeBox
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    fiber optic connectorSFP
    cables includedAC
    master (outer) case gross weight16.6 kg
    master (outer) case width600 mm
    master (outer) case length435 mm
    master (outer) case height340 mm
    products per master (outer) case4 pc(s)
    jumbo frames supportYes
    power consumption (typical)21.48 W
    resource cdYes
    safetyUL (UL60950-1)
    quick start guideYes
    jumbo frames9000
    igmp snoopingYes
    rack mount kitYes
    internal memory512 MB
    static routeYes
    vlan supportYes
    flash memory256 MB
    sfp+ module slots quantity4
    static port securityYes
    redundant power supply (rps) supportYes
    fiber ethernet cabling technology10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 1000BASE-LHX, 1000BASE-SX, 1000BASE‑LX, 1000BASE‑ZX
    virtual lan featuresProtocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
    loop protectionYes
    management protocolsCLI, WEB, TELNET
    combo sfp ports quantity4
    console portRJ-45
    arp inspectionYes
    authenticationMAC-based authentication, Port-based authentication, Web-based authentication
    ipv4 & ipv6 featuresDual stack IPv4/IPv6
    garp vlan registration protocol (gvrp)Yes
    memory typeDRAM
    packet filteringCDP/PVST+
    Description
    LevelOne GTL-2872. Slēdža tips: Vadīts, Slēdža līmenis: L3. Konsoles pieslēgvieta: RJ-45. Pilns duplekss. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 128 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah,.... Statņa montāža
