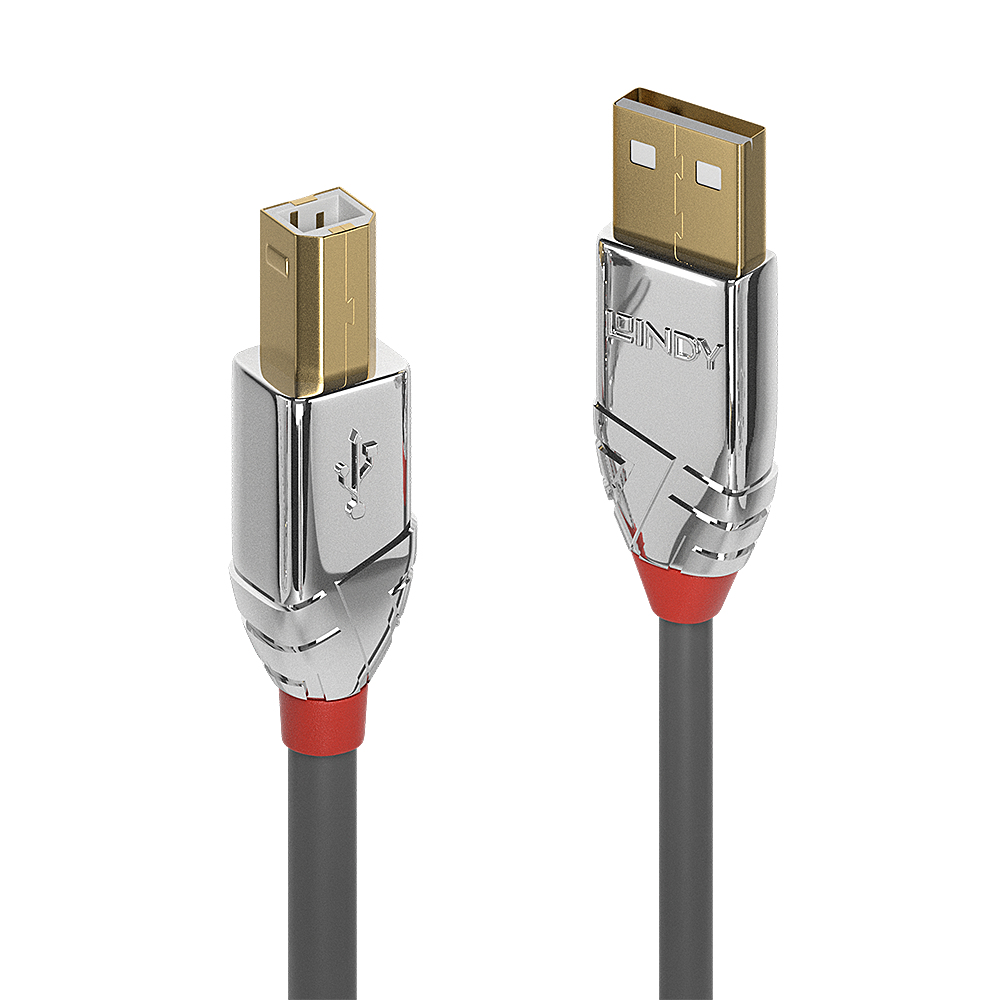

Lindy 7.5m USB 2.0 Type A to B Cable, Cromo Line

Connectors

• Connector A: USB 2.0 Type A Male
• Connector B: USB 2.0 Type B Male
• Housing Material: Chrome Plated, ABS
• Shielding in head shell: Tinplate
• Connector Plating: Gold 1µm
• Pin Construction: Brass
• Pin Plating: Gold 3µm
• Dimensions (approx.) WxDxH:
  • A: 16x35x8.3mm (0.63x1.38x0.34in)
  • B: 11.8x35x10.2mm (0.47x1.38x0.40in)

Cable Construction

• Length: 7.5m (24.61ft)
• Standard: USB 2.0
• Power Delivery: -
• Colour: Grey
• Type: Round
• Jacket Diameter: 4.6mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 24AWG
• Conductor Gauge Data: 28AWG
• Shielding: Tinned Copper Braid 85%

Specifications

• Supported Bandwidth: 480Mbps
• Maximum Resolution: -
• Nominal Attenuation: 0.5-400MHz < 7.0dB
• Minimum Bend Radius: 55mm (2.2in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65 & UL

Purchasing Information

• No.: 36645
• EAN: 4002888366458

This product is also available in other lengths

• 36640 - 0.5m (1.64ft)
• 36641 - 1m (3.28ft)
• 36642 - 2m (6.56ft)
• 36643 - 3m (9.84ft)
• 36644 - 5m (16.40ft)
• 36645 - 7.5m (24.61ft)
