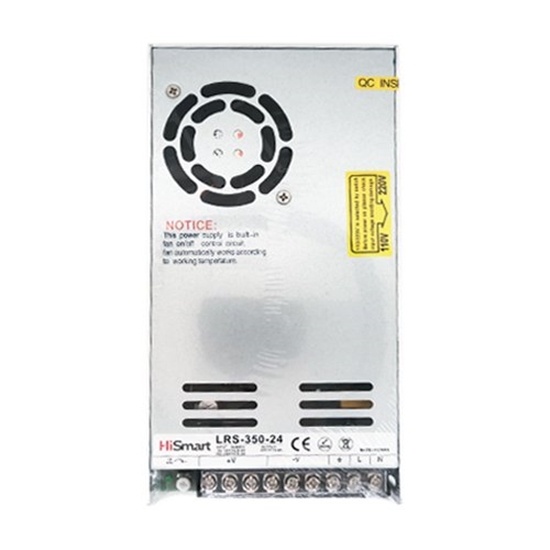

Picture of Power Adapter LRS-350-24 24V / 14.6A / 350W

Manufacturer: EXTRADIGITAL

Power Adapter LRS-350-24 24V / 14.6A / 350W

€30.86 incl tax

SKU: ST09814732

Manufacturer part number: LRS-350-24

Manufacturer Homepage

Stock *

	Stock	Delivery	Quantity	Price
	LV	2 - 5 days	5	€30.86 incl tax

Qty:

Specifications

Products specifications

Weight	0.1
Gross weight	0.12
Description
	Power supply 24V, 14.6A, 350W with fan. Features Thin type 1U profile switching power supply operating in pulse mode. Small volume, low weight, high efficiency. Protections: short circuit / over temperature / overload / over voltage. No load consumption: <0.75W. Operating altitude up to 5000 meters. Forced air cooling by built-in DC fan. Built-in cooling fan ON-OFF control. Specifications Type: switching power supply. Input range AC: 90-264V. Frequency 47-63Hz. Output voltage DC: 24V. DC voltage adjustable range: ±10%. Rated current: 14.6A. Rated power: 350.4W. AC current: 6.8A/115V, 3.4A/230V. Ripple and noise: 150mV p-p. Effieciency: 88%. Leakage current: <2mA / 240V AC. MBTF: min 295000 hours. Working temperature: -25°C~+70°C. Working humidity: 20%-90%RH. Dimension: 215x115x30mm. Weight: 0.76kg.
	Barošanas bloks 24V, 14.6A, 350W with fan. Īpašības Thin type 1U profile switching Barošanas bloks operating in pulse mode. kompakts izmērs, mazs svars un augsts lietderība. aizsardzība: īssavienojums / перегрев / pārslodze / pārspriegums. No load consumption: <0.75W. Operating altitude up to 5000 meters. Forced air cooling by built– in DC fan. Built– in cooling fan ON– OFF control. Specifikācijas Type: switching Barošanas bloks. Ievades sprieguma diapazons AC: 90– 264V. Frequency 47– 63Hz. Izejas spriegums DC: 24V. DC sprieguma regulēšanas diapazons: ±10%. Nominālā strāva: 14.6A. Nominālā jauda: 350.4W. strāva AC: 6.8A/115V, 3.4A/230V. Pulsācijas un troksnis: 150mV p– p. Lietderība: 88%. Noplūdes strāva: <2mA / 240V AC. MTBF: min 295000 hours. Darbības temperatūra: – 25°C~+70°C. Darbības mitrums: 20%– 90%RH. Izmēri: 215x115x30mm. Svars: 0.76kg.
	Блок питания 24V, 14.6A, 350W with fan. Особенности Thin type 1U profile switching Блок питания operating in pulse mode. Компактный размер, малый вес и высокий КПД. Защита: короткое замыкание / перегрев / перегрузка / перенапряжение. No load consumption: <0.75W. Operating altitude up to 5000 meters. Forced air cooling by built-in DC fan. Built-in cooling fan ON-OFF control. Характеристики Type: switching Блок питания. Диапазон входного напряжения AC: 90-264V. Frequency 47-63Hz. Выходное напряжение DC: 24V. Диапазон регулировки напряжения DC: ±10%. Номинальный ток: 14.6A. Номинальная мощность: 350.4W. Ток AC: 6.8A/115V, 3.4A/230V. Пульсации и шум: 150mV p-p. КПД: 88%. Ток утечки: <2mA / 240V AC. MTBF: min 295000 hours. Рабочая температура: -25°C~+70°C. Влажность при эксплуатации: 20%-90%RH. Габариты: 215x115x30mm. Вес: 0.76kg.

Products specifications

Weight	0.1
Gross weight	0.12
Description
	Power supply 24V, 14.6A, 350W with fan. Features Thin type 1U profile switching power supply operating in pulse mode. Small volume, low weight, high efficiency. Protections: short circuit / over temperature / overload / over voltage. No load consumption: <0.75W. Operating altitude up to 5000 meters. Forced air cooling by built-in DC fan. Built-in cooling fan ON-OFF control. Specifications Type: switching power supply. Input range AC: 90-264V. Frequency 47-63Hz. Output voltage DC: 24V. DC voltage adjustable range: ±10%. Rated current: 14.6A. Rated power: 350.4W. AC current: 6.8A/115V, 3.4A/230V. Ripple and noise: 150mV p-p. Effieciency: 88%. Leakage current: <2mA / 240V AC. MBTF: min 295000 hours. Working temperature: -25°C~+70°C. Working humidity: 20%-90%RH. Dimension: 215x115x30mm. Weight: 0.76kg.
	Barošanas bloks 24V, 14.6A, 350W with fan. Īpašības Thin type 1U profile switching Barošanas bloks operating in pulse mode. kompakts izmērs, mazs svars un augsts lietderība. aizsardzība: īssavienojums / перегрев / pārslodze / pārspriegums. No load consumption: <0.75W. Operating altitude up to 5000 meters. Forced air cooling by built– in DC fan. Built– in cooling fan ON– OFF control. Specifikācijas Type: switching Barošanas bloks. Ievades sprieguma diapazons AC: 90– 264V. Frequency 47– 63Hz. Izejas spriegums DC: 24V. DC sprieguma regulēšanas diapazons: ±10%. Nominālā strāva: 14.6A. Nominālā jauda: 350.4W. strāva AC: 6.8A/115V, 3.4A/230V. Pulsācijas un troksnis: 150mV p– p. Lietderība: 88%. Noplūdes strāva: <2mA / 240V AC. MTBF: min 295000 hours. Darbības temperatūra: – 25°C~+70°C. Darbības mitrums: 20%– 90%RH. Izmēri: 215x115x30mm. Svars: 0.76kg.
	Блок питания 24V, 14.6A, 350W with fan. Особенности Thin type 1U profile switching Блок питания operating in pulse mode. Компактный размер, малый вес и высокий КПД. Защита: короткое замыкание / перегрев / перегрузка / перенапряжение. No load consumption: <0.75W. Operating altitude up to 5000 meters. Forced air cooling by built-in DC fan. Built-in cooling fan ON-OFF control. Характеристики Type: switching Блок питания. Диапазон входного напряжения AC: 90-264V. Frequency 47-63Hz. Выходное напряжение DC: 24V. Диапазон регулировки напряжения DC: ±10%. Номинальный ток: 14.6A. Номинальная мощность: 350.4W. Ток AC: 6.8A/115V, 3.4A/230V. Пульсации и шум: 150mV p-p. КПД: 88%. Ток утечки: <2mA / 240V AC. MTBF: min 295000 hours. Рабочая температура: -25°C~+70°C. Влажность при эксплуатации: 20%-90%RH. Габариты: 215x115x30mm. Вес: 0.76kg.
