Manufacturer: SHUTTLE

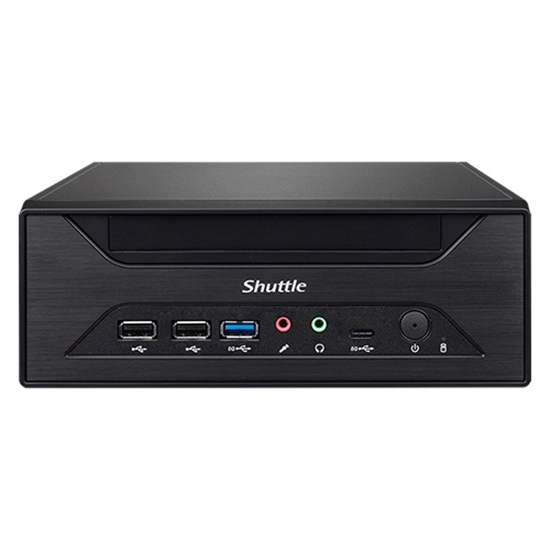

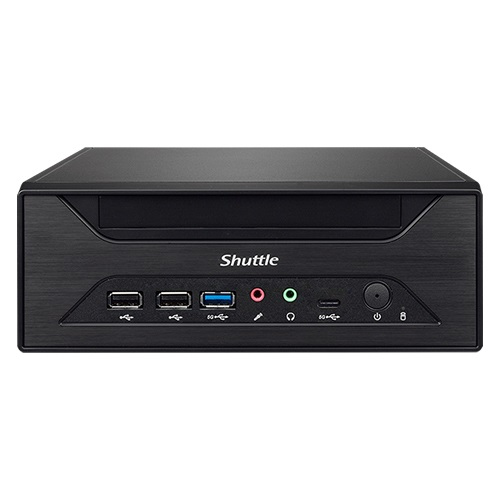

Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25", 2x 3.5", 2x M.2, 24/7 permanent operation

€375.20 incl tax

SKU: ST06606799

Manufacturer part number: XH610

Manufacturer Homepage

Warranty: 24 months

Stock *

	Stock	Delivery	Quantity	Price
	PL	8 - 15 days	15	€375.20 incl tax

Qty:

Specifications

Products specifications

1
Details 2

Hard drive (SSD)	64 GB

Built-in processor	No
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	2133,2400,2666,2933,3200 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory voltage	1.2 V
ECC	No
Non-ECC	Yes
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
Storage drive interface	M.2, PCI Express, Serial ATA III
NVMe	Yes
On-board graphics card	Yes
Graphics card family	Intel
Built-in speaker(s)	No
Ethernet LAN	Yes
Wi-Fi	No
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	1
DisplayPort version	1.4a
Microphone in	Yes
Headphone outputs	1
COM ports quantity	2
DC-in jack	Yes
Number of M.2 (M) slots	1
Chassis type	3.5L sized PC
Product colour	Black
Cooling type	Active
Product type	PC barebone
LED indicators	HDD, Power
Cable lock slot	Yes
Cable lock slot type	Kensington
Motherboard chipset	Intel H610
Processor socket	LGA 1700
Number of processors supported	1
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
BIOS type	AMI
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Operating system installed	No
Sustainability certificates	ENERGY STAR, ErP, RoHS
Country of origin	China
Harmonized System (HS) code	84733080
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Width	200 mm
Depth	238 mm
Height	72 mm
Weight	2.2 kg
Package weight	3.5 kg
Quick start guide	Yes
Drivers included	Yes
Description
Description	Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25", 2x 3.5", 2x M.2, 24/7 permanent operation. Chassis type: 3.5L sized PC, Product type: PC barebone. Motherboard chipset: Intel H610, Processor socket: LGA 1700, BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2, PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 120 W

Products specifications

1
Details 2

Hard drive (SSD)	64 GB

Built-in processor	No
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	64 GB
Supported memory clock speeds	2133,2400,2666,2933,3200 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Memory voltage	1.2 V
ECC	No
Non-ECC	Yes
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
Storage drive interface	M.2, PCI Express, Serial ATA III
NVMe	Yes
On-board graphics card	Yes
Graphics card family	Intel
Built-in speaker(s)	No
Ethernet LAN	Yes
Wi-Fi	No
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	1
DisplayPort version	1.4a
Microphone in	Yes
Headphone outputs	1
COM ports quantity	2
DC-in jack	Yes
Number of M.2 (M) slots	1
Chassis type	3.5L sized PC
Product colour	Black
Cooling type	Active
Product type	PC barebone
LED indicators	HDD, Power
Cable lock slot	Yes
Cable lock slot type	Kensington
Motherboard chipset	Intel H610
Processor socket	LGA 1700
Number of processors supported	1
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
BIOS type	AMI
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Operating system installed	No
Sustainability certificates	ENERGY STAR, ErP, RoHS
Country of origin	China
Harmonized System (HS) code	84733080
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Width	200 mm
Depth	238 mm
Height	72 mm
Weight	2.2 kg
Package weight	3.5 kg
Quick start guide	Yes
Drivers included	Yes
Description
Description	Shuttle XPC slim Barebone XH610 - S1700, Intel H610, 1xDP, 1xHDMI, 1x VGA, 2x COM (RS232), 2x LAN (2.5G and 1G), 1x slim5.25", 2x 3.5", 2x M.2, 24/7 permanent operation. Chassis type: 3.5L sized PC, Product type: PC barebone. Motherboard chipset: Intel H610, Processor socket: LGA 1700, BIOS type: AMI. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD, Storage drive interface: M.2, PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 2. Cooling type: Active. Power supply: 120 W
