Производитель: LINDY

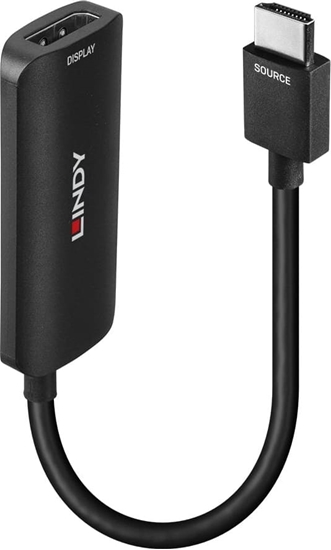

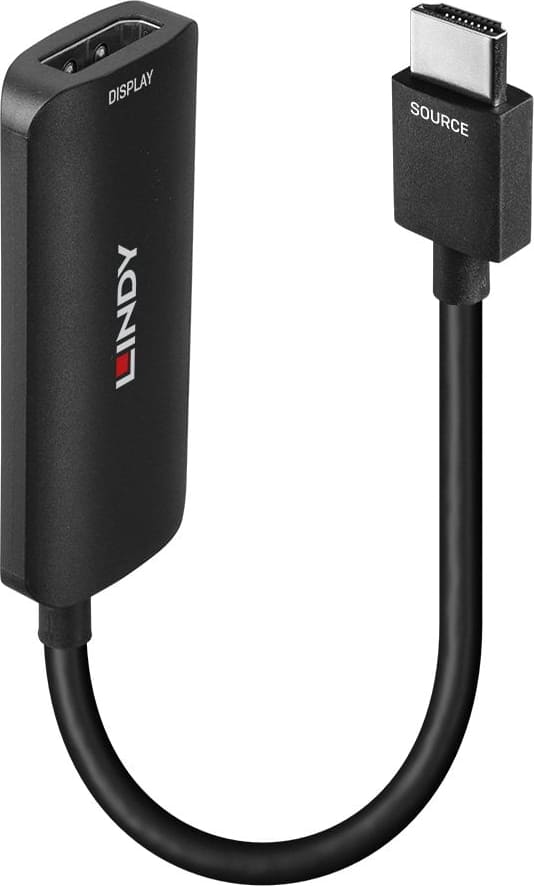

Lindy HDMI 8K60 to DisplayPort 1.4 Converter

€103,76 с налогом

Артикул: ST08437179

Код производителя: 38329

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
LV	7 - 12 дня	256	€103,76 с налогом
PL	8 - 15 дня	3	€109,18 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Свойства	HDMI
Свойства	Display port
Свойства	USB
цвет	Черный

chipset

LT6711GX_U2

hdcp

Yes

weight

30 g

gross weight

0.04

data transfer rate

48 Gbit/s

cable length

0.157 m

country of origin

product colour

Black

operating temperature (t-t)

0 - 40 °C

storage temperature (t-t)

-20 - 45 °C

operating relative humidity (h-h)

20 - 70%

storage relative humidity (h-h)

20 - 70%

connector 1

HDMI Type A (Standard)

connector 2

DisplayPort

connector 1 gender

Male

connector 2 gender

Female

package type

Polybag

power source

USB

jacket material

Polyvinyl chloride (PVC)

connector 1 form factor

Straight

connector 2 form factor

Straight

maximum resolution

7680 x 4320 pixels

displayport version

1.4

maximum refresh rate

120 Hz

packaging content

USB Type A to Micro-B Cable

warranty period

2 year(s)

cable diameter

4.8 mm

hdmi version

2.1

refresh rate at maximum resolution

60 Hz

hdcp version

2.3

bend radius (min)

2.5 cm

connector housing material

Acrylonitrile butadiene styrene (ABS)

net weight

0.03

packaging height

19.40

packaging lenght

17.40

packaging width

2.00

warranty

ce doc

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/af/a7/01/65/6501a7af4c04fc42adaef97d/CE_DoC_DE_38329.pdf

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/af/a7/01/65/6501a7af4c04fc42adaef97d/CE_DoC_DE_38329.pdf

Description

Specifications

AV Interface: HDMI® to DisplayPort
Interface Standard: HDMI®, DisplayPort
Supported Bandwidth: 48Gbps
Maximum Input Resolution:
- 3840x2160@120Hz 4:4:4 8Bit
- 7680x4320@60Hz 4:2:0 8Bit
Maximum Output Resolution:
- 3840x2160@120Hz 4:4:4 8Bit
- 7680x4320@60Hz 4:2:0 8Bit
Chipset: LT6711GX_U2
HDCP Support: 2.3
Supported Audio: 7.1, Stereo
Separate Audio Ports: -
Special Features: Power via USB

Connectors

Input: HDMI® Type A (Male)
Output:
- DisplayPort (Female)
- USB Micro-B (Female)

Physical Properties

Dimensions (approx.) WxDxH:
- HDMI®: 30x8x17mm (1.18x0.31x0.67in)
- DP: 71x12x31mm (2.8x0.47x1.22in)
Cable Length: 157mm (6.18in), USB cable: 0.5m (1.64ft)
Housing Material: ABS
Jacket Material: PVC
Jacket Diameter: 4.8mm (0.19in)
Minimum Bend Radius: 25mm (0.98in)
Net Weight: 0.03kg (0.07lb)
Operating Temperature: 0Â°C - 40Â°C (32Â°F - 104Â°F)
Storage Temperature: -20Â°C - 45Â°C (-4Â°F - 113Â°F)
Humidity: 20 - 70% RH (non-condensing)
Colour: Black

Miscellaneous

Packaging Type: Polybag
Packaging Dimensions: 174x194x20mm (6.85x7.64x0.79in)
Gross Weight: 0.04kg (0.09lb)
Warranty (Years): 2
Product Compliance: CE, UKCA, FCC, RoHS & REACH

Package Contents

HDMI® to DisplayPort Converter
USB Type A to Micro-B Cable

Purchasing Information

No.: 38329
EAN: 4002888383295

CE Doc: CE_DoC_DE_38329.pdf
