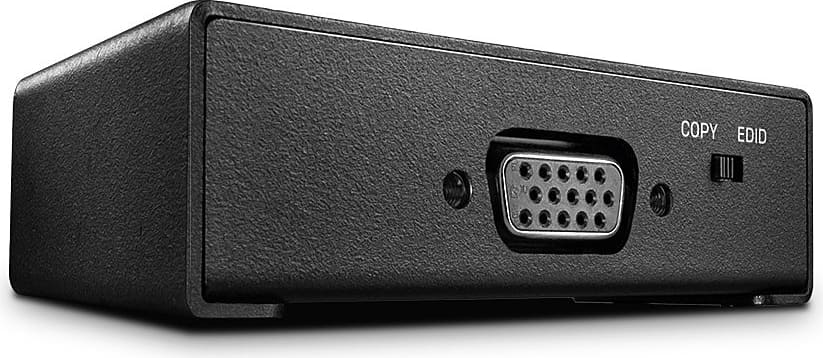

Lindy HDMI, VGA, DVI EDID Recorder

Specification

• AV Interface: HDMI® / VGA / DVI
• Interface Standard: 2.0
• Supported Bandwidth:
  • HDMI®: 18Gbps
  • VGA: 4.95Gbps
  • DVI: 9.9Gbps
• Maximum Resolution:
  • HDMI®: 3840x2160@60Hz 4:4:4 8bit
  • VGA: 1920x1200@60Hz
  • DVI: 2560x1600@60Hz
• Video EDID: -
• Audio EDID: -
• HDCP Support: -
• Special Features: -

Connectors

• Input: HDMI® Type A (Female), VGA (Female), DVI-D (Female)
• Output: -
• Power: 3.5/1.35mm

Physical Properties

• Dimensions (approx.) WxDxH: 48x22x73mm (1.89x0.87x2.87in)
• Housing Material: Metal
• Net Weight: 0.234kg (0.52lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 5VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 185x55x140mm (7.28x2.17x5.51in)
• Gross Weight: 0.313kg (0.69lb)
• Warranty (Years): 2
• Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

Package Contents

• EDID Recorder
• Multi-country PSU (UK, EU, US & AUS)
• Lindy Manual

Purchasing Information

• No.: 32120
• EAN: 4002888321204
