    Производитель: EATON

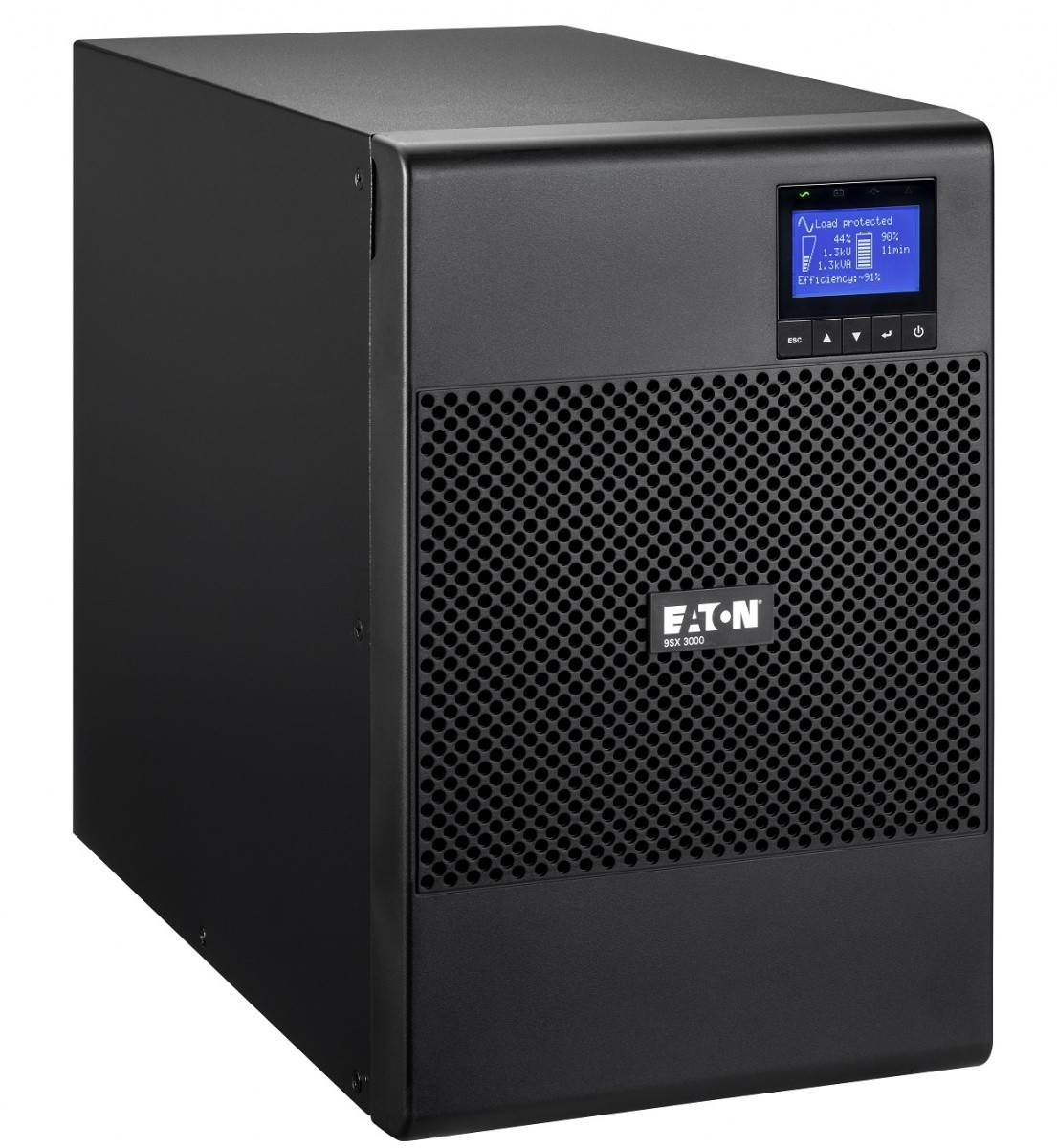

    Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)


    €2316,45 с налогом

    Артикул: ST03305404
    Код производителя: 9SX3000I
    Сайт производителя
    гарантия: 24 месяцы
    *
    Склад Доставка Наличие Цена
    DE
    PL

    Характеристики
    гнездo (IEC320) да
    гнездo (RS232) да
    Тип Double Conversion Online
    Выходная мощность 2700
    UPS стабилизаторы напряжения 3000
    гнездo (USB) да
    Тип Online
    Apparent power3000 VA
    Active power2700 (Watt)
    UPS Architectureon-line double conversion
    Number of phases input1 (230V)
    Voltage230 (Volt)
    Charging time30 (Minute)
    Chassis typeTower
    Filters / protectionOverdischarge
    Input power portsIEC-C20
    Output power ports8 x IEC-C13
    Output power ports1 x IEC-C19
    I/O connectors1 x USB 2.0
    I/O connectors1 x RS-232 (COM)
    Environment requirements
    • Temperatura podczas pracy: 0-40 st.C
    • Poziom hałasu: 45 dB
    Accessories included
    • 1 europejski wejściowy kabel zasilający 16 A (1,8 m),
    • 2 przewody wyjściowe IEC10A (1,8 m),
    • 1 kabel USB (1,8 m),
    • 1 kabel szeregowy (1,8 m),
    • Skrócona instrukcja obsługi,
    • Instrukcja bezpieczeństwa.
    ColorBlack
    Dimensions

    346 x 214 x 412 mm
    Weight33.4 (kilogram)
    Other features
    • 1 blok mini-zacisków do zdalnego wyłączania zasilania (konfigurowalny)
    • 1 blok mini-zacisków do przekaźnika wyjściowego
    • 1 gniazdo do opcjonalnego modułu komunikacyjnego
    DesignationCE+WEEE
    Width490
    Height580
    Depth320
    Weight37000
    Description

    Zasilacz UPS z podwójną konwersją online 3000 VA/2700 W, wielojęzyczny wyświetlacz LCD, licznik energii, 8 gniazd IEC 10 A + 1 IEC 16 A (2 zarządzalne grupy), gniazdo na opcjonalną kartę zarządzania, USB i porty szeregowe, styki bezpotencjałowe, złącze RPO, oprogramowanie do zarządzania zasilaniem kompatybilne z wirtualnym środowiskiem, baterie wymienialne podczas pracy urządzenia, długi czas pracy awaryjnej z czterema opcjonalnymi modułami EBM.
    UPS topologyDouble-conversion (Online)
    Output power capacity3 kVA
    Output power2700 W
    WaveformPure sine
    Input operation voltage (min)200 V
    Input operation voltage (max)276 V
    Input frequency40/70 Hz
    Output operation voltage (min)200 V
    Output operation voltage (max)240 V
    Output frequency50/60 Hz
    Number of input phases1
    Number of output phases1
    Power factor0.9
    ECO modeNo
    Noise level45 dB
    AC outlet typesC13 coupler, C19 coupler
    Power plugC20 coupler
    AC outlets quantity9 AC outlet(s)
    USB portYes
    USB 2.0 ports quantity1
    Serial interfaceYes
    Serial interface typeRS-232
    RS-232 ports1
    Battery technologySealed Lead Acid (VRLA)
    Typical backup time at half load15.5 min
    Hot-swap batteryYes
    Automatic battery testYes
    Form factorTower
    Product colourBlack
    Display typeLCD
    SafetyIEC/EN 62040-1, UL 1778, CSA 22.2
    CertificationIEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
    Operating temperature (T-T)0 - 40 °C
    Width214 mm
    Depth412 mm
    Height346 mm
    Weight33.4 kg
    Management card includedNo
    Bundled softwareIntelligent Power Software suite
    Harmonized System (HS) code85078000
    Input connection typeIEC C20
    Nominal output voltage230 V
    Nominal input voltage230 V
    Description
    Eaton 9SX. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 15.5 min. Form factor: Tower, Product colour: Black, Display type: LCD. Width: 214 mm, Depth: 412 mm, Height: 346 mm
    manufacturerEaton
    product groupUSV
    product typeUPS Online
    colourblack
    weight33.4 kg
    height of packaging (single piece)0 mm
    width of packaging (single piece)0 mm
    depth of packaging (single piece)0 mm
    package weight (single piece)33.4 kg
    gross weight33.4
    current catalog edition24.1
    current catalog page10.11
    height0.320
    width0.490
    depth0.570
    operating temperature min.-20 °C
    operating temperature max.40 °C
    dimensions (hxwxd)346 x 214 x 412 mm
    interfaceRS232, USB, MS-Slot, EPO
    mounting formTurm
    rs-232 interfaceja
    usb 2.0 interfaceja
    conformityIEC/EN 62040-1, UL 1778, CSA 22.2; IEC/EN 62040 -2 , FCC ...
    acoustic level<45dB
    classification (iec 62040-3)VFI-SS-111
    ups technologyOnline
    output (va/w)3000 / 2700
    backup time full/half-load6 / 15 min
    voltage (input)190- 276 V without derating; 120 - 276 V with derating
    voltage (output)200/208/220/230/240V
    frequency40-70Hz, 50/60Hz autoselection, frequency converter mode
    connector type (input)C20
    connector type (output)(8) C13, (1) C19
    phase in/output230V/230V / 50Hz
    over current protectionEMI,- RFI-Filter
    slot for adapter cardMS-Slot
    additional over current protectornein
    activity displaymultilinugual
    incl.management softwarefür die gängigen OS
    internal coolingAktiv, Lüfter
    ambient temperatureElektronik -20°C bis +40°C; Batterien 20°C bis 25°C nach ...
    output voltage regulation+/-??????????????%
    hot swap batteriesJa, Frontseite
    bypassautomatisch + manuell
    activity led4
    efficiency????????????????????????????? %
    delay expansion unit4x 9SXEBM96T
    backup time6 min
    max. quantity of delay expansion units4
    Description
    DescriptionEATON 9SX 3000i
    VatTypeVAT
    Weight32.700000000
    Height320.000000000
    Width490.000000000
    Length570.000000000
    Description
    EATON 9SX 3000i
    DescriptionEATON 9SX 3000i
    VatTypeVAT
    Weight32.700000000
    Height320.000000000
    Width490.000000000
    Length570.000000000
    Description
    EATON 9SX 3000i
