Производитель: INTELLINET

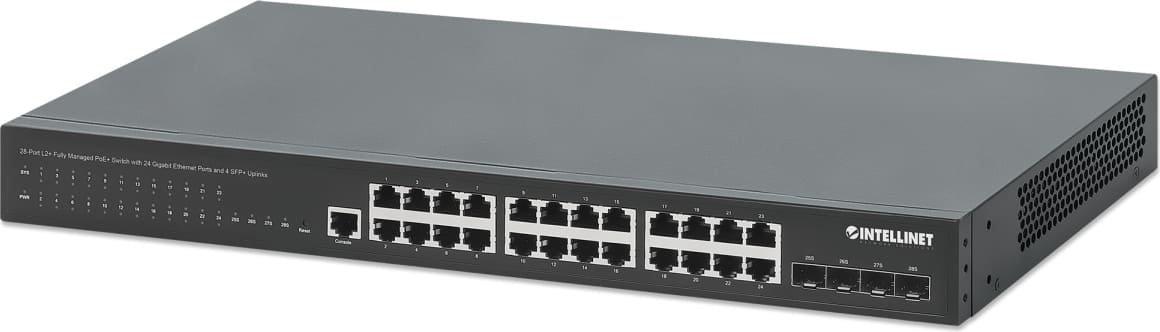

Intellinet 561846 tīkla pārslēgs Vadīts L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Melns

€727,83 с налогом

Артикул: ST09578058

Код производителя: 561846

Сайт производителя

гарантия: 12 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	2	€727,83 с налогом

Количество:

Specifications

Характеристики

auto mdi/mdi-x

Yes

power over ethernet (poe)

Yes

weight

3 kg

height

44 mm

width

440 mm

depth

208 mm

full duplex

Yes

auto-negotiation

Yes

switch type

Managed

switch layer

L2+

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

24

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10g support

Yes

copper ethernet cabling technology

10BASE-TX, 100BASE-TX, 1000BASE-T

cable types supported

Cat5e

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

16000 entries

switching capacity

128 Gbit/s

forwarding rate

95.23 Mpps

store-and-forward

Yes

packet buffer memory

12 MB

access control list (acl)

Yes

rack mounting

Yes

form factor

1U

product colour

Black

led indicators

Activity, Link, PoE, Power

mean time between failures (mtbf)

90000 h

power consumption (max)

425 W

total power over ethernet (poe) budget

370 W

operating temperature (t-t)

0 - 45 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 90%

certification

FCC, CE, RoHS, UKCA, NDAA

package type

Box

power source

AC

ac input voltage

100 - 240 V

ac input frequency

50/60 Hz

manual

Yes

ethernet lan data rates

10,100,1000 Mbit/s

housing material

Metal

cables included

AC

jumbo frames support

Yes

reset button

Yes

jumbo frames

12000

igmp snooping

Yes

power supply included

Yes

rack mount kit

Yes

power protection features

Over voltage, Overload, Short circuit

mac address auto-learning supported

Yes

mac address auto-aging supported

Yes

warranty period

3 year(s)

vlan support

Yes

sfp+ module slots quantity

4

broadcast storm control

Yes

rate limiting

Yes

dhcp features

DHCP Option 82, DHCP client, DHCP snooping

virtual lan features

Port-based VLAN, Tagged VLAN

management protocols

SNMP

half duplex

Yes

power over ethernet (poe) power per port

30 W

auto-sensing

Yes

power saving mode (eee)

Yes

Description

Intellinet 561846. Slēdža tips: Vadīts, Slēdža līmenis: L2+. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24. Pilns duplekss. Adrešu tabulas izmērs: 16000 ieraksti, Komutācijas ietilpība: 128 Gbit/s. Tīkla standarts: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power over Ethernet (PoE). Statņa montāža, Formas faktors: 1U
