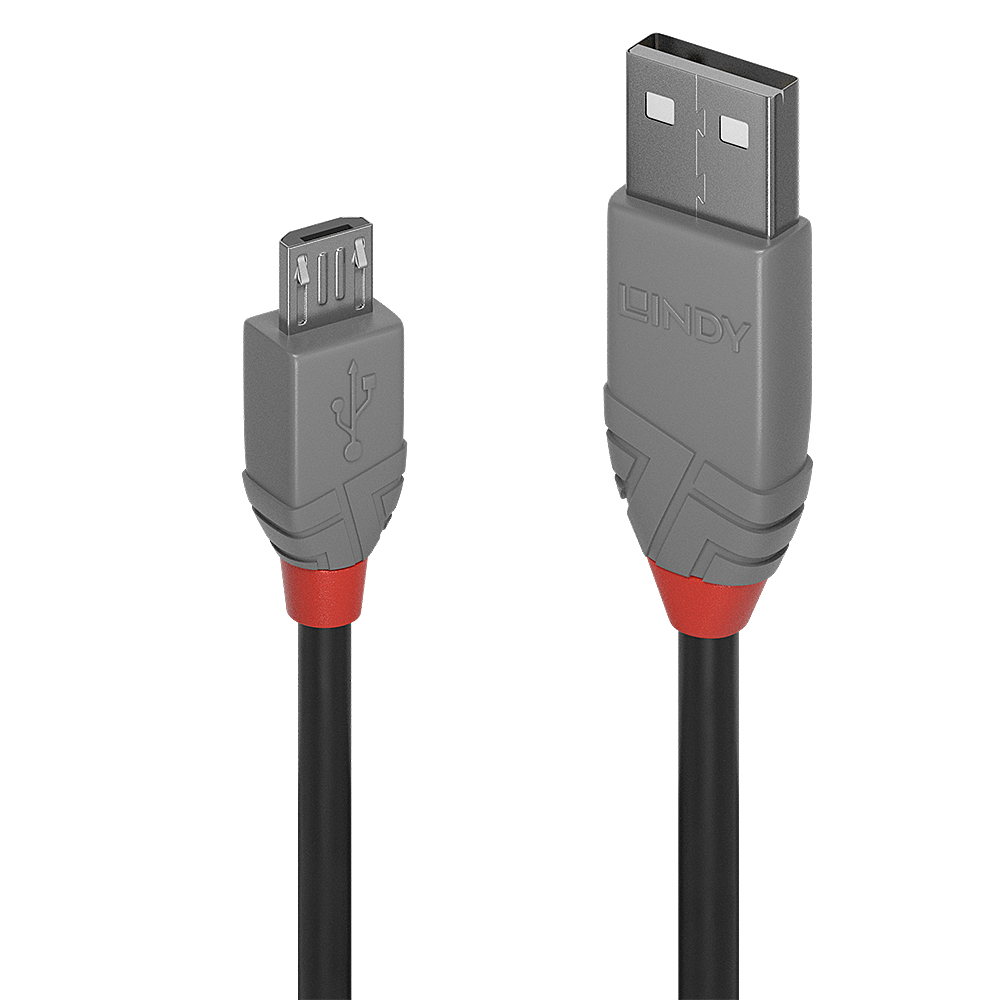

Lindy 0,2m USB 2.0 Type A to Micro-B Cable, Anthra Line

Connectors

• Connector A: USB 2.0 Type A Male
• Connector B: USB 2.0 Type Micro-B Male
• Housing Material: PVC
• Shielding in head shell: -
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
  • A: 15.5x35x7.8mm (0.61x1.38x0.31in)
  • Micro-B:10x24x7.6mm (0.29x0.95x0.30in)

Cable Construction

• Length: 0.2m (0.66ft)
• Standard: USB 2.0
• Power Delivery: -
• Colour: Black
• Type: Round
• Jacket Diameter: 3.5mm (0.14in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 28AWG
• Conductor Gauge Data: 28AWG
• Shielding: Aluminium Magnesium Braid 57%

Specifications

• Supported Bandwidth: 480Mbps
• Maximum Resolution: -
• Nominal Attenuation: 0.5-400MHz < 5.8dB
• Minumum Bend Radius: 16mm (0.63in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65 & UL

Purchasing Information

• No.: 36730
• EAN: 4002888367301

This product is also available in other lengths

• 36730 - 0.2m (0.66ft)
• 36731  - 0.5m (1.64ft)
• 36732 - 1m (3.28ft)
• 36733 - 2m (6.56ft)
• 36734 - 3m (9.84ft)
• 36735 - 5m (16.40ft)
