Производитель: LINDY

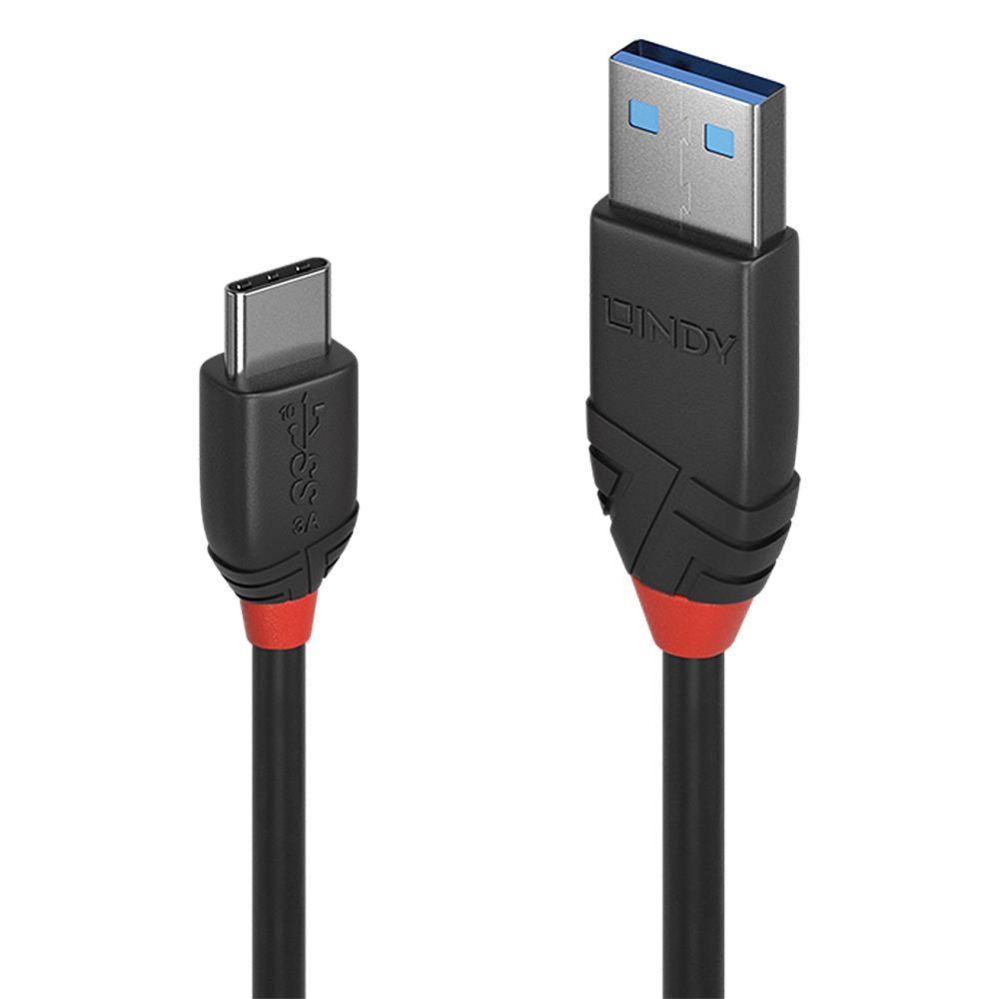

Lindy 1m USB 3.2 Type A to C Cable 3A, Black Line

€13,70 с налогом

Артикул: ST05620799

Код производителя: 36916

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
LV	2 - 4 дня	12	€13,70 с налогом
PL	8 - 15 дня	128	€14,76 с налогом
LV	7 - 12 дня	9712	€17,05 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4

цвет	Золотой
цвет	Черный
Свойства	USB Type-C
Свойства	USB
Длина кабеля (м.)	1 m
Длина кабеля (м.)	1.1 - 1.7 m
Длина кабеля (м.)	4.0 m - 4.8 m

Cable length	1 m
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB C
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	26/30/30
Connector material	Nickel
Contact material	Phosphor bronze
Connector contacts plating	Gold
Cable jacket material	Polyvinyl chloride (PVC)
Conductor material	Tinned copper
Connector shielding	Yes
Connector shield material	Aluminium
Connector housing material	Polyvinyl chloride (PVC)
Maximum data transfer rate	10000 Mbit/s
Cable type	Round cable
Plug and Play	Yes
Nominal attenuation	0.5Mhz €“ 15Ghz 40db
Certification	RoHS, REACH, UL
Cable diameter	4.5 mm
Bend radius (min)	4.5 cm
Connector 1 dimensions (WxDxH)	15.5 x 35.1 x 7.8 mm
Connector 2 dimensions (WxDxH)	11 x 25.5 x 7.3 mm
Quantity per pack	1 pc(s)
Package type	Polybag
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 85 °C
Harmonized System (HS) code	84733080
Description
Description	Lindy 1m USB 3.2 Type A to C Cable 3A, Black Line. Cable length: 1 m, Connector 1: USB A, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 10000 Mbit/s, Connector contacts plating: Gold, Product colour: Black

Description
	1m USB 3.2 Type A to C Cable, 10Gbps, Black Line \| Cable length 1 m \| Ver. USB 3.2 Gen 1 (3.1 Gen 1) \| Connector 1 USB A \| Connector 2 USB C \| Connector 1 gender Male \| Connector 2 gender Male \| Cable jacket material Polyvinyl chloride (PVC) \| Maximum data transfer rate 10 Gbit/s \| Maximum data transfer rate 10000 Mbit/s \| Colour Black \| Operating temperature (T-T) -20 - 80 °C

plug and play

Yes

gross weight

0.05

maximum data transfer rate

10 Gbit/s

cable length

1 m

cable type

Round cable

country of origin

product colour

Black

operating temperature (t-t)

-20 - 80 °C

storage temperature (t-t)

-25 - 85 °C

certification

RoHS, REACH, UL

connector 1

USB A

connector 2

USB C

connector 1 gender

Male

connector 2 gender

Male

harmonized system (hs) code

84733080

quantity per pack

1 pc(s)

package type

Polybag

connector contacts plating

Gold

conductor material

Tinned copper

awg wire size

26/30/30

connector shielding

Yes

connector shield material

Aluminium

usb version

USB 3.2 Gen 1 (3.1 Gen 1)

connector 1 form factor

Straight

connector 2 form factor

Straight

cable jacket material

Polyvinyl chloride (PVC)

cable diameter

4.5 mm

bend radius (min)

4.5 cm

connector housing material

Polyvinyl chloride (PVC)

connector 1 dimensions (wxdxh)

15.5 x 35.1 x 7.8 mm

connector 2 dimensions (wxdxh)

11 x 25.5 x 7.3 mm

connector material

Nickel

nominal attenuation

0.5Mhz €“ 15Ghz 40db

contact material

Phosphor bronze

net weight

0.04

packaging height

14.40

packaging lenght

13.30

packaging width

1.00

warranty

variation of

36914

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/8d/51/d6/68/68d6518d27269bcab1e6f818/CE_36914-17.pdf

Description

Connectors

Connector A: USB 3.2 Type A Male
Connector B: USB 3.2 Type C Male
Housing Material: PVC
Shielding in head shell: Copper foil
Connector Plating: Nickel
Pin Construction:
- A: Brass
- C: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH:
- A: 15.5x35.1x7.8mm (0.61x1.38x0.31in)
- C: 11.0x25.5x7.3mm (0.43x1.00x0.29in)

Cable Construction

Jacket Diameter: 4.5mm (0.18in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge Power: 24AWG
Conductor Gauge Data. 30AWG
Shielding: Tinned Copper Braid 50%

Specifications

Length: 1m (3.28ft)
Colour: Black
Type: Round
Standard: USB 3.2 Gen 2x1
Supported Bandwidth: 10Gbps
Maximum Power: 15W (5V 3A)
E-Mark: No
Maximum Resolution: -
Supported Protocols: USB 3.2, USB 2.0
Nominal Attenuation: 0.5Mhz-15Ghz < 40dB
Minimum Bend Radius: 45mm (1.77in)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable)

Purchasing Information

No.: 36916
EAN: 4002888369169

This product is also available in other lengths

36914 - 0.15m (0.49ft)
36915 - 0.5m (1.64ft)
36916 - 1m (3.28ft)
36917 - 1.5m (4.92ft)

CE Doc: CE_36914-17.pdf
