Производитель: NONAME

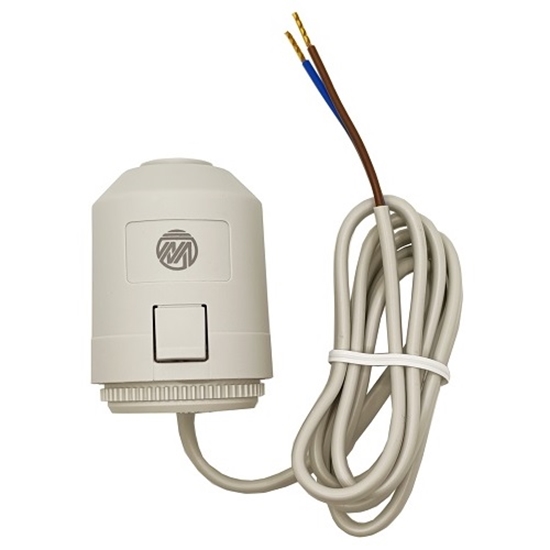

Thermal Actuator, NC, 230V AC

€16,64 с налогом

Артикул: ST10380055

Код производителя: HT260492

Сайт производителя

Stock *

	Склад	Доставка	Наличие	Цена
	LT	2 - 4 дня	2	€16,64 с налогом

Количество:

Specifications

Характеристики

Description

NC AC230V thermal actuator.rFeatures:Electric thermal actuator is designed for controlling the heat distriution equipment. It receives commands from automation devices (such as room thermostats or hu controller) and adjusts the water flow distriution according to set parameters. The thermal actuator allows precise control of room temperature and energy consumption.The thermal actuator is in NC (normally closed) state. The actuator works with any type of programmale or non-programmale room thermostats.Simple installation, the thermal actuators are connected to the manifold via a VA80 thread adapter. Valve thread adapter VA80 allows easy connection to standard thread M30, locking securely. Energy consumption of each drive is only 2W.rTechnical specifications:Purpose: water heating system.Operating type: NC (normally closed).Operating voltage: AC 230V, 5060Hz.Starting current: ma. 300mA.Power consumption: 2W.Installation: connected to the collector via an adapter.Adapter: VA 80.Cale length: 90cm.Operating temperature: 0°C~ +60°C.Storage temperature: -25°C~ +65°C.Operating humidity: 80%RH (non-condensing).Safety class: IP5.Dimensions: Ø9.mm 56.6mm.rWarranty: 12 months.

Характеристики

Description

NC AC230V thermal actuator.rFeatures:Electric thermal actuator is designed for controlling the heat distriution equipment. It receives commands from automation devices (such as room thermostats or hu controller) and adjusts the water flow distriution according to set parameters. The thermal actuator allows precise control of room temperature and energy consumption.The thermal actuator is in NC (normally closed) state. The actuator works with any type of programmale or non-programmale room thermostats.Simple installation, the thermal actuators are connected to the manifold via a VA80 thread adapter. Valve thread adapter VA80 allows easy connection to standard thread M30, locking securely. Energy consumption of each drive is only 2W.rTechnical specifications:Purpose: water heating system.Operating type: NC (normally closed).Operating voltage: AC 230V, 5060Hz.Starting current: ma. 300mA.Power consumption: 2W.Installation: connected to the collector via an adapter.Adapter: VA 80.Cale length: 90cm.Operating temperature: 0°C~ +60°C.Storage temperature: -25°C~ +65°C.Operating humidity: 80%RH (non-condensing).Safety class: IP5.Dimensions: Ø9.mm 56.6mm.rWarranty: 12 months.
