Ražotājs: APC

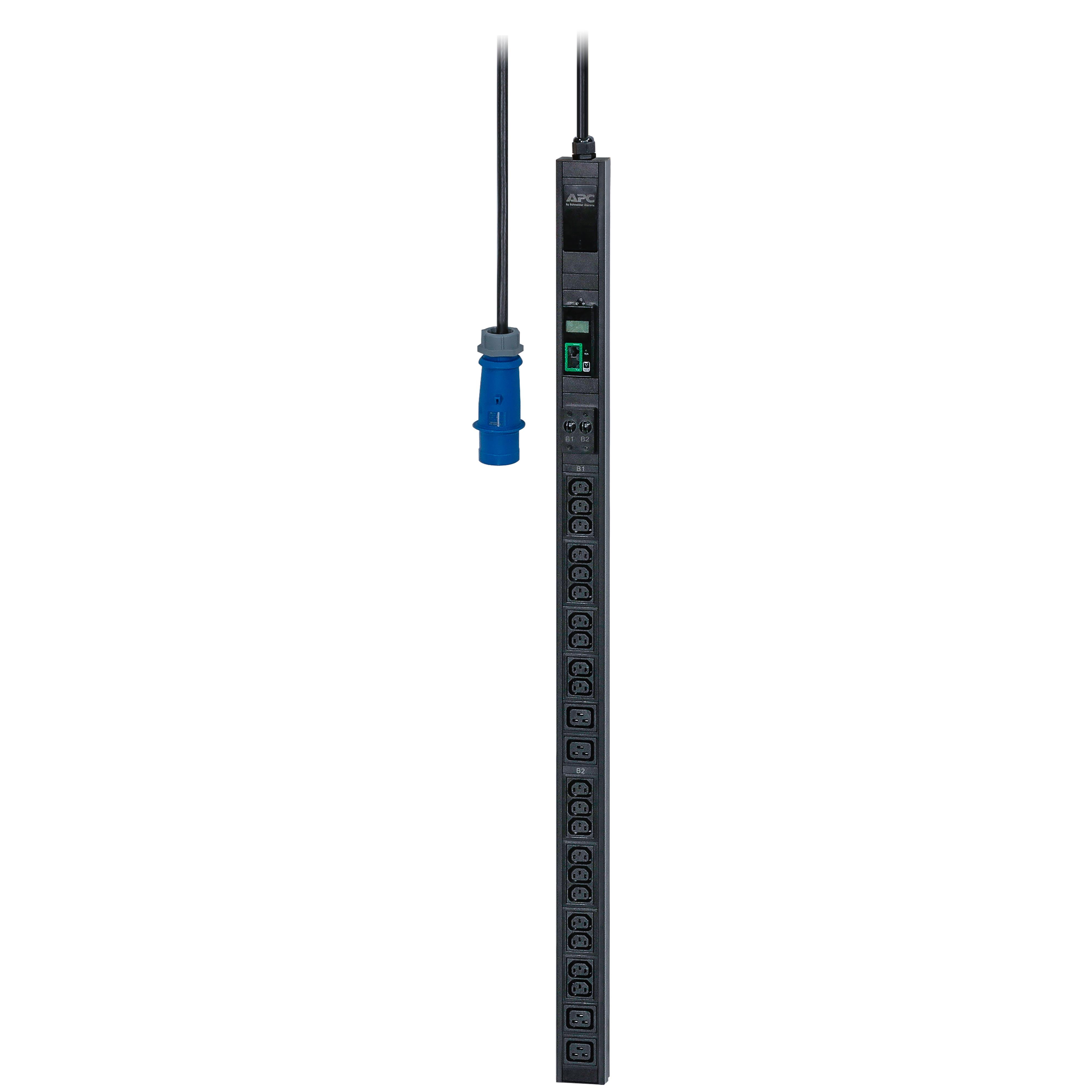

APC EPDU1132M power distribution unit (PDU) 24 AC outlet(s) 0U Black

€823,38 ar pvn

Artikuls: ST04281238

Preces kods: EPDU1132M

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	2	€823,38 ar pvn

Daudzums:

Specifikācija

Description	APC EASY PDU, METERED, ZERO U, 32A, 230V, (20)C13 & (4)C19?IEC309
CountryofOrigin	CHINA
TariffHeading	85044030
PictureLocation	https://www2.f9baltic.com/productimages/big/EPDU1132M.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/EPDU1132M.jpg
Weight	2.560000
Height	120.000000
Length	1330.000000
Width	170.000000
BoxSize	0
PalletSize	0
Width, mm	62
Weight, kg	3.72
Depth, mm	44
Height, mm	1175
Operating temperature range (T-T), �C	-5 - 45
Operating relative humidity range, %	5 - 95
Storage temperature range (T-T), �C	-25 - 65
Input frequency, Hz	50/60
Nominal output voltage, V	230
Nominal input voltage, V	200, 208, 230
Description
Description	Easy Metered Rack Power Distribution Units (PDU) provide real-time remote monitoring and power management of connected loads in server rack and network rack solutions. Includes: Installation guide, Toolless Mounting Kit, User Manual, Vertical mounting brackets.

PDU types	Metered
Rack capacity	0U
Type	Single-phase
Mounting	Vertical
Housing material	Aluminium
Product colour	Black
Display	LCD
On/off switch	No
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC 60309
LED indicators	Yes
Certification	CE, TUV
Firmware upgradeable	Yes
Nominal input voltage	200/208/230 V
Maximum current	32 A
AC input frequency	50 - 60 Hz
Nominal output voltage	230 V
Load capacity	7360 VA
Maximum input current per phase	32 A
Maximum power	7360 W
Width	62 mm
Depth	44 mm
Height	1175 mm
Weight	3.72 kg
Package weight	4.48 kg
Package width	160 mm
Package depth	110 mm
Package height	1320 mm
Manual	Yes
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Description
Description	APC EPDU1132M. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Certification: CE, TUV. Nominal input voltage: 200/208/230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Width: 62 mm, Depth: 44 mm, Height: 1175 mm

Specifikācija

Description	APC EASY PDU, METERED, ZERO U, 32A, 230V, (20)C13 & (4)C19?IEC309
CountryofOrigin	CHINA
TariffHeading	85044030
PictureLocation	https://www2.f9baltic.com/productimages/big/EPDU1132M.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/EPDU1132M.jpg
Weight	2.560000
Height	120.000000
Length	1330.000000
Width	170.000000
BoxSize	0
PalletSize	0
Width, mm	62
Weight, kg	3.72
Depth, mm	44
Height, mm	1175
Operating temperature range (T-T), �C	-5 - 45
Operating relative humidity range, %	5 - 95
Storage temperature range (T-T), �C	-25 - 65
Input frequency, Hz	50/60
Nominal output voltage, V	230
Nominal input voltage, V	200, 208, 230
Description
Description	Easy Metered Rack Power Distribution Units (PDU) provide real-time remote monitoring and power management of connected loads in server rack and network rack solutions. Includes: Installation guide, Toolless Mounting Kit, User Manual, Vertical mounting brackets.

PDU types	Metered
Rack capacity	0U
Type	Single-phase
Mounting	Vertical
Housing material	Aluminium
Product colour	Black
Display	LCD
On/off switch	No
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC 60309
LED indicators	Yes
Certification	CE, TUV
Firmware upgradeable	Yes
Nominal input voltage	200/208/230 V
Maximum current	32 A
AC input frequency	50 - 60 Hz
Nominal output voltage	230 V
Load capacity	7360 VA
Maximum input current per phase	32 A
Maximum power	7360 W
Width	62 mm
Depth	44 mm
Height	1175 mm
Weight	3.72 kg
Package weight	4.48 kg
Package width	160 mm
Package depth	110 mm
Package height	1320 mm
Manual	Yes
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Description
Description	APC EPDU1132M. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Certification: CE, TUV. Nominal input voltage: 200/208/230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Width: 62 mm, Depth: 44 mm, Height: 1175 mm
