Ražotājs: ASUS

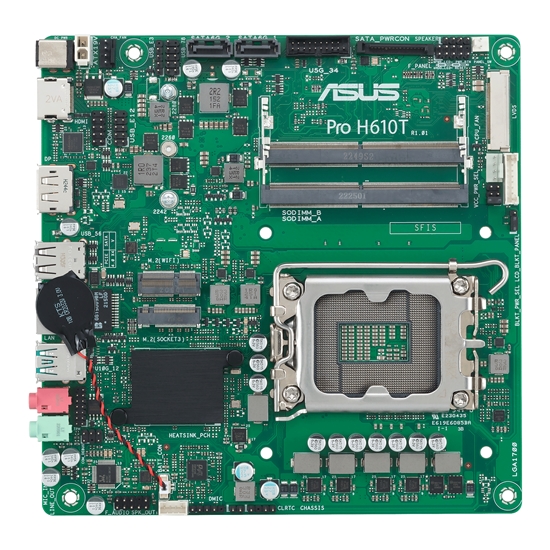

ASUS PRO H610T-CSM Intel H610 LGA 1700 mini ITX

€162,12 ar pvn

Artikuls: ST07762867

Preces kods: 90MB1G60-M0EAYC

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	30	€162,12 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3

Plates izmērs (Form Factor)	mITX
CPU ligzda	LGA 1700
Video interfeiss	HDMI
Video interfeiss	DisplayPort

Processor manufacturer	AMD
Processor socket	LGA 1700
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported memory types	DDR5-SDRAM
Number of memory slots	2
Maximum internal memory	64 GB
Memory slots type	SO-DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	5600 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Number of HDDs supported	2
Number of storage drives supported	3
Parallel processing technology support	Not supported
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	2
Front panel audio connector	Yes
CPU fan connector	Yes
Number of chassis fan connectors	1
Number of COM connectors	1
TPM connector	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Yes
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Component for	PC
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Audio output channels	7.1 channels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
Package width	226 mm
Package depth	185 mm
Package height	60 mm
Package weight	742.6 g
Width	170 mm
Depth	170 mm
Height	32 mm
Weight	311.5 g
LVDS connector	Yes
Description
Description	ASUS PRO H610T-CSM. Processor manufacturer: AMD, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: SO-DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: Intel

Description	ASUS PRO H610T-CSM LGA1700 2DDR5 MB
VatType	VAT
Weight	0.653000000
Height	60.000000000
Width	185.000000000
Length	230.000000000
Description
Description	ASUS PRO H610T-CSM LGA1700 2DDR5 Thin Mini ITX 2xSATA MB 1xHDMI 1xDP 1xLVDS 3xM.2
