    Ražotājs: ATEN

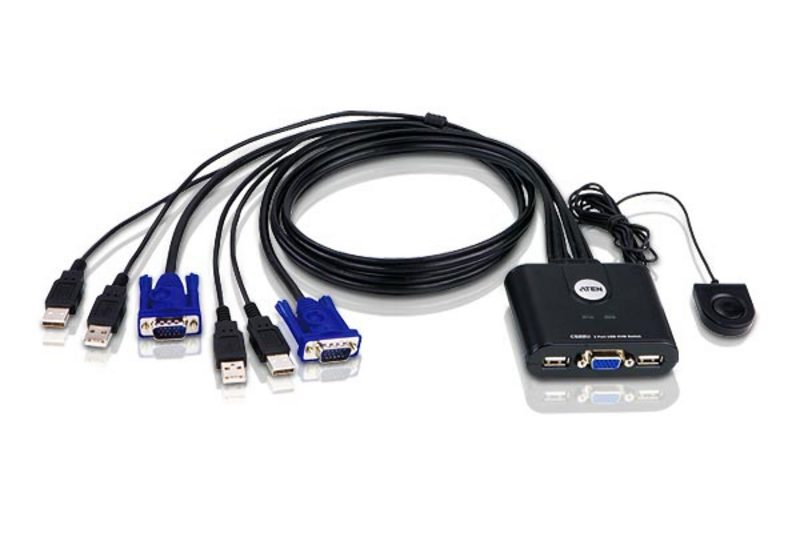

    Aten 2-Port USB VGA KVM Switch


    €22,46 ar pvn

    Artikuls: ST03564284
    Preces kods: CS22U-AT
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT

    Specifikācija
    Īpašības USB
    Portu skaits RJ-45 2
    Number of computers controlled2
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeVGA
    Console portsUSB A, VGA (D-Sub)
    VGA (D-Sub) ports quantity2
    USB hubYes
    USB 2.0 Type-A hub ports quantity2
    USB connector typeUSB Type-A
    HD typeQXGA
    Maximum resolution2048 x 1536 pixels
    DDC2B supportYes
    Rack mountingNo
    Product colourBlack
    Housing materialPlastic
    LED indicatorsYes
    Built-in displayNo
    Power sourceDC
    DC input voltage5 V
    Power consumption (typical)0.14 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width82.4 mm
    Depth70.1 mm
    Height24.6 mm
    Weight302 g
    Package width55 mm
    Package depth155 mm
    Package height223 mm
    Package weight400 g
    Quick installation guideYes
    Master (outer) case net weight6.04 kg
    Harmonized System (HS) code85176200
    Master (outer) case width328 mm
    Master (outer) case length389 mm
    Master (outer) case height330 mm
    Master (outer) case gross weight8.48 kg
    Products per master (outer) case20 pc(s)
    Description
    ATEN 2-Port USB VGA KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels. Product colour: Black, Housing material: Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 0.14 W. Width: 82.4 mm, Depth: 70.1 mm, Height: 24.6 mm
    Embeeded batteryNo
    WEEE taxYes
    Packing quantity1
    Gross weight0.4
    Gross depth (mm)82.4
    Gross width (mm)70.1
    Gross height (mm)24.6
    Volume (m3)0.000142095504
    Net weight0.3
    Tare weight (kg)0.1
    Paper/Pasteboard85
    Console port1 x HDB-15 Female (Blue) 2 x USB Type A Female
    Operating temperature0-50°C
    Storage temperature (T-T)-20-60
    FeaturesOne USB console controls two USB computers. Supports multifunction mice. Multiplatform support - Windows, Mac, Linux and Sun. USB mouse port can be used for USB 1.1 hub ad USB 1.1 peripheral sharing. Superior video quality - up to 2048 x 1536; DDC2B. Non-powered.
    KVM Ports2 x HDB-15 Male (Blue) 4 x USB Type A Male (Black)
    Producer product nameKVM Cable KVM Switches CS22U Search Product or keyword 2-Port USB VGA Cable KVM Switch with Remote Port Selector
    Plastic (No PET)15
    WEE classificationCL109:6:2017-04-01
    Palette Qty436
    ProducerAten
    Warranty24

    Specifikācija
    Īpašības USB
    Portu skaits RJ-45 2
    Number of computers controlled2
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeVGA
    Console portsUSB A, VGA (D-Sub)
    VGA (D-Sub) ports quantity2
    USB hubYes
    USB 2.0 Type-A hub ports quantity2
    USB connector typeUSB Type-A
    HD typeQXGA
    Maximum resolution2048 x 1536 pixels
    DDC2B supportYes
    Rack mountingNo
    Product colourBlack
    Housing materialPlastic
    LED indicatorsYes
    Built-in displayNo
    Power sourceDC
    DC input voltage5 V
    Power consumption (typical)0.14 W
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width82.4 mm
    Depth70.1 mm
    Height24.6 mm
    Weight302 g
    Package width55 mm
    Package depth155 mm
    Package height223 mm
    Package weight400 g
    Quick installation guideYes
    Master (outer) case net weight6.04 kg
    Harmonized System (HS) code85176200
    Master (outer) case width328 mm
    Master (outer) case length389 mm
    Master (outer) case height330 mm
    Master (outer) case gross weight8.48 kg
    Products per master (outer) case20 pc(s)
    Description
    ATEN 2-Port USB VGA KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels. Product colour: Black, Housing material: Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 0.14 W. Width: 82.4 mm, Depth: 70.1 mm, Height: 24.6 mm
    Embeeded batteryNo
    WEEE taxYes
    Packing quantity1
    Gross weight0.4
    Gross depth (mm)82.4
    Gross width (mm)70.1
    Gross height (mm)24.6
    Volume (m3)0.000142095504
    Net weight0.3
    Tare weight (kg)0.1
    Paper/Pasteboard85
    Console port1 x HDB-15 Female (Blue) 2 x USB Type A Female
    Operating temperature0-50°C
    Storage temperature (T-T)-20-60
    FeaturesOne USB console controls two USB computers. Supports multifunction mice. Multiplatform support - Windows, Mac, Linux and Sun. USB mouse port can be used for USB 1.1 hub ad USB 1.1 peripheral sharing. Superior video quality - up to 2048 x 1536; DDC2B. Non-powered.
    KVM Ports2 x HDB-15 Male (Blue) 4 x USB Type A Male (Black)
    Producer product nameKVM Cable KVM Switches CS22U Search Product or keyword 2-Port USB VGA Cable KVM Switch with Remote Port Selector
    Plastic (No PET)15
    WEE classificationCL109:6:2017-04-01
    Palette Qty436
    ProducerAten
    Warranty24
