| manufacturer | ATEN |
| product group | KVM-Switches / PC-Shares |
| product type | KVM-Switch, DP |
| colour | black |
| weight | 3.75 kg |
| height of packaging (single piece) | 330 mm |
| width of packaging (single piece) | 150 mm |
| depth of packaging (single piece) | 510 mm |
| package weight (single piece) | 4.791 kg |
| gross weight | 4.791 |
| current catalog edition | 24.1 |
| technical particularity | LED-Anzeige für Kanalbelegung |

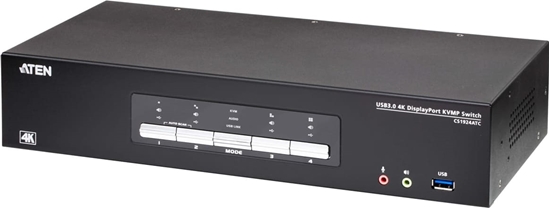

| scope of delivery | 1x CS1924ATC 4-Port USB 3.0 4K DisplayPort KVMP™ Switch f... |
| height | 324 mm |
| width | 499 mm |
| depth | 133 mm |
| material (casing) | metal |
| quantity of pcs | 4 |
| supported pc-systems | USB 3.1 |
| pc: monitor connection | 4x DP BU |
| pc: mouse/keyboard connection | USB |
| quantity of digital consoles | 2 |
| print button on device | ja |
| switching over hot keys | Tastatur |
| 19" compatible | nein |
| cascadable | nein |
| hot plug compatible | nein |
| max. resolution (nominal) | Bis zu 4096 x 2160 @ 60Hz |
| colour (design profile) | schwarz |
| power supply unit required | ja |
| pc: connection on moulded cables | nein |
| switching over osd | nein |
| keyboard/mouse emulation | ja |
| mains connection | Gerät-Eurostecker, Typ-C |
| Description |
|
