Ražotājs: ATEN

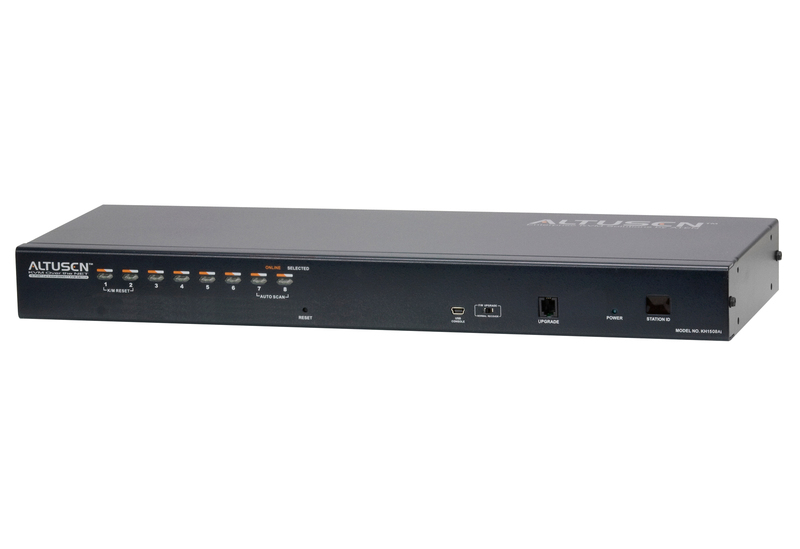

ATEN KH1508Ai KVM switch Rack mounting Black

€793,82 ar pvn

Artikuls: ST06679721

Preces kods: KH1508AI

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	LV	7 - 12 dienās	6	€793,82 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Specifikācija 1
Specifikācija 2

Number of computers controlled	8
Video port type	VGA
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	3
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Networking standards	IEEE 802.3, IEEE 802.3u
Security algorithms	256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS
Maximum resolution	1600 x 1200 pixels
Scan interval	255 s
Rack mounting	Yes
Product colour	Black
Rack capacity	1U
Housing material	Metal
Cable length	50.29 m
LED indicators	Yes
Power consumption (typical)	12.5 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	161 mm
Depth	437 mm
Height	44 mm
Weight	2.8 kg
Package weight	4.08 kg
Quick installation guide	Yes
Manual	Yes
Connectivity technology	Wired
Ports quantity	8
Power requirements	1A
Minimum system requirements	Pentium III 1 GHz 1024 x 768 VGA/SVGA/Multisync USB Type A 6-pin mini-DIN
Display resolution at frequency	1600 x 1200 @ 60Hz 1280 x 1024 @ 75Hz
Description
Description	ATEN KH1508Ai. Video port type: VGA. Networking standards: IEEE 802.3, IEEE 802.3u, Security algorithms: 256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS. Maximum resolution: 1600 x 1200 pixels, Scan interval: 255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power consumption (typical): 12.5 W

manufacturer

ATEN

product group

KVM switches / PC shares

product type

KVM over IP-Switch

colour

black

weight

2.65

height of packaging (single piece)

240

width of packaging (single piece)

540

depth of packaging (single piece)

130

package weight (single piece)

3.542

gross weight

3.563

technical particularity

LED display for port status, special cables have to be ordered separately

scope of delivery

1x KH1508Ai Cat 5 High-Density KVM over IP Switch, 1x Firmware Upgrade Cable, 1x Laptop USB Console Cable 1x Power Cord, 1x Rack Mount Kit, 1x Foot Pad Set (4 pcs.) 1x User Instructions

height

4.4

width

16.36

depth

43.72

material (casing)

metal

interface

VGA

quantity of pcs

supported pc-systems

PS/2, USB

print button on device

yes

switching over hot keys

Keyboard

integrated hub

19" compatible

yes

cascadable

yes

hot plug compatible

yes

colour (design profile)

black

power supply unit required

yes

analogue console: monitor connection

1x HD 15pol. BU

pc: connection on moulded cables

quantity of analogue consoles

integrated console

switching over scan run

yes

switching over osd

yes

keyboard/mouse emulation

yes

mains connection

Protective contact plug, Type-E/F

pc: combi connection

16x SPHD 15pol. ST

Description

The KH1508Ai Cat 5 High-Density KVM over IP Switch offers 8 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.

High port density – RJ-45 connectors for up to 8 ports in a 1U housing
A dedicated USB port directly connects to a laptop for easy Console operation
One bus for remote KVM over IP access
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides PS/2 and USB keyboard and mouse support
Multiplatform support - Windows, Mac, Sun and Linux
Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60 Hz* up to 30 meters, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
Daisy-chain up to 15 additional units – control up to 128 computers from a single console
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Firmware upgradeable

TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base- T/100Base-TX, auto sense, Ping
Video resolutions max. 1920 x 1200 @ 60Hz for Windows 2000/XP/Vista, Mac, Unix, SUN
