Iepriekšējais produktsAten 8-Port HDMI Cat 5 Spli...

Nākamais produktsAten 8-Port USB DVI/Audio K...

Ražotājs: ATEN

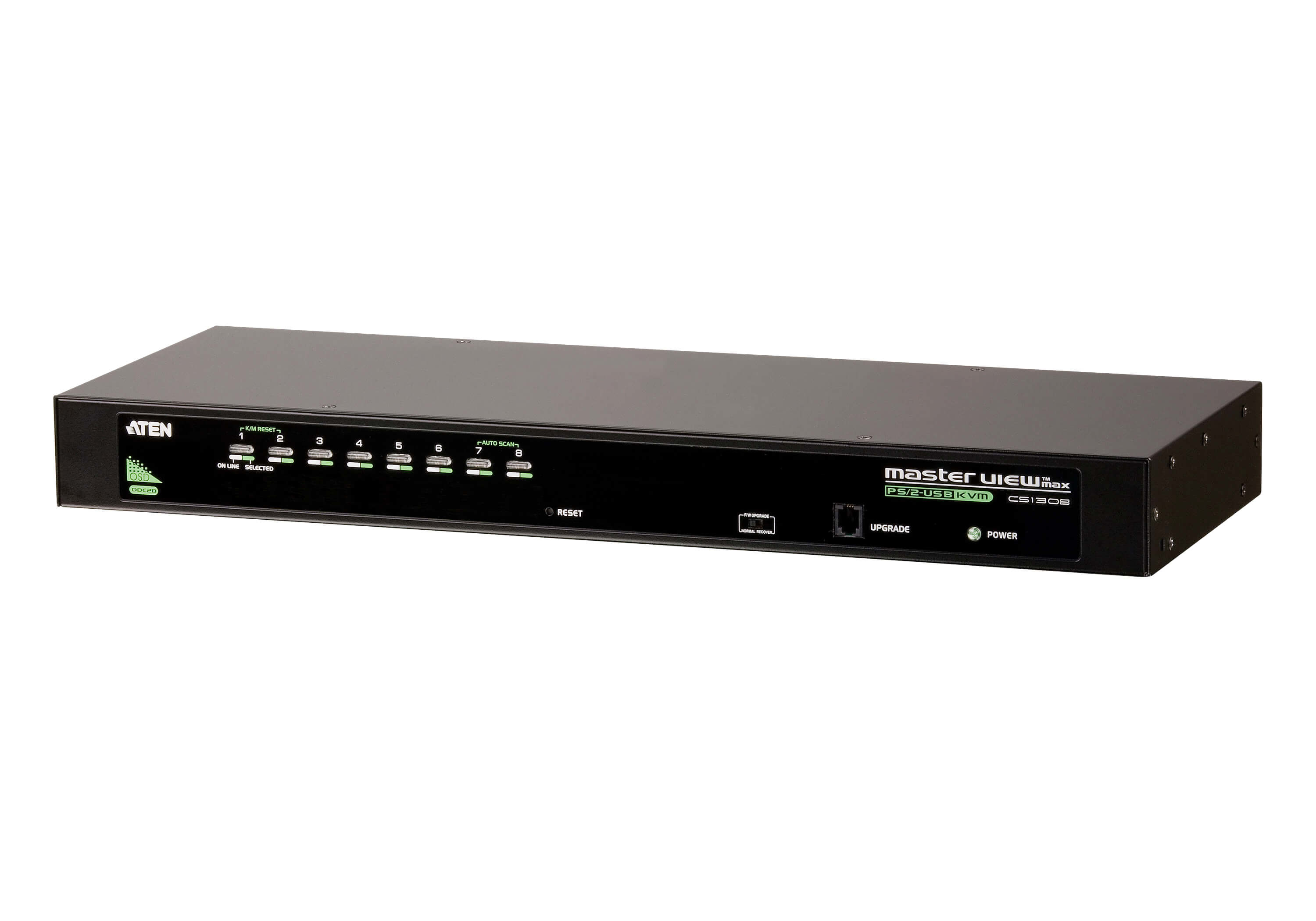

Aten 8-Port USB - PS/2 VGA KVM Switch

€165,04 ar pvn

Artikuls: ST00726427

Preces kods: CS1308-AT-G

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
LT	3 - 5 dienās	10	€165,04 ar pvn
PL	8 - 15 dienās	2	€175,05 ar pvn
LV	2 - 5 dienās	1	€183,10 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3

Īpašības	USB
Portu skaits RJ-45	8

Number of computers controlled	64
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	VGA (D-Sub)
VGA (D-Sub) ports quantity	8
DC-in jack	Yes
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
DDC2B support	Yes
Firmware upgradeable	Yes
Rack mounting	Yes
Product colour	Black
Rack capacity	1U
Housing material	Metal
Cascadable	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
Power source	DC
DC input voltage	5.3 V
Power consumption (typical)	5 W
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Sustainability certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	161.3 mm
Depth	437.2 mm
Height	44 mm
Weight	1.89 kg
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.69 kg
Quick installation guide	Yes
AC adapter included	Yes
Rack mount kit	Yes
Rubber feet	Yes
Master (outer) case net weight	6.72 kg
Harmonized System (HS) code	85176200
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	8.7 kg
Products per master (outer) case	3 pc(s)
Description
Description	ATEN 8-Port USB - PS/2 VGA KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 5 W. Sustainability certificates: RoHS

Gross depth (mm)	437.2
Gross height (mm)	44
Gross weight	2.2
Gross width (mm)	161.3
Net weight	1.89
Volume (m3)	0.00310289584
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Connector 1	1 x SPHD-18 Male
Connector 2	8 x SPHD-15 Female
Temperature range (T-T)	0-50˚C
Material	Metal
Other features	One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers. Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc. Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu. Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports.
Paper/Pasteboard	310
Tare weight (kg)	0.31
Packing quantity	3
Gross depth master carton	565
Gross width master carton	387
Gross height master carton	260
Net weight master carton	8.022
Tare weight master carton	0.966
Palette Qty	90
Producer	Aten
Warranty	24

Specifikācija

1
Specifikācija 2
Specifikācija 3

Īpašības	USB
Portu skaits RJ-45	8

Number of computers controlled	64
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	VGA (D-Sub)
VGA (D-Sub) ports quantity	8
DC-in jack	Yes
HD type	QXGA
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
DDC2B support	Yes
Firmware upgradeable	Yes
Rack mounting	Yes
Product colour	Black
Rack capacity	1U
Housing material	Metal
Cascadable	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
Power source	DC
DC input voltage	5.3 V
Power consumption (typical)	5 W
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Sustainability certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	161.3 mm
Depth	437.2 mm
Height	44 mm
Weight	1.89 kg
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.69 kg
Quick installation guide	Yes
AC adapter included	Yes
Rack mount kit	Yes
Rubber feet	Yes
Master (outer) case net weight	6.72 kg
Harmonized System (HS) code	85176200
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	8.7 kg
Products per master (outer) case	3 pc(s)
Description
Description	ATEN 8-Port USB - PS/2 VGA KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 5 W. Sustainability certificates: RoHS

Gross depth (mm)	437.2
Gross height (mm)	44
Gross weight	2.2
Gross width (mm)	161.3
Net weight	1.89
Volume (m3)	0.00310289584
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:6:2017-04-01
Connector 1	1 x SPHD-18 Male
Connector 2	8 x SPHD-15 Female
Temperature range (T-T)	0-50˚C
Material	Metal
Other features	One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers. Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc. Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu. Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports.
Paper/Pasteboard	310
Tare weight (kg)	0.31
Packing quantity	3
Gross depth master carton	565
Gross width master carton	387
Gross height master carton	260
Net weight master carton	8.022
Tare weight master carton	0.966
Palette Qty	90
Producer	Aten
Warranty	24
