Ražotājs: ATEN

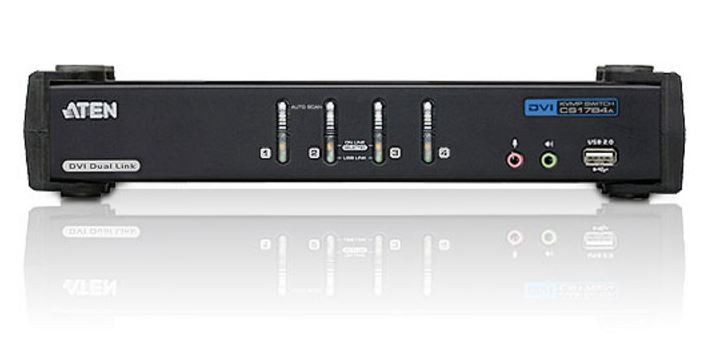

Aten CS1784A KVM switch Black

€268,60 ar pvn

Artikuls: ST02832516

Preces kods: CS1784A

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	LV	7 - 12 dienās	5	€268,60 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4

Portu skaits RJ-45	4
Īpašības	USB
Īpašības	DVI
Portu skaits RJ-45	2

Console Ports	1x USB Type A Żeński
Console Ports	1 x DVI-I Female
Console Ports	2x Audio 3,5mm minijack Female
PC connectors	4 x DVI-I Female
PC connectors	4x USB Type B Female
PC connectors	4x Audio 3,5mm minijack Female
Resolution	2560 x 1600 (WQXGA)
Supported operating systems	Windows
Supported operating systems	Sun Microsystem
Supported operating systems	Mac OS
Supported operating systems	Linux
Accessories included	1x CS1784A Przełącznik USB DVI Dual Link KVMP 4x kabel KVM (DVI-D DL, USB, audio; 1,8 m / 6 stóp) 1x zasilacz 1x Instrukcja dla użytkownika
Dimensions	27,00 x 8,80 x 5,55 cm
Weight	0.93 (kilogram)
Designation	CE+WEEE
Width	210
Height	330
Depth	100
Weight	2200
Description
Description	Najwyższa jakość wideo: 1920 x 1200, 60Hz (Single Link); 2560 x 1600 przy 60 Hz (Dual Link); Gotowy do wizji nVidia 3D Wybór komputera za pomocą przycisków panelu czcionek, skrótów klawiszowych i myszy; Obsługa monitorów cyfrowych i analogowych DVI - w pełni zgodna ze specyfikacjami DVI Wideo DynaSync- Ekskluzywna technologia ATEN, która eliminuje problemy z wyświetlaniem podczas uruchamiania i optymalizuje rozdzielczość podczas przełączania między portami Obsługa wielu platform - Windows, Linux, Mac i Sun

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
DVI-I ports quantity	5
Console USB ports quantity	3
USB 2.0 ports quantity	2
USB connector type	USB Type-A
Audio connections	Yes
Headphone outputs	4
Number of microphone inputs	2
DC-in jack	Yes
Maximum resolution	2560 x 1600 pixels
Scan interval	1,99 s
HDCP	Yes
Power on detection	Yes
Firmware upgradeable	Yes
Rack mounting	No
Product colour	Black
Housing material	Metal
Push button	Yes
Hot keys	Yes
Built-in display	No
Power source	DC
DC input voltage	5.3 V
Power consumption (typical)	10 W
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Sustainability certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	270 mm
Depth	88 mm
Height	55.5 mm
Weight	930 g
Cables included	KVM
Manual	Yes
AC adapter included	Yes
Harmonized System (HS) code	85176200
Description
Description	ATEN CS1784A. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2560 x 1600 pixels, Scan interval: 1,99 s. Product colour: Black, Housing material: Metal. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 10 W. Sustainability certificates: RoHS

manufacturer

ATEN

product group

KVM switches / PC shares

product type

KVM-Switch, DVI

colour

black

weight

0.93

height of packaging (single piece)

220

width of packaging (single piece)

110

depth of packaging (single piece)

330

package weight (single piece)

2.494

gross weight

2.579

technical particularity

Dual Link DVI

scope of delivery

KVM Switch, Power Supply Unit, 2x KVM-Cables (1.8 m), Manual

height

width

270

depth

dimensions (hxwxd)

55 x 270 x 87 mm

material (casing)

Metal

interface

DVI

quantity of pcs

supported pc-systems

USB

pc: monitor connection

4x DVI F

pc: mouse/keyboard connection

USB

quantity of digital consoles

print button on device

yes

switching over hot keys

Keyboard

integrated hub

yes

19" compatible

cascadable

max. resolution (nominal)

DVI Dual Link: 2560 x 1600; DVI Single Link: 1920 x 1200

power supply unit required

yes

power supply output

DC 5.3V, 10 W

analogue console: monitor connection

1x DVI F

analogue console: mouse/keyboard connection

USB

quantity of usb-hub ports

pc: connection on moulded cables

quantity of analogue consoles

integrated console

switching over scan run

yes

switching over osd

keyboard/mouse emulation

yes

mains connection

Appliance Europlug, Type-C

Description

4-Port USB DVI Dual Link/Audio KVMP™ Switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support.

The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
One USB console controls four computers and two additional USB devices
2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
Full bass response for high quality 2.1 channel surround sound systems
Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
Multiplatform support – Windows, Linux, Mac, and Sun*

Independent switching of KVM, USB, and Audio focus

DVI digital and analog monitor support – fully compliant with the DVI specifications

Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
HDCP compatible
Support widescreen resolutions
Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable

* PC keyboard combinations emulate Mac/Sun keyboards
Mac/Sun keyboard work only with their own
