Ražotājs: D-LINK

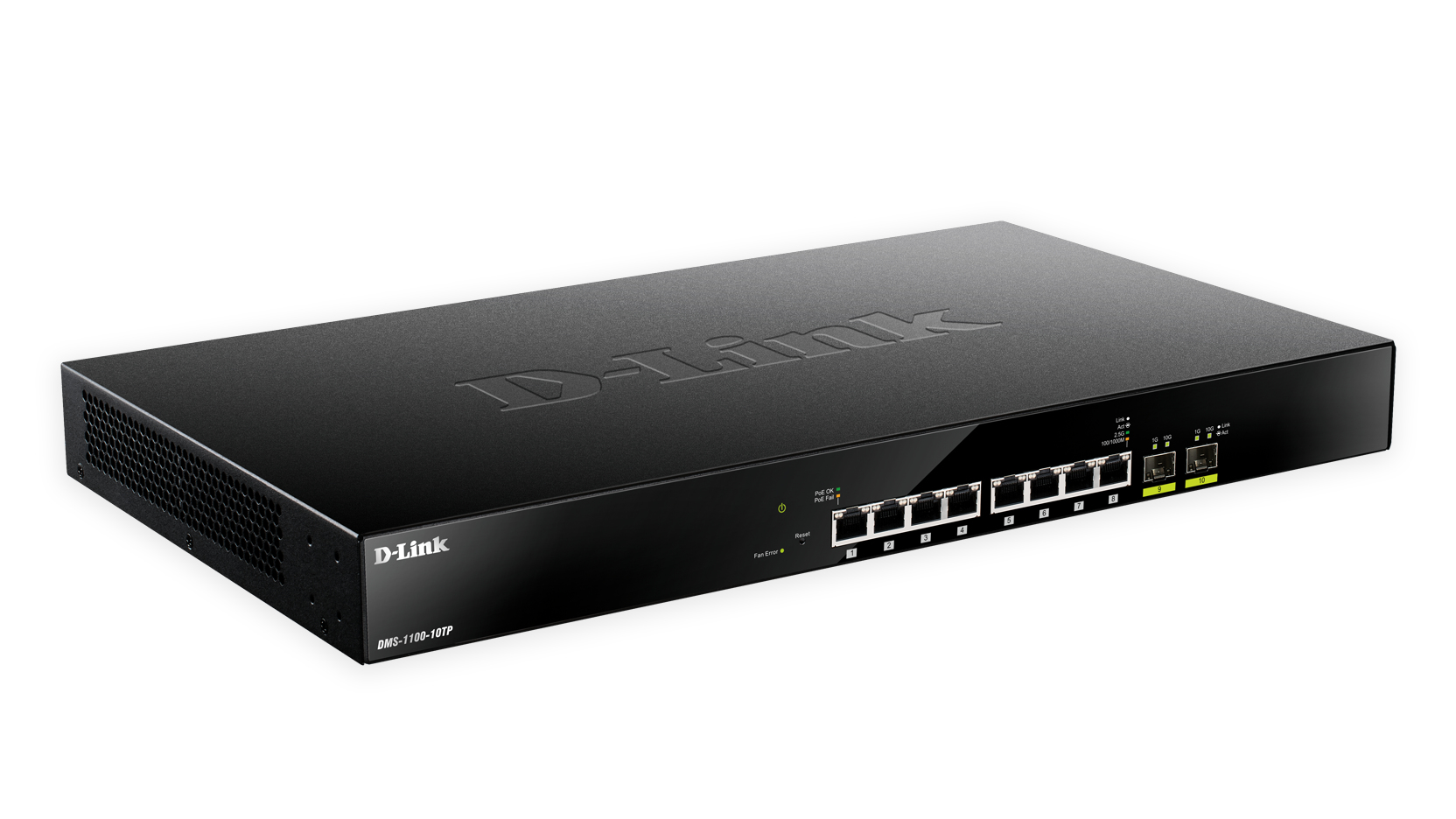

D-Link DMS-1100-10TP network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

€869,87 ar pvn

Artikuls: ST04822610

Preces kods: DMS-1100-10TP

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	4	€869,87 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
System event log	Yes
MIB support	RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC1213 MIB II, RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC1213 MIB II
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity	2
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Cable types supported	Cat5e
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs	4094
Fiber ethernet cabling technology	1000BASE-X
MAC address table	16000 entries
Switching capacity	80 Gbit/s
Throughput	59.52 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9216
DHCP features	DHCP client
IGMP snooping	Yes
IGMP entries	192
Security algorithms	SNMP, SSL/TLS
DoS attack prevention	Yes
Queue scheduling algorithms	Strict Priority Queue (SPQ), Deficit weighted round robin (DWRR), Weighted Round Robin (WRR)
Multicast support	Yes
MLD entries	192
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Fan fail, Link, PoE, Power, Speed
Number of fans	1 fan(s)
Safety	cUL, CB, CE, CCC, BSMI
Certification	CE, FCC, C-Tick, VCCI, BSMI, CCC
Maximum cable length	100 m
Mean time between failures (MTBF)	676329 h
AC input voltage	100 - 240 V
Power consumption (max)	293.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	440 mm
Depth	250 mm
Height	44 mm
Weight	3.43 kg
Harmonized System (HS) code	85176990
Description
Description	D-Link DMS-1100-10TP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Specifikācija

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
System event log	Yes
MIB support	RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC1213 MIB II, RFC768 UDP, RFC791 IP, RFC792 ICMP, RFC793 TCP, RFC826 ARP, RFC1213 MIB II
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity	2
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Cable types supported	Cat5e
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs	4094
Fiber ethernet cabling technology	1000BASE-X
MAC address table	16000 entries
Switching capacity	80 Gbit/s
Throughput	59.52 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9216
DHCP features	DHCP client
IGMP snooping	Yes
IGMP entries	192
Security algorithms	SNMP, SSL/TLS
DoS attack prevention	Yes
Queue scheduling algorithms	Strict Priority Queue (SPQ), Deficit weighted round robin (DWRR), Weighted Round Robin (WRR)
Multicast support	Yes
MLD entries	192
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Fan fail, Link, PoE, Power, Speed
Number of fans	1 fan(s)
Safety	cUL, CB, CE, CCC, BSMI
Certification	CE, FCC, C-Tick, VCCI, BSMI, CCC
Maximum cable length	100 m
Mean time between failures (MTBF)	676329 h
AC input voltage	100 - 240 V
Power consumption (max)	293.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	440 mm
Depth	250 mm
Height	44 mm
Weight	3.43 kg
Harmonized System (HS) code	85176990
Description
Description	D-Link DMS-1100-10TP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
