| SSD form factor | 2.5" |
| SSD capacity | 240 GB |
| Interface | Serial ATA III |
| Memory type | TLC 3D NAND |
| NVMe | No |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 44000 IOPS |
| Random write (4KB) | 15500 IOPS |
| Random read (100% span) | 44000 IOPS |
| Random write (100% span) | 15500 IOPS |
| Random latency - read (up to) | 102 µs |
| Random latency - write (up to) | 61 µs |
| Sequential latency - read (up to) | 36 µs |
| Sequential latency - write (up to) | 37 µs |
| End-to-End Data Protection | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| SSD temperature monitoring | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Use conditions | Server/Enterprise |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G162706 |
| Power consumption (idle) | 1 W |
| Operating temperature (T-T) | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Harmonized System (HS) code | 84717070 |
| Internal memory type | SATA 3.0 6Gb/S |
| Processor family | Intel SSD D3 |
| Power consumption (active) | 2.3 W |
| Launch date | Q3'21 |
| SSD endurance rating | 1.0 PBW |
| SSD shock | 1000G,0.5ms |
| Sequential reading | 470 MB/s |
| Sequential writing speed | 233 MB/s |
| Status | Launched |
| Description |

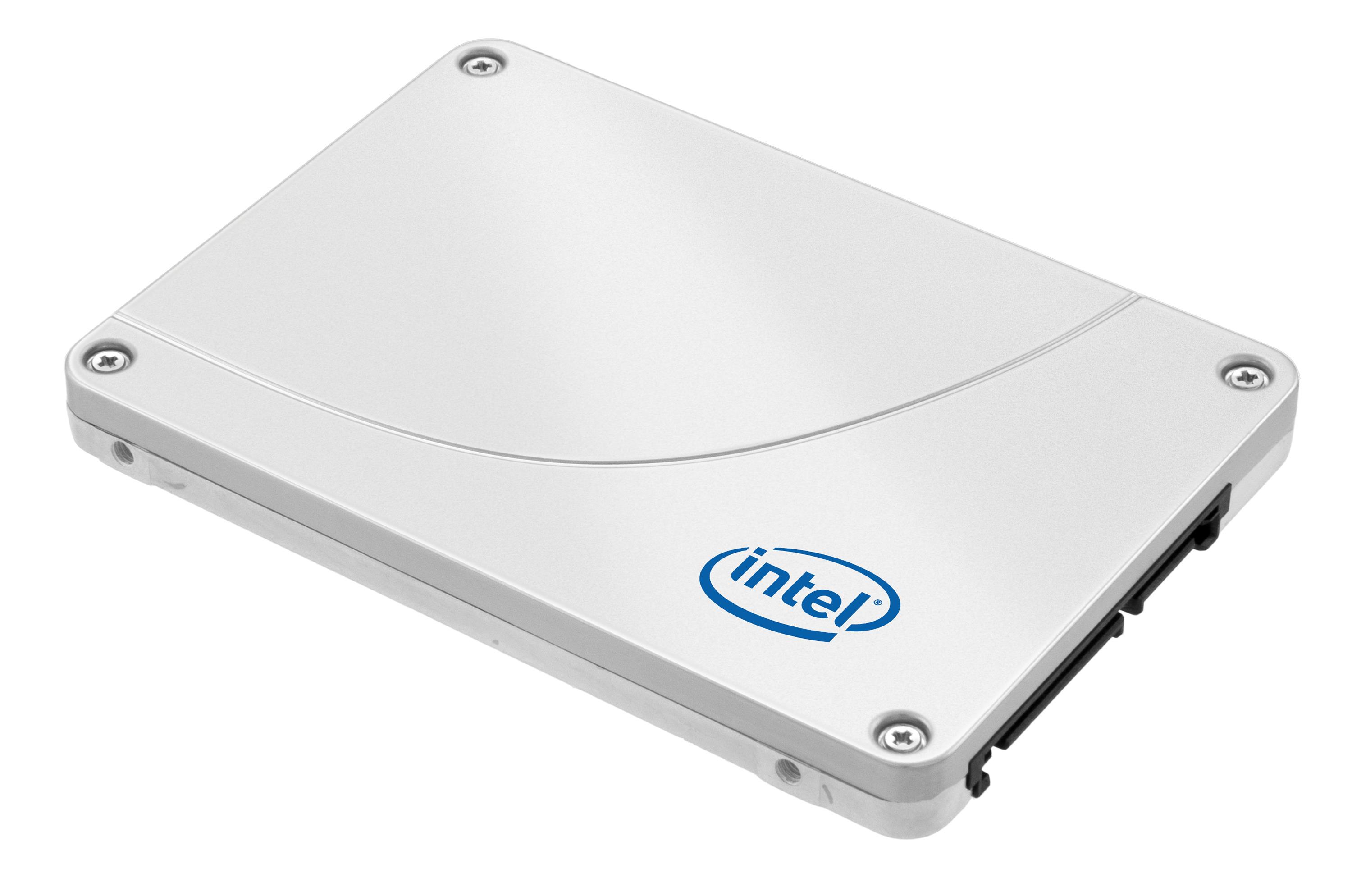

| D3 S4520. SSD capacity: 240 GB, SSD form factor: 2.5", Data transfer rate: 6 Gbit/s, Component for: Server/workstation |
