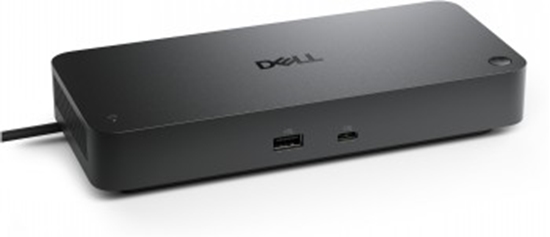

DELL PRO TB5 SMART DOCK - SD25TB5 (300W-USB-C-TB5, DP2.1, HDMI 2.1, RJ45)

Dell Pro Thunderbolt 5 Smart Dock SD25TB5

The Dell Pro Thunderbolt 5 Smart Dock SD25TB5 is a high-end docking solution designed for demanding professional use and next-generation AI-PC environments. It supports up to four 4K displays and provides two Thunderbolt 5 ports along with up to 300 W power delivery for Dell Pro Premium- and Dell Pro Max notebooks (240 W for non-Dell, EPR support).

This is the world?s most manageable and secure dock ? supporting remote management without user presence through Dell Device Management Console, as well as Intel AMT management for vPro-compatible systems. WPA-3 (192-bit) encryption, Kernel DMA protection, and hardware-based tamper-resistant encryption ensure enterprise-grade security.

The dock is made from at least 65% recycled material and ships in fully renewable or recyclable packaging. A new durable USB-C connector and dual-sided (left/right) cable routing enhance usability. The SD25TB5 is the perfect choice when performance, manageability, and environmental responsibility are required.

• Interface: Thunderbolt 5 (USB-C)
• Power Delivery: 300 W (Dell), 240 W (non-Dell), EPR support

• 4 x QHD (2560x1440) @60 Hz
• 3 x WQHD (3440x1440) @60 Hz
• 2 x 4K (3840x2160) @60 Hz
• 1 x 5K (5120x2160) @60 Hz

• 4 x 4K (3840x2160) @60 Hz
• 3 x 4K (3840x2160) @60 Hz
• 2 x 6K (6144x3456) @60 Hz
• 1 x 8K (7680x4320) @60 Hz

• 4 x 4K (3840x2160) @120 Hz
• 3 x 4K (3840x2160) @120 Hz
• 2 x 6K (6144x3456) @60 Hz
• 1 x 8K (7680x4320) @60 Hz

• 2 x Thunderbolt 5 (15 W, works even without PC connection)
• 2 x DisplayPort 2.1
• 1 x HDMI 2.1
• 1 x USB-C 3.2 Gen 2 (Data only)
• 1 x USB-C 3.2 Gen 2 Multi-Function DisplayPort 2.1 (7.5 W PowerShare)
• 4 x USB-A 3.2 Gen 2 (10 Gbps, PowerShare 4.5 W)
• 1 x USB-C 3.2 Gen 2 (10 Gbps, PowerShare 15 W)
• 1 x RJ45 2.5Gb Ethernet
• Power In (330 W power adapter)

• Intel AMT on vPro-compatible systems over Thunderbolt
• MAC Address Pass-Through, PXE Boot, WOL, Dock Power Button Sync, WLAN?LAN switching
• Dell Device Management Console (cloud-based out-of-band management, scheduled and forced FW updates, inventory, zero-touch provisioning)

• Windows 10 & 11
• Ubuntu 24.04
• RHEL 9.7+
• ChromeOS 141
• macOS

• 205 x 90 x 35.25 mm
• Weight: 632 g (without power adapter)
• Cable length: 0.83 m (dual-sided routing left/right)
• Security slots: Kensington & wedge
• VESA mount support: 100 x 100 mm
• Made from at least 65% post-consumer recycled plastic

• 3-year hardware warranty (Advanced Exchange)
• Optional 4- or 5-year extended warranty
• Package includes: dock, 330 W power adapter and cord, quick start guide, safety/environmental/regulatory information
