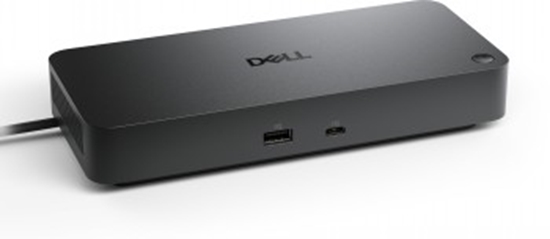

DELL PRO DOCK - WD25 (100W-USB-C, DP1.4, HDMI2.1, RJ45)

Dell Pro Dock WD25

The Dell Pro Dock WD25 is a versatile and powerful USB-C docking station designed to meet the needs of today?s modern workplace. It delivers up to 100W of power to Dell laptops and up to 96W to non-Dell systems, while supporting up to four high-resolution displays. WD25 is an excellent choice for both Dell and non-Dell laptops, significantly improving workspace efficiency and connectivity.

This dock is part of the world's most manageable commercial docking family and enables centralized device management via the cloud-based Dell Device Management Console. It also supports MAC Address Pass-Through, Power Button Sync, and secure remote boot features.

Environmental awareness is not forgotten: the WD25 is made from at least 65% recycled materials and consumes up to 72% less power in standby compared to previous models. It is shipped in 100% recyclable or renewable packaging.

• Interface: USB Type-C (DP Alt Mode)
• Power Delivery:
  • 100W for Dell laptops
  • 96W for non-Dell systems
• Display support without DSC (DP 1.4):
  • 4 x SXGA (1280 x 1024) @60 Hz
  • 3 x FHD (1920 x 1080) @60 Hz
  • 2 x QHD (2560 x 1440) @60 Hz
  • 1 x 4K (3840 x 2160) @60 Hz
• Display support with DSC (DP 1.4 / 2.1):
  • 4 x WQHD (3440 x 1440) @60 Hz
  • 3 x WQHD (3440 x 1440) @60 Hz
  • 2 x 5K (5120 x 2160) @60 Hz
  • 1 x 6K (6144 x 3456) @60 Hz

• 2 x DisplayPort 1.4
• 1 x HDMI 2.1
• 1 x USB-C 3.2 Gen 2 (DP 1.4)
• 4 x USB-A 3.2 Gen 2 (10 Gbps, PowerShare 4.5W)
• 1 x USB-C 3.2 Gen 2 (10 Gbps, PowerShare 15W)
• 1 x USB-C Multi-function DisplayPort (PowerShare 7.5W)
• 1 x 2.5 Gigabit Ethernet (RJ45)
• 1 x power input (130W adapter)

• MAC Address Pass-Through
• PXE Boot
• Power Button Sync
• Wake-On-LAN
• WLAN to LAN switching
• Kernel DMA protection
• Dell Firmware Utility
• Dell Display and Peripheral Manager
• Dell Command Update
• Dell Device Management Console (cloud-based)

• Windows 10 and 11
• Ubuntu 24.04
• Red Hat Enterprise Linux 9.6+
• ChromeOS 137

• Dimensions: 205 x 90 x 35.25 mm
• Weight: 550 g (without power adapter)
• Cable length: 0.9 m
• Security: Kensington & wedge lock slots
• Made from at least 65% recycled materials
• 100% recyclable or renewable packaging

• 3-year hardware warranty (Advanced Exchange)
• Optional 4- or 5-year extended warranty
• Package includes:
  • Dell Pro Dock WD25
  • 130W power adapter and power cable
  • Quick Start and Safety documentation
