    • Habotest Miernik rezystancji uziemienia Habotest HT5910
    Ražotājs: HABOTEST

    Habotest Miernik rezystancji uziemienia Habotest HT5910


    €123,60 ar pvn

    Artikuls: ST09594106
    Preces kods: HT5910
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    PL

    Specifikācija
    Producer Model Tripping time Tripping current Contact voltage Alternating Voltage Frequency Loop resistance (RL) RL current test Multiplying power of measuring current Current level (IΔN) Phase angle Power supply Dimensions Weight Safety rating Data storage Interface
    Description

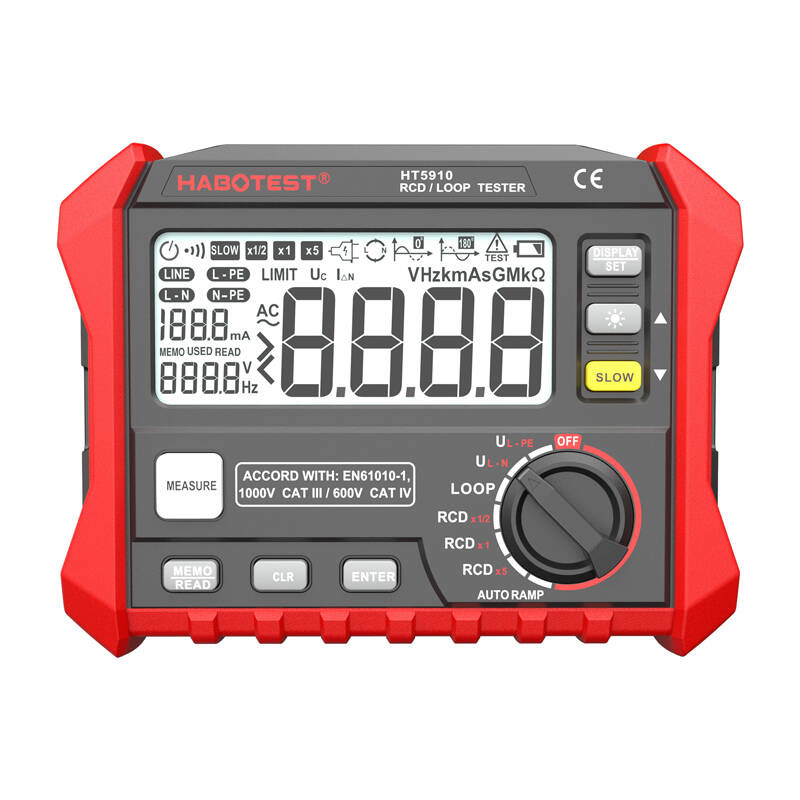

    Digital RCD / Loop Resistance Tester Habotest HT5910

    The Habotest HT5910 resistance tester is a tool that will allow you to get resistance measurements of power circuits. It offers loop, RCD and AUTORAMP measurements. It has an easy-to-read LCD display that will provide you with quick and clear information about the data obtained.

    Functionality first of all

    With the help of the meter you will successfully obtain information on earth resistance. You will gain access to 100 groups, which store data from performed measurements. The device is equipped with a special knob which allows you to select the desired type of measurement and start the meter operation with the "Measure" button.

    Convenience of use

    The HT5910 uses an easy-to-read LCD screen that displays all data obtained. This gives you instant access to your measurements, even in dim or bright environments. The meter draws its power from 6 AA batteries, which must be purchased separately.

    Habotest
    HT5910
    1 x IΔ N300 (500ms), 5 x IΔ N40ms (150ms) (±3ms)
    (0.2-1.1)IΔN (±0.1IΔN)
    0~99.9V (±10%+0.2V)
    0~440 V (±3%+3V)
    DC, 45~65 Hz (±1 Hz)
    0.1~2000Ω (±10%+0.2d)
    0.51 IΔN (±10%+10d)
    x0.5, x1, x5
    10 mA, 30 mA, 100 mA, 300 mA, 500 mA
    0° or 180°
    6 x AA 1.5V battery (not supplied)
    180 x 140 x 65 mm
    Approximately 95 g
    EN61010-1 / CAT.III600V
    100 groups
    USB2.0
    Description
    Digital RCD / Loop Resistance Tester Habotest HT5910 The Habotest HT5910 resistance tester is a tool that will allow you to get resistance measurements of power circuits. It offers loop, RCD and AUTORAMP measurements. It has an easy-to-read LCD display that will provide you with quick and clear information about the data obtained. Functionality first of all With the help of the meter you will successfully obtain information on earth resistance. You will gain access to 100 groups, which store data from performed measurements. The device is equipped with a special knob which allows you to select the desired type of measurement and start the meter operation with the "Measure" button. Convenience of use The HT5910 uses an easy-to-read LCD screen that displays all data obtained. This gives you instant access to your measurements, even in dim or bright environments. The meter draws its power from 6 AA batteries, which must be purchased separately. Producer Habotest Model HT5910 Tripping time 1 x IΔ N300 (500ms), 5 x IΔ N40ms (150ms) (±3ms) Tripping current (0.2-1.1)IΔN (±0.1IΔN) Contact voltage 0~99.9V (±10%+0.2V) Alternating Voltage 0~440 V (±3%+3V) Frequency DC, 45~65 Hz (±1 Hz) Loop resistance (RL) 0.1~2000Ω (±10%+0.2d) RL current test 0.51 IΔN (±10%+10d) Multiplying power of measuring current x0.5, x1, x5 Current level (IΔN) 10 mA, 30 mA, 100 mA, 300 mA, 500 mA Phase angle 0° or 180° Power supply 6 x AA 1.5V battery (not supplied) Dimensions 180 x 140 x 65 mm Weight Approximately 95 g Safety rating EN61010-1 / CAT.III600V Data storage 100 groups Interface USB2.0

    Specifikācija
    Producer Model Tripping time Tripping current Contact voltage Alternating Voltage Frequency Loop resistance (RL) RL current test Multiplying power of measuring current Current level (IΔN) Phase angle Power supply Dimensions Weight Safety rating Data storage Interface
    Description

    Digital RCD / Loop Resistance Tester Habotest HT5910

    The Habotest HT5910 resistance tester is a tool that will allow you to get resistance measurements of power circuits. It offers loop, RCD and AUTORAMP measurements. It has an easy-to-read LCD display that will provide you with quick and clear information about the data obtained.

    Functionality first of all

    With the help of the meter you will successfully obtain information on earth resistance. You will gain access to 100 groups, which store data from performed measurements. The device is equipped with a special knob which allows you to select the desired type of measurement and start the meter operation with the "Measure" button.

    Convenience of use

    The HT5910 uses an easy-to-read LCD screen that displays all data obtained. This gives you instant access to your measurements, even in dim or bright environments. The meter draws its power from 6 AA batteries, which must be purchased separately.

    Habotest
    HT5910
    1 x IΔ N300 (500ms), 5 x IΔ N40ms (150ms) (±3ms)
    (0.2-1.1)IΔN (±0.1IΔN)
    0~99.9V (±10%+0.2V)
    0~440 V (±3%+3V)
    DC, 45~65 Hz (±1 Hz)
    0.1~2000Ω (±10%+0.2d)
    0.51 IΔN (±10%+10d)
    x0.5, x1, x5
    10 mA, 30 mA, 100 mA, 300 mA, 500 mA
    0° or 180°
    6 x AA 1.5V battery (not supplied)
    180 x 140 x 65 mm
    Approximately 95 g
    EN61010-1 / CAT.III600V
    100 groups
    USB2.0
    Description
    Digital RCD / Loop Resistance Tester Habotest HT5910 The Habotest HT5910 resistance tester is a tool that will allow you to get resistance measurements of power circuits. It offers loop, RCD and AUTORAMP measurements. It has an easy-to-read LCD display that will provide you with quick and clear information about the data obtained. Functionality first of all With the help of the meter you will successfully obtain information on earth resistance. You will gain access to 100 groups, which store data from performed measurements. The device is equipped with a special knob which allows you to select the desired type of measurement and start the meter operation with the "Measure" button. Convenience of use The HT5910 uses an easy-to-read LCD screen that displays all data obtained. This gives you instant access to your measurements, even in dim or bright environments. The meter draws its power from 6 AA batteries, which must be purchased separately. Producer Habotest Model HT5910 Tripping time 1 x IΔ N300 (500ms), 5 x IΔ N40ms (150ms) (±3ms) Tripping current (0.2-1.1)IΔN (±0.1IΔN) Contact voltage 0~99.9V (±10%+0.2V) Alternating Voltage 0~440 V (±3%+3V) Frequency DC, 45~65 Hz (±1 Hz) Loop resistance (RL) 0.1~2000Ω (±10%+0.2d) RL current test 0.51 IΔN (±10%+10d) Multiplying power of measuring current x0.5, x1, x5 Current level (IΔN) 10 mA, 30 mA, 100 mA, 300 mA, 500 mA Phase angle 0° or 180° Power supply 6 x AA 1.5V battery (not supplied) Dimensions 180 x 140 x 65 mm Weight Approximately 95 g Safety rating EN61010-1 / CAT.III600V Data storage 100 groups Interface USB2.0
