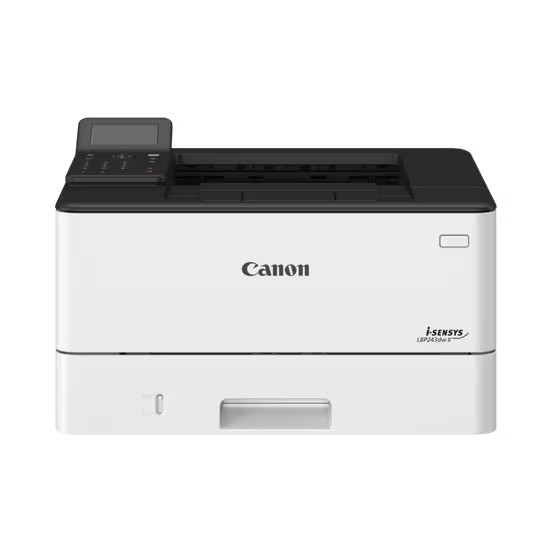

Canon i-SENSYS LBP 243 dw II

Print Specifications

Print Speed

Single sided : Up to 36 ppm (A4), Up to 58.8 ppm(A5-Landscape)
Double sided : Up to 30.2 ipm (A4)

Printing Method

Monochrome laser beam printing

Print Quality

Up to 1200 x 1200 dpi

Warm-up Time

Approx. 14 seconds or less from power on

First-Print-Out Time

Approx: 5.0 seconds or less

Printer Languages

UFRII, PCL5e, PCL6

Fonts

45 PCL fonts

Print Margins

5 mm-top, bottom, left and right

Advanced Printing Features

Microsoft Universal Print support
iOS: AirPrint, Canon PRINT Business app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT app, IPP everywhere

Media Handling

Paper Input (Standard)

250-sheet cassette
100-sheet multi-purpose tray

Paper Input (Option)

550-sheet cassette

Maximum Paper Input Capacity

Up to 900 sheets

Paper Output

150-sheet

Media Types

Plain paper, Recycled paper, Heavy Paper, Thin paper, Coated paper, Label, Post card, Envelope

Media Sizes

Cassette (Standard and optional):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K,
Custom sizes: Min. 105 x 148 mm Max. 216.0 x 355.6 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Indexcard, Envelope (COM10, Monarch, C5, DL),
Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.

Media Weights

Cassette (standard and optional): 60 to 120 g/m²
Multi-purpose tray: 60 to 199 g/m²

Double Sided Printing

A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, GLGL, Foolscap
Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm
60 to 120 g/m²

Interface & Software

Interface Type

USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

Operating System Compatibility

Windows® 11 / Windows® 10 / Server® 2025 / Server® 2022 / Server® 2019 / Server® 2016
Mac OS X version 10.15 & up
Linux

Network Protocol

Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

Management:
SNMPv1, SNMPv3 (IPv4,IPv6)

Security:
TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode:
WPA2-PSK(AES), WPA3-SAE (AES)

Software and Printer Management

Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
Cooperating with External Security Audit System (Security Information and Event Management)
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

General Features

Recommended Monthly Print Volume

750 - 4,000 pages per month

Duty Cycle

80,000 pages

Processor Speed

1200MHz

Memory

1GB

Storage

4GB

Control Panel

5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad

Dimensions with Trays
(W x D x H)

399 mm x 373 mm x 249 mm

Weight

Approx. 9.5 Kg

Operating Environment

Temperature: 10 to 30ºC (50 to 86ºF)
Humidity 20 to 80% RH (no condensation)

Power Source

220-240V(±10%) 50/60Hz (±2Hz)

Power Consumption

Maximum: Approx. 1,250 W
Active printing: Approx. 480W
Standby: Approx. 6 W
Sleep mode: Approx. 0.9 W
Typical Electricity Consumption (TEC): 0.29 kWh/week (230V)
For detailed information relating to Lot26 regulation, please go to:
http://www.canon-europe.com/For_Work/Lot26/index.aspx

Noise Levels

Sound Pressure:
Active: Simplex 54 dB or less
Duplex 52 dB or less
Standby: Inaudible

Sound Power:
Active: Simplex 68 dB or less
Duplex 67 dB or less
Standby: Inaudible

Consumables

Cartridges

Cartridge 070 (3,000 pages)
Cartridge 070H (10,200 pages)

Accessories & Options

Items

Cassette Feeding Module-AH1 (Option)
