    • Easylan DualBoot® PushPull Patch Cable Cat.6A (Class EA), S/FTP, RJ45 / RJ45, white, 10 m
    Ražotājs: EASYLAN

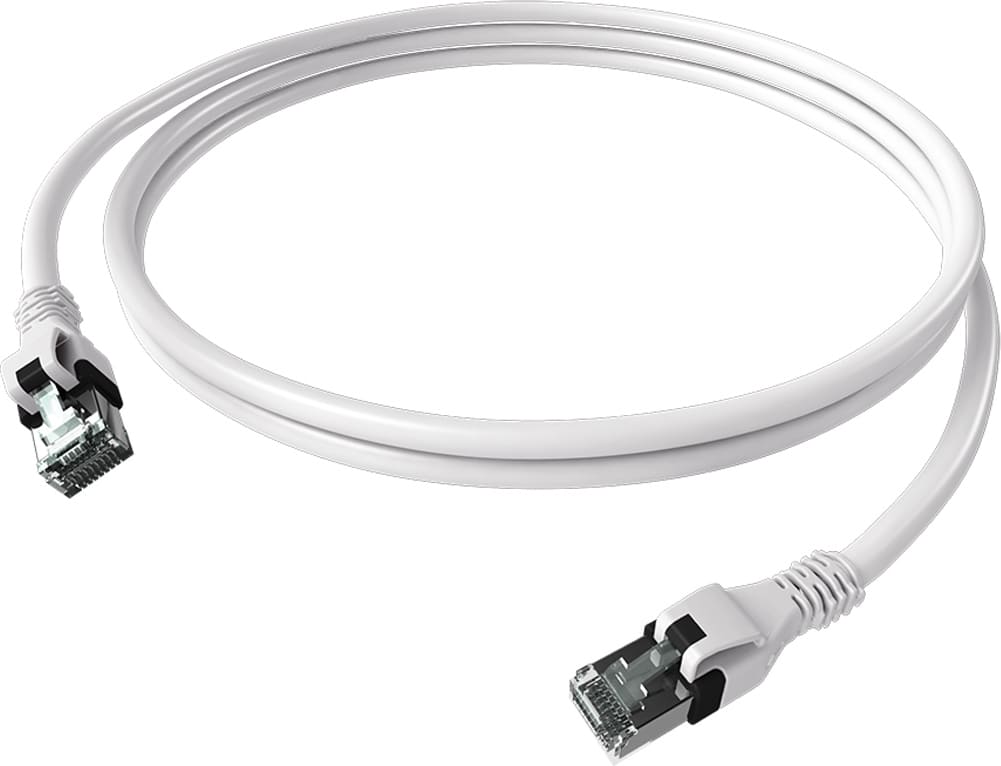

    Easylan DualBoot® PushPull Patch Cable Cat.6A (Class EA), S/FTP, RJ45 / RJ45, white, 10 m


    €35,27 ar pvn

    Artikuls: ST09568944
    Preces kods: CPP1OWAWAW0100
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    manufacturerEasyLan
    product groupTwisted Pair Cable
    product typeS / FTP patch cable PiMF
    colourwhite
    side 1 connector typeRJ-45
    side 1 connector genderMale
    side 2 connector typeRJ-45
    side 2 connector genderMale
    weight443.62 g
    height of packaging (single piece)30 mm
    width of packaging (single piece)200 mm
    depth of packaging (single piece)210 mm
    package weight (single piece)0.42 kg
    gross weight0.42
    technical particularityPush-Pull-Technik
    transfer qualityCat6A / Class EA
    height14 mm
    width13 mm
    depth10000 mm
    material (external cable mantle)Halogenfreier Compound
    operating temperature min.-25 °C
    operating temperature max.60 °C
    cable lsohyes
    shield typePiMF
    quantity of wires8
    impedance100 Ohm
    conductor cross section (awg)AWG 26
    conductor typeStranded
    crossedno
    locking leveryes
    anti-kink sleeveMoulded-on
    connector type rj45saCon®
    garums10 m
    Description

    PushPull IP20 Patch cable RJ45 DualBoot®, cat. 6A ISO/IEC, shielded

    PushPull connection cable RJ45/RJ45, shielded 1:1 pinout and featuring DualBoot® overmoulding incl. PushPull unlock protection. In this RJ45 plug variant, the small RJ45 tab is not pressed to release, instead all you have to do is pull on the boot. PushPull locking works with any standard RJ45 socket and jack. The PushPull patch cable facilitates e.g. patching in densely packed data center patch panels, in difficult-to-access consolidation points or for subscriber ports in floor boxes. The plugs are optimized for applications in high density switches. Use of DualBoot® overmoulding ensures optimal strain relief and eliminates catching of locking levers. The patch cable provides maximum data reliability via its foil shield and 360° shielded RJ45 plugs.

    Specifikācija
    manufacturerEasyLan
    product groupTwisted Pair Cable
    product typeS / FTP patch cable PiMF
    colourwhite
    side 1 connector typeRJ-45
    side 1 connector genderMale
    side 2 connector typeRJ-45
    side 2 connector genderMale
    weight443.62 g
    height of packaging (single piece)30 mm
    width of packaging (single piece)200 mm
    depth of packaging (single piece)210 mm
    package weight (single piece)0.42 kg
    gross weight0.42
    technical particularityPush-Pull-Technik
    transfer qualityCat6A / Class EA
    height14 mm
    width13 mm
    depth10000 mm
    material (external cable mantle)Halogenfreier Compound
    operating temperature min.-25 °C
    operating temperature max.60 °C
    cable lsohyes
    shield typePiMF
    quantity of wires8
    impedance100 Ohm
    conductor cross section (awg)AWG 26
    conductor typeStranded
    crossedno
    locking leveryes
    anti-kink sleeveMoulded-on
    connector type rj45saCon®
    garums10 m
    Description

    PushPull IP20 Patch cable RJ45 DualBoot®, cat. 6A ISO/IEC, shielded

    PushPull connection cable RJ45/RJ45, shielded 1:1 pinout and featuring DualBoot® overmoulding incl. PushPull unlock protection. In this RJ45 plug variant, the small RJ45 tab is not pressed to release, instead all you have to do is pull on the boot. PushPull locking works with any standard RJ45 socket and jack. The PushPull patch cable facilitates e.g. patching in densely packed data center patch panels, in difficult-to-access consolidation points or for subscriber ports in floor boxes. The plugs are optimized for applications in high density switches. Use of DualBoot® overmoulding ensures optimal strain relief and eliminates catching of locking levers. The patch cable provides maximum data reliability via its foil shield and 360° shielded RJ45 plugs.
