Iepriekšējais produktsEaton 9SX6KiRT uninterrupti...

Nākamais produktsEaton 9SXEBM180RT UPS batte...

Ražotājs: EATON

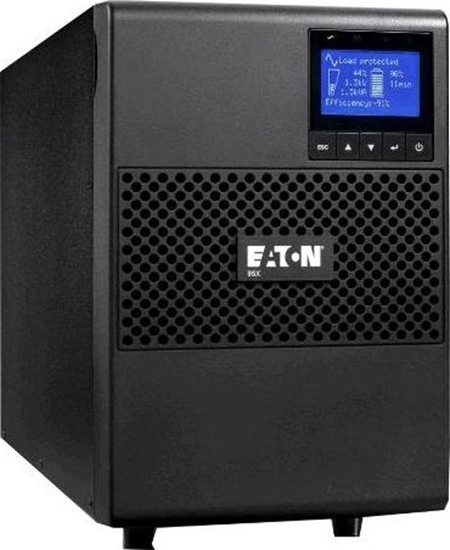

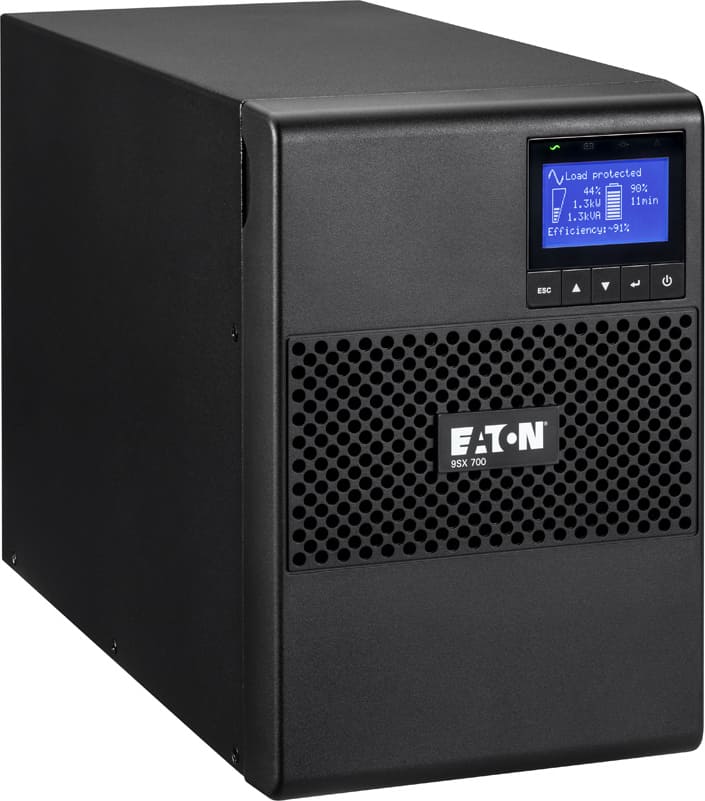

Eaton 9SX700I uninterruptible power supply (UPS) Double-conversion (Online) 0.7 kVA 630 W 6 AC outlet(s)

€785,22 ar pvn

Artikuls: ST03305417

Preces kods: 9SX700I

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
DE	5 - 10 dienās	2	€785,22 ar pvn
PL	8 - 15 dienās	4	€826,70 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4
Specifikācija 5

Izejas jauda	630
Tips	Double Conversion Online
Ligzda (IEC320)	Jā
Ligzda (USB)	Jā
Ligzda (RS232)	Jā
Nominālais efekts (VA)	700

UPS topology	Double-conversion (Online)
Output power capacity	0.7 kVA
Output power	630 W
Waveform	Pure sine
Input operation voltage (min)	120 V
Input operation voltage (max)	276 V
Input frequency	40/70 Hz
Output operation voltage (min)	200 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Number of input phases	1
Number of output phases	1
Power factor	0.9
ECO mode	No
Noise level	40 dB
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	6 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
Serial interface	Yes
RS-232 ports	1
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	14 min
Hot-swap battery	Yes
Automatic battery test	Yes
Form factor	Mini Tower
Product colour	Black
Display type	LCD
Safety	IEC/EN 62040-1, UL 1778, CSA 22.2
Certification	IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Operating temperature (T-T)	0 - 40 °C
Width	160 mm
Depth	357 mm
Height	252 mm
Weight	11.5 kg
Management card included	No
Bundled software	Intelligent Power Software suite
Harmonized System (HS) code	85078000
Input connection type	IEC C14
Nominal output voltage	230 V
Nominal input voltage	230 V
Description
Description	Eaton 9SX700I. UPS topology: Double-conversion (Online), Output power capacity: 0.7 kVA, Output power: 630 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 14 min. Form factor: Mini Tower, Product colour: Black, Display type: LCD. Width: 160 mm, Depth: 357 mm, Height: 252 mm

manufacturer

Eaton

product group

USV

product type

UPS Online

colour

black

weight

11.5 kg

height of packaging (single piece)

0 mm

width of packaging (single piece)

0 mm

depth of packaging (single piece)

0 mm

package weight (single piece)

11.5 kg

gross weight

11.5

current catalog edition

24.1

current catalog page

10.11

height

0.370

width

0.565

depth

0.300

operating temperature min.

-20 °C

operating temperature max.

40 °C

dimensions (hxwxd)

252 x 160 x 357 mm

interface

RS232, USB, MS-Slot, EPO

mounting form

Tower

rs-232 interface

usb 2.0 interface

conformity

IEC/EN 62040-1, UL 1778, CSA 22.2; IEC/EN 62040 -2 , FCC ...

acoustic level

<40dB

classification (iec 62040-3)

VFI-SS-111

ups technology

Online

output (va/w)

700 / 630

backup time full/half-load

5 / 13 min

voltage (input)

190- 276 V without derating; 120 - 276 V with derating

voltage (output)

200/208/220/230/240V

frequency

40-70Hz, 50/60Hz autoselection, frequency converter mode

connector type (input)

C14

connector type (output)

(6) C13

phase in/output

230V/230V / 50Hz

over current protection

EMI,- RFI-Filter

slot for adapter card

MS-Slot

additional over current protector

nein

activity display

multilinugual

incl.management software

für die gängigen OS

internal cooling

Aktiv, Lüfter

ambient temperature

Elektronik -20°C bis +40°C; Batterien 20°C bis 25°C nach ...

output voltage regulation

+/-??????????????%

hot swap batteries

Ja, Frontseite

bypass

automatisch + manuell

activity led

efficiency

????????????????????????????? %

Description

Description	EATON 9SX 700i
VatType	VAT
Weight	13.800000000
Height	295.000000000
Width	385.000000000
Length	575.000000000
Description
Description	EATON 9SX 700i

Description	EATON 9SX 700i
VatType	VAT
Weight	13.800000000
Height	295.000000000
Width	385.000000000
Length	575.000000000
Description
Description	EATON 9SX 700i
