    • Intellinet 508544 tīlkla mediju pārveidotājs 850 nm Multi režīms
    Ražotājs: INTELLINET

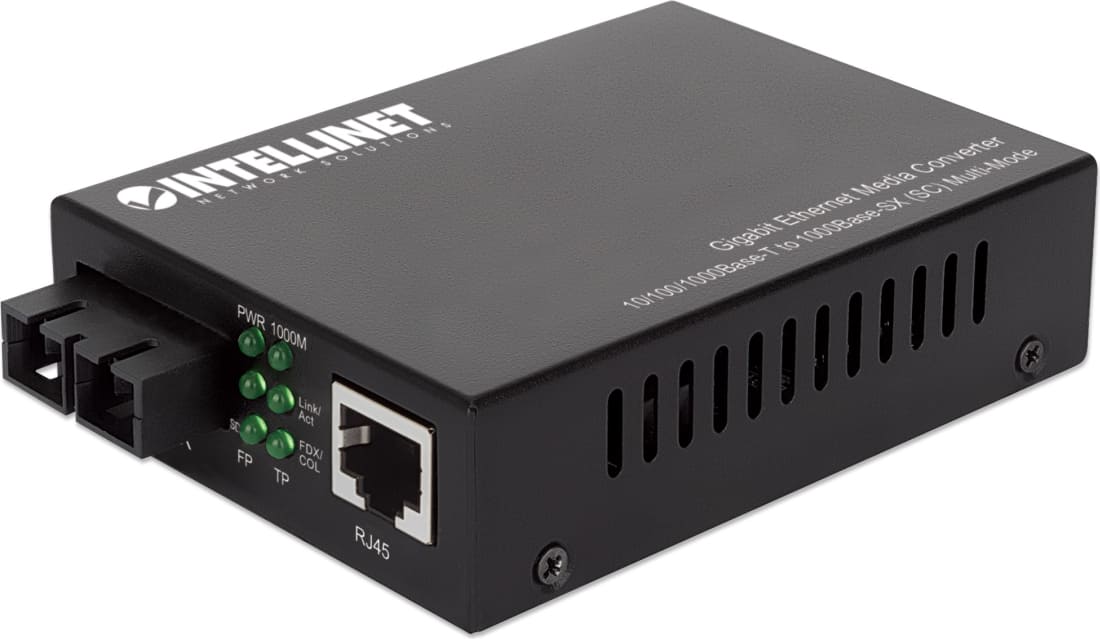

    Intellinet 508544 tīlkla mediju pārveidotājs 850 nm Multi režīms


    €120,02 ar pvn

    Artikuls: ST09575697
    Preces kods: 508544
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    link fault pass-through (lfp)Yes
    height26 mm
    width94 mm
    depth70 mm
    auto-negotiationYes
    quality of service (qos) supportYes
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
    cable types supportedCat5e
    led indicatorsLAN, Link, Power, Signal strength
    operating temperature (t-t)-10 - 55 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)5 - 90%
    certificationFCC Class B, CE, RoHS, UKCA, NDAA
    internalNo
    ethernet interface typeFast Ethernet, Gigabit Ethernet
    manualYes
    ethernet lan data rates10,100,1000 Mbit/s
    duplex systemFull, Half
    maximum transfer distance550 m
    wavelength850 nm
    fiber mode structureMulti-mode
    fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
    tx power (min)-9 dBmW
    tx power (max)-3 dBmW
    housing materialMetal
    fiber optic connectorSC
    connectivity technologyWired
    ethernet lan (rj-45) ports1
    fiber ports quantity2
    external power adapterYes
    ac adapter includedYes
    jumbo frames supportYes
    quick installation guideYes
    jumbo frames9.2
    supported network protocolsUTP/STP
    warranty period3 year(s)
    vlan supportYes
    Description
    Intellinet 508544. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Ethernet interfeisa tips: Ātrais Ethernet, Tīkls Gigabit Ethernet, Ethernet LAN datu pārsūtīšanas ātrums: 10,100,1000 Mbit/s. Maksimālais pārskaitījums attālums: 550 m, Viļņa garums: 850 nm, Šķiedras režīma struktūra: Multi režīms. LED indikatori: LAN, Link, Jauda, Signāla stiprums, Apvalka materiāls: Metāls. Optiskās šķiedras konektors: SC, Savienojamības tehnoloģija: Vadu. Platums: 94 mm, Dziļums: 70 mm, Augstums: 26 mm

    Specifikācija
    link fault pass-through (lfp)Yes
    height26 mm
    width94 mm
    depth70 mm
    auto-negotiationYes
    quality of service (qos) supportYes
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
    cable types supportedCat5e
    led indicatorsLAN, Link, Power, Signal strength
    operating temperature (t-t)-10 - 55 °C
    storage temperature (t-t)-40 - 70 °C
    operating relative humidity (h-h)5 - 90%
    certificationFCC Class B, CE, RoHS, UKCA, NDAA
    internalNo
    ethernet interface typeFast Ethernet, Gigabit Ethernet
    manualYes
    ethernet lan data rates10,100,1000 Mbit/s
    duplex systemFull, Half
    maximum transfer distance550 m
    wavelength850 nm
    fiber mode structureMulti-mode
    fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
    tx power (min)-9 dBmW
    tx power (max)-3 dBmW
    housing materialMetal
    fiber optic connectorSC
    connectivity technologyWired
    ethernet lan (rj-45) ports1
    fiber ports quantity2
    external power adapterYes
    ac adapter includedYes
    jumbo frames supportYes
    quick installation guideYes
    jumbo frames9.2
    supported network protocolsUTP/STP
    warranty period3 year(s)
    vlan supportYes
    Description
    Intellinet 508544. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Ethernet interfeisa tips: Ātrais Ethernet, Tīkls Gigabit Ethernet, Ethernet LAN datu pārsūtīšanas ātrums: 10,100,1000 Mbit/s. Maksimālais pārskaitījums attālums: 550 m, Viļņa garums: 850 nm, Šķiedras režīma struktūra: Multi režīms. LED indikatori: LAN, Link, Jauda, Signāla stiprums, Apvalka materiāls: Metāls. Optiskās šķiedras konektors: SC, Savienojamības tehnoloģija: Vadu. Platums: 94 mm, Dziļums: 70 mm, Augstums: 26 mm
