Ražotājs: INTELLINET

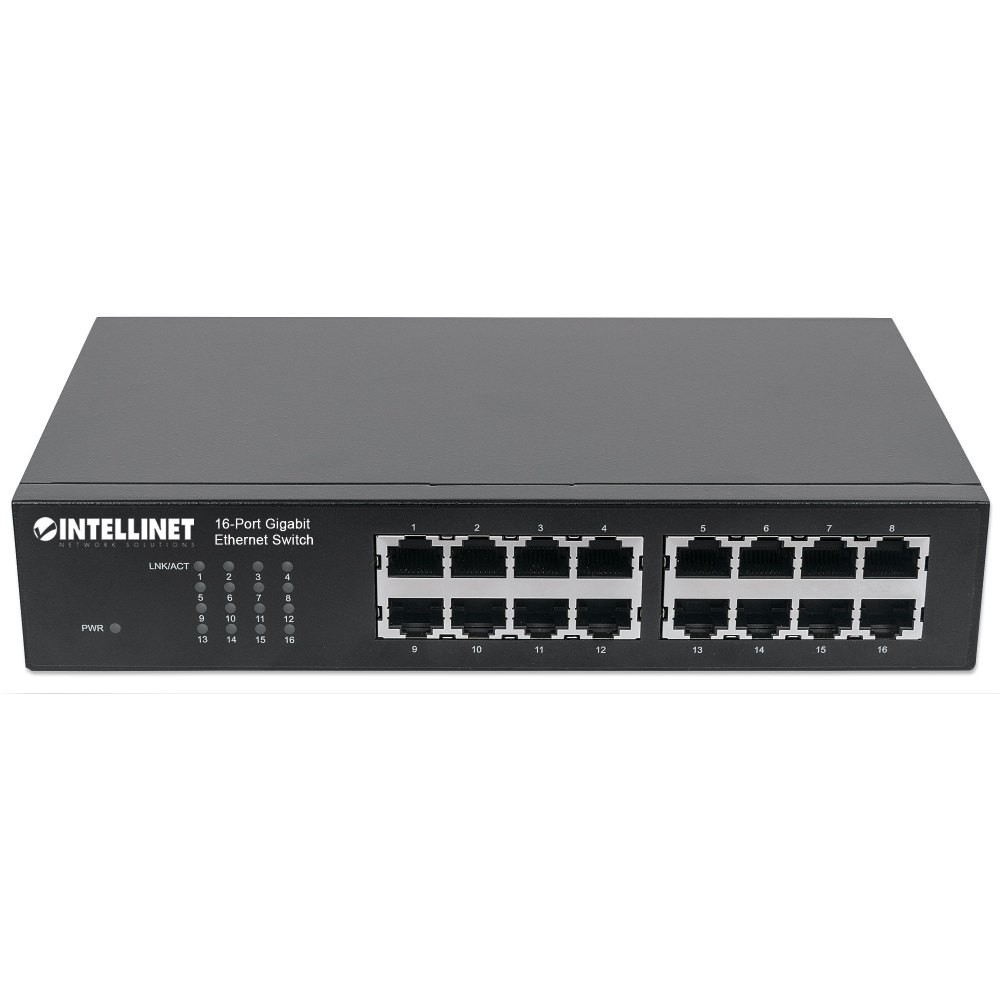

Intellinet 16-Port Gigabit Ethernet Switch, 16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, Desktop, 19" Rackmount

€110,70 ar pvn

Artikuls: ST07447977

Preces kods: 561068

Ražotāja mājaslapa

Garantija: 36 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	9 - 12 dienās	5	€110,70 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4

Īpašības	RJ-45
WRL stadarti	802.11b
Portu skaits RJ-45	16

Switch class	Unmanaged
Application	Home and small office
Network architecture	GigabitEthernet
Number of 10/100 Mbps ports	None
Number of 10/100/1000 Mbps ports	16
10/100/1000/2500 Mbps ports	None
Number of 10Gb ports	None
Number of PoE ports (PoE & PoE+)	None
Number of PoE+ ports	None
Number of COMBO ports	None
Number of SFP ports	None
Number of SFP+ ports	None
Number of SFP56 ports	None
Number of QSFP+ ports	None
Console port	No
Forwarding mode	Store-and-forward
Throughput	32 (Gigabajty na sek.)
Memory buffer	512 (Kilobajt)
MAC address table size	8192
Support for Jumbo frames	Yes
Jumbo frame size	9 (Kilobajt)
Supported protocols and standards	IEEE 802.3 (10Base-T Ethernet) IEEE 802.3ab (Skrętka Gigabit Ethernet) IEEE 802.3az (Energy Efficient Ethernet EEE) IEEE 802.3u (100Base-TX Fast Ethernet) IEEE 802.3x (kontrola przepływu, dla trybu full duplex)
Chassis type	Rack
Fan	No
Power supply	Internal
Power consumption	9.1 (Watt)
Environment requirements	Temperatura pracy: 0 - 40°C Wilgotność pracy: 10 - 90% RH, nieskondensowana Temperatura składowania: -20 70°C
Accessories included	Przełącznik Ethernet Gigabit 16-portowy Uchwyty mocujące 19" Kabel zasilający Instrukcja użytkownika
Power supply	Wewnętrzny zasilacz: 100 - 240 V AC, 50/60 Hz
Dimensions	215 x 133 x 44 mm
Weight	940 (gram)
Other features	Media transmisyjne: 10Base-T Cat3, 4, 5 UTP/STP RJ45 100Base-TX Cat5 UTP/STP RJ45 1000Base-T Cat5e UTP/STP RJ45 Przepustowość przesyłania/filtrowania pakietów: 1 488 000 p/s (1000 Mb/s) 148 800 p/s (100 Mb/s) 14 880 p/s (10 Mb/s) Tablica adresów MAC: 8192 wpisów Przepustowość magistrali: 32 Gb/s Architektura przełączania: store and forward
Designation	CE+WEEE
Width	325
Height	225
Depth	70
Weight	1732
Description
Description	Giga Switch 16x 10/100/1000 RJ45 16-Portowy Przełącznik Gigabit Ethernet Porty 10/100/1000 z automatycznym wykrywaniem optymalnej prędkości sieci Autokrosowanie MDIX na wszystkich portach RJ45 (auto uplink) Do stosowania w formie przełącznika desktop lub do montażu w racku 19" Auto-negocjacja NWay Architektura przełączania w technologii Store and forward Tryby full/half duplex Obsługa 802.3x flow control dla trybu full duplex oraz collision-based backpressure dla trybu half duplex Technologia ograniczania zużycia energii "Green Ethernet" deaktywuje nieużywane porty oraz dostosowuje poziom mocy na podstawie długości kabli Obsługa ramek jumbo o wielkości do 9 KB Tablica adresów MAC do 8 192 wpisów Bufor pamięci 512 kB Obsługa adresów MAC z funkcją auto-learning oraz auto-aging Konstrukcja bez wentylatora zapewnia cichą pracę Uchwyty montażowe 19"

Switch type	Unmanaged
Switch layer	L2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
MAC address table	8192 entries
Switching capacity	32 Gbit/s
Forwarding rate	1.488 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Rack mounting	Yes
Form factor	1U
Product colour	Black
Housing material	Metal
LED indicators	Yes
Certification	FCC Class A, CE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	9.1 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Width	215 mm
Depth	133 mm
Height	44 mm
Weight	940 g
Cables included	AC
Manual	Yes
Rack mount kit	Yes
Harmonized System (HS) code	85176990
Description
Description	Intellinet 16-Port Gigabit Ethernet Switch, 16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, Desktop, 19" Rackmount. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U

auto mdi/mdi-x

Yes

power over ethernet (poe)

weight

940 g

height

44 mm

width

215 mm

depth

133 mm

full duplex

Yes

auto-negotiation

Yes

switch type

Unmanaged

switch layer

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

gigabit ethernet (copper) ports quantity

networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10g support

copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

cable types supported

Cat3, Cat4, Cat5, Cat5e

flow control support

Yes

mac address table

8192 entries

switching capacity

32 Gbit/s

forwarding rate

1.488 Mpps

store-and-forward

Yes

rack mounting

Yes

form factor

product colour

Black

led indicators

Yes

power consumption (max)

9.1 W

operating temperature (t-t)

0 - 40 °C

storage temperature (t-t)

-20 - 70 °C

operating relative humidity (h-h)

10 - 90%

certification

FCC Class A, CE

harmonized system (hs) code

85176990

ac input voltage

100 - 240 V

ac input frequency

50 - 60 Hz

manual

Yes

housing material

Metal

cables included

jumbo frames support

Yes

jumbo frames

9000

rack mount kit

Yes

mac address auto-learning supported

Yes

mac address auto-aging supported

Yes

auto-sensing

Yes

Description

Intellinet 561068. Slēdža tips: Nepārvaldīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 16. Pilns duplekss. Adrešu tabulas izmērs: 8192 ieraksti, Komutācijas ietilpība: 32 Gbit/s. Tīkla standarts: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Statņa montāža, Formas faktors: 1U
