    Ražotājs: LINDY

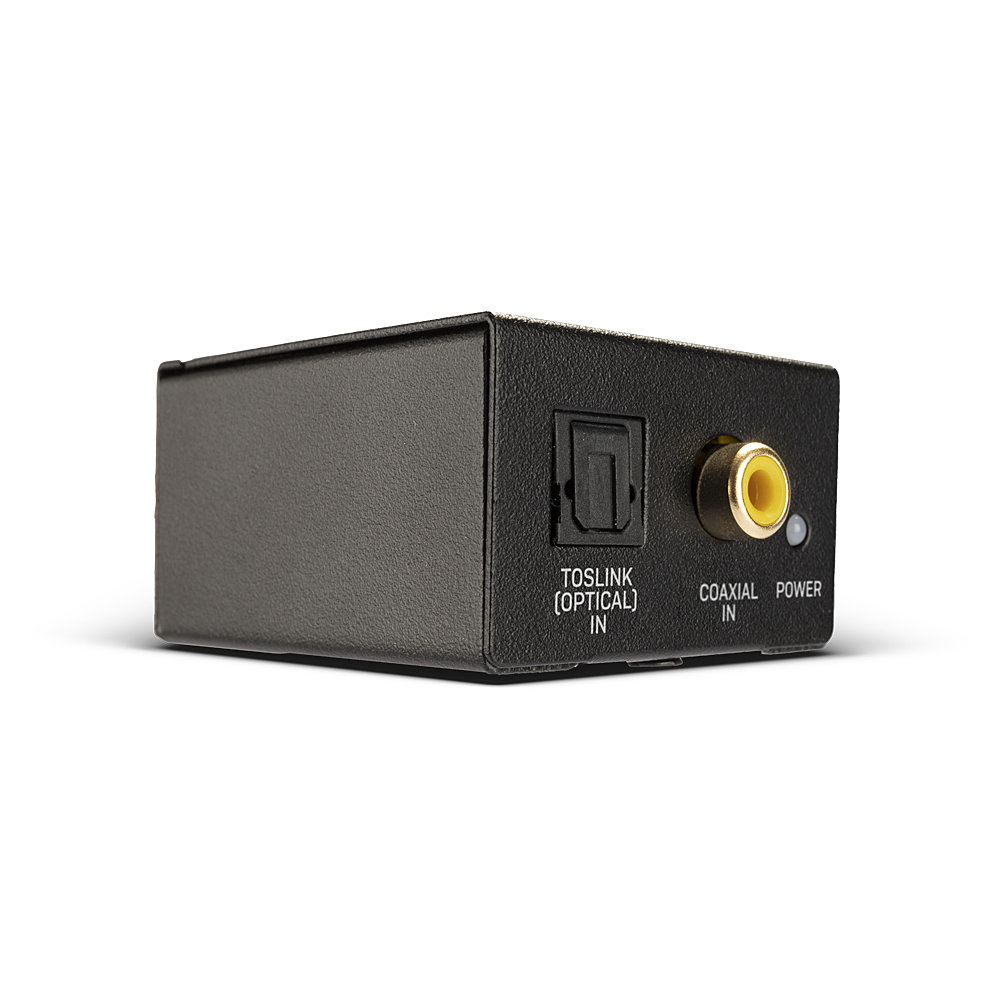

    Lindy TosLink (Optical) & Coaxial to Phono DAC


    €59,36 ar pvn

    Artikuls: ST07041246
    Preces kods: 70368
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Krāsa Melna
    Īpašības USB
    Width51 mm
    Depth26 mm
    Height41 mm
    Weight78 g
    Operating temperature (T-T)0 - 70 °C
    Storage temperature (T-T)-10 - 80 °C
    Operating relative humidity (H-H)10 - 80%
    Description
    Lindy TosLink (Optical) & Coaxial to Phono DAC. Width: 51 mm, Depth: 26 mm, Height: 41 mm
    weight78 g
    gross weight0.13
    height41 mm
    width51 mm
    depth26 mm
    country of originCN
    operating temperature (t-t)0 - 70 °C
    storage temperature (t-t)-10 - 80 °C
    operating relative humidity (h-h)10 - 80%
    net weight0.08
    packaging height11.00
    packaging lenght14.50
    packaging width5.00
    warranty2
    manualshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/8f/67/97/62/6297678f999c8d635dc13caa/Lindy_70368_Man_0920.pdf
    Description

    Specifications

    • Video Interface: -
    • Interface Standard: -
    • Supported Bandwidth: -
    • Maximum Resolution: -
    • HDCP Support: -
    • Audio Interface: TosLink (Optical), Digital Coaxial
    • Chipset: IA8416
    • Supported Audio: LPCM 2.0
    • Maximum Supported Audio Sample Rate: 24-bit / 96KHz
    • Input Impedance: 75 Ohm
    • Output Impedance: 75 Ohm
    • Output Voltage: 0.7V
    • Frequency Response: 10-20KHz
    • Signal to Noise Ratio: 100db
    • Special Features: -

    Connectors

    • Input: TosLink (Optical) (Female), Digital Coaxial (Female)
    • Output: Phono (R/L) (Female)
    • Power: 5.5/2.1mm

    Physical Properties

    • Dimensions (approx.) WxDxH: 51x26x41mm (2.01x1.02x1.61in)
    • Housing Material: Plastic
    • Net Weight: 0.078kg (0.17lb)
    • Operating Temperature: 0°C - 70°C (32°F - 158°F)
    • Storage Temperature: -10°C - 80°C (14°F - 176°F)
    • Humidity: 10 - 80% RH (non-condensing)
    • Power Requirements: 5VDC 1A
    • Colour: Black

    Miscellaneous

    • Packaging Type: Carton Box
    • Packaging Dimensions: 145x50x107mm (5.71x1.97x4.21in)
    • Gross Weight: 0.17kg (0.37lb)
    • Warranty (Years): 2
    • Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65

    Package Contents

    • TosLink (Optical) & Coaxial to Phono DAC
    • USB Type A to DC Cable, 1m
    • Lindy Manual

    Purchasing Information

    • No.: 70368
    • EAN: 4002888703680



    Manuals: Lindy_70368_Man_0920.pdf
