    Ražotājs: LINDY

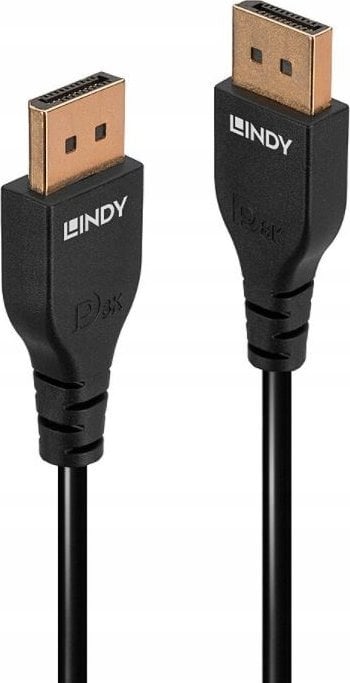

    Lindy 1m Slim DisplayPort 1.4 Cable


    €33,71 ar pvn

    Artikuls: ST08476416
    Preces kods: 36461
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL

    Specifikācija
    Īpašības Display port
    Krāsa Melna
    Krāsa Zelta
    cable shieldingCopper
    gross weight0.04
    data transfer rate32.4 Gbit/s
    cable length1 m
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)10 - 80 °C
    storage temperature (t-t)0 - 80 °C
    connector 1DisplayPort
    connector 2DisplayPort
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    package typePolybag
    connector contacts platingGold
    compliance certificatesREACH, RoHS
    jacket materialPolyvinyl chloride (PVC)
    awg wire size30
    connector 1 form factorStraight
    connector 2 form factorStraight
    maximum resolution7680 x 4320 pixels
    displayport version1.4
    maximum refresh rate144 Hz
    supported graphics resolutions4096 x 2160, 7680 x 4320
    supported video modes4320p
    number of shielding layers3
    contact materialPhosphor bronze
    net weight0.04
    packaging height0.00
    packaging lenght19.00
    packaging width17.00
    warranty10
    variation of36460
    Description

    Connectors:

    • Connector A: DisplayPort Male (Non-Latching)
    • Connector B: DisplayPort Male (Non-Latching)
    • Housing Material: PVC
    • Connector Plating: Gold plated
    • Pin Construction: Phosphor bronze
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: WxDxH: 19.4x9.6x42.6mm (0.76x0.37x1.66in)

    Cable construction:

    • Length: 1m (3.28ft)
    • Standard: DP 1.4
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 5.7mm (0.22in)
    • Jacket Material: PVC
    • Conductor Material: Copper
    • Conductor Gauge: 30AWG
    • Shielding: Tinned Copper Braid 85%

    Specifications:

    • Supported Bandwidth: 32.4 Gbps
    • Maximum Resolution: 7680x4320@60Hz 4:2:2
    • Nominal Attenuation:
    • -5.5dB @1350MHz
    • -8.5dB @2700MHz
    • -11dB @4050MHz
    • Minimum Bend Radius: 45.6mm (1.79in)
    • Operating Temperature: 10°C - 80°C (50°F - 176°F)
    • Storage Temperature: -0°C - 80°C (32°F - 176°F)

    Miscellaneous:

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL

    Purchasing Information:

    • No.: 36461
    • EAN: 4002888364614

    This product is also available in other lengths:

    • 36460 - 0.5m (1.64ft)
    • 36461 - 1m (3.28ft)
    • 36462 - 2m (6.56ft)
    • 36463 - 3m (9.84ft)


    Specifikācija
    Īpašības Display port
    Krāsa Melna
    Krāsa Zelta
    cable shieldingCopper
    gross weight0.04
    data transfer rate32.4 Gbit/s
    cable length1 m
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)10 - 80 °C
    storage temperature (t-t)0 - 80 °C
    connector 1DisplayPort
    connector 2DisplayPort
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    package typePolybag
    connector contacts platingGold
    compliance certificatesREACH, RoHS
    jacket materialPolyvinyl chloride (PVC)
    awg wire size30
    connector 1 form factorStraight
    connector 2 form factorStraight
    maximum resolution7680 x 4320 pixels
    displayport version1.4
    maximum refresh rate144 Hz
    supported graphics resolutions4096 x 2160, 7680 x 4320
    supported video modes4320p
    number of shielding layers3
    contact materialPhosphor bronze
    net weight0.04
    packaging height0.00
    packaging lenght19.00
    packaging width17.00
    warranty10
    variation of36460
    Description

    Connectors:

    • Connector A: DisplayPort Male (Non-Latching)
    • Connector B: DisplayPort Male (Non-Latching)
    • Housing Material: PVC
    • Connector Plating: Gold plated
    • Pin Construction: Phosphor bronze
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: WxDxH: 19.4x9.6x42.6mm (0.76x0.37x1.66in)

    Cable construction:

    • Length: 1m (3.28ft)
    • Standard: DP 1.4
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 5.7mm (0.22in)
    • Jacket Material: PVC
    • Conductor Material: Copper
    • Conductor Gauge: 30AWG
    • Shielding: Tinned Copper Braid 85%

    Specifications:

    • Supported Bandwidth: 32.4 Gbps
    • Maximum Resolution: 7680x4320@60Hz 4:2:2
    • Nominal Attenuation:
    • -5.5dB @1350MHz
    • -8.5dB @2700MHz
    • -11dB @4050MHz
    • Minimum Bend Radius: 45.6mm (1.79in)
    • Operating Temperature: 10°C - 80°C (50°F - 176°F)
    • Storage Temperature: -0°C - 80°C (32°F - 176°F)

    Miscellaneous:

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL

    Purchasing Information:

    • No.: 36461
    • EAN: 4002888364614

    This product is also available in other lengths:

    • 36460 - 0.5m (1.64ft)
    • 36461 - 1m (3.28ft)
    • 36462 - 2m (6.56ft)
    • 36463 - 3m (9.84ft)
