| Requires Expansion Slot Standard | PCI Express 4.0 x16 |
| Form Factor | Full-height |
| Video Chipset | AMD Radeon PRO W7700 |
| GPU Core Name | Navi 32 |
| GPU Quantity | 1 |
| Stream Processors Quantity | 1 x 3072 |
| Compute Units Quantity | 48 |
| Texture Mapping Unit Quantity | 1 x 192 |
| Render Output Units Quantity (ROP) | 1 x 96 |
| Ray-tracing Cores Quantity | 1 x 48 |
| Max. Monitors Supports | 4 |
| Maximum Resolution | 12288x6912 |
| 2D/3D Features | AMD Radeon Media Engine AMD Radeon VR Ready Creator AMD Radeon ProRender AMD Infinity Cache AMD RDNA 3 Architecture AMD Viewport Boost AMD Software: PRO Edition |
| API Supports | OpenCL 2.1 DirectX 12.0 OpenGL 4.6 Vulkan 1.3 |
| Fill Rate (textures) | 441.6 GB/s |
| Fill Rate (pixels) | 220.8 GP/s |
| Video Memory Type | Video Controller Memory |
| Memory Type | GDDR6 SDRAM |
| Installed Video Memory Storage Capacity | 1 x 16 GB |
| Video Memory Speed | 18 Gbps |
| Memory Bus Bandwidth | 1 x 256 bit |
| Memory Bandwidth | 1 x 576 GB/s |
| DisplayPort Interface Quantity | 4 |
| External Power | 8 pin |
| PSU Output Power Required | 650 W |
| Cooling System Type | VGA Cooler |
| Card Slot Width | 2 slot |
| Power Consumption Operational | 190 W |
| Depth (mm) | 241 mm |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 mēneši |
| Warranty validation Criteria | Serial Number |
| Pack Weight Brutto (kg) | 1.3 kg |
| Pack Weight Netto (kg) | 0.45 kg |
| Pieces in pack | 1 |
| Box Weight Brutto (kg) | 7 kg |
| Retail Packaging Net Weight Carton | 0.35 kg |
| Retail Packaging Net Weight Plastic | 0.1 kg |
| Packs in Box | 5 |
| Package Type | Retail |
| EAN Code | 727419314992 |
| Description |

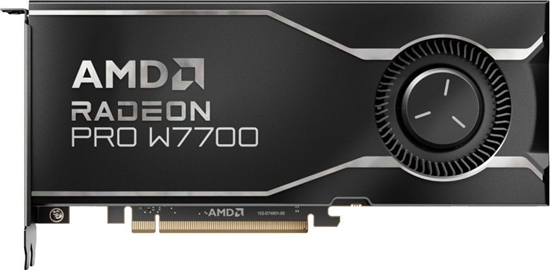

| AMD Radeon PRO W7700 16GB GDDR6 256bit, 56.54TFLOPS, 18Gbps, 4x DP 2.1, Blower |
